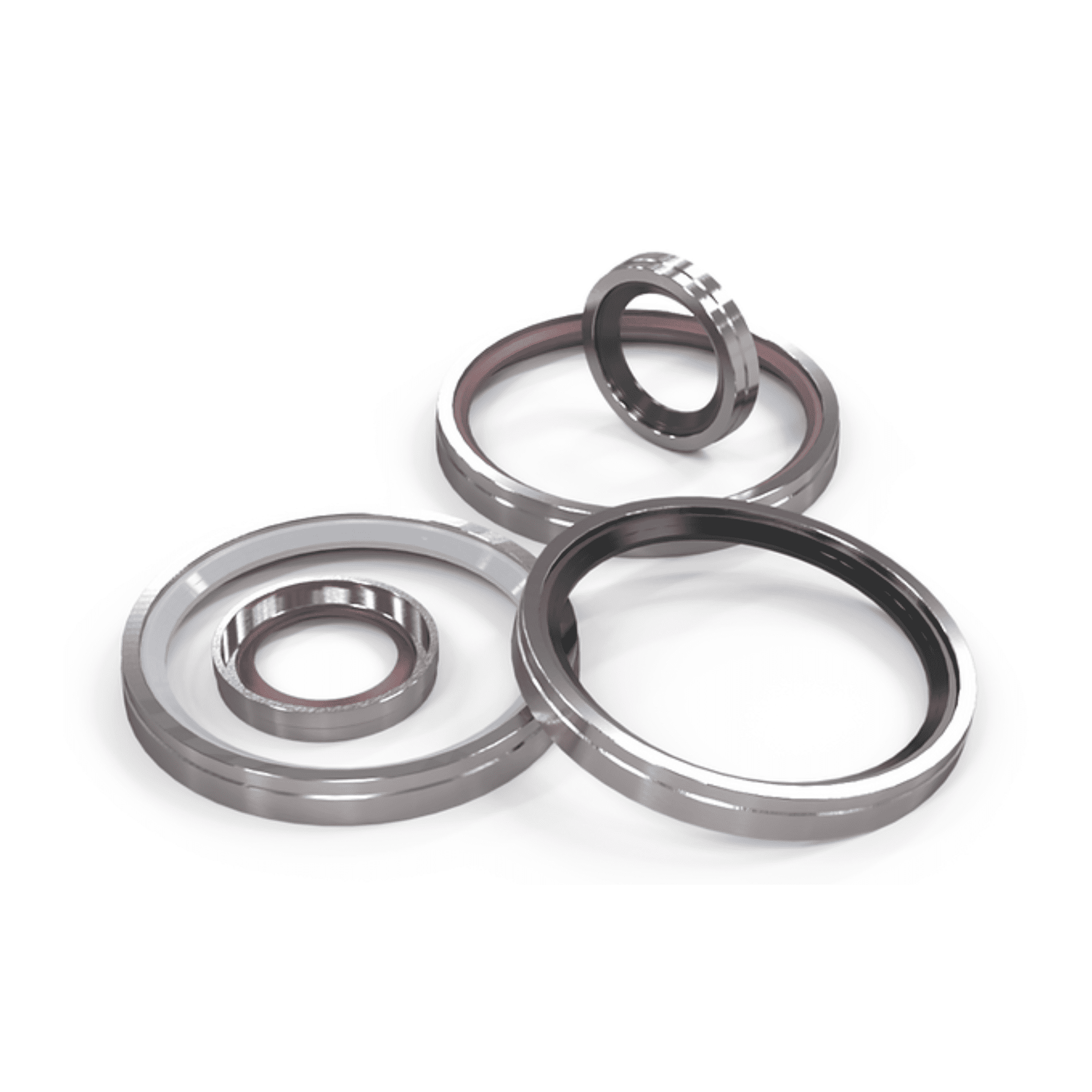

PTFE LIP Seals LS10

PTFE LIP Seals LS10

Enquire Now

The PTFE LIP Seals LS10 by Orbit Fluid Solutions LLP are advanced sealing solutions designed for applications requiring exceptional durability, chemical resistance, and performance under extreme operating conditions. With a focus on reliability, these seals provide unmatched performance in aggressive environments where traditional elastomeric seals cannot withstand the challenges of high temperatures, pressures, and dry running.

Add to quote
Category:

Description

Key Features

  1. High Chemical Resistance: Suitable for highly corrosive environments.
  2. Wide Operating Temperature Range: -70°C to +250°C (-95°F to +480°F).
  3. High Speed Capability: Withstands speeds up to 30 m/s (5,900 ft/min).
  4. Pressure Tolerance: Withstands pressures up to 3.5 MPa (500 psi).
  5. Dry Running Capability: Maintains efficiency without lubrication.
  6. Customizable Designs: Available in metal-cased and non-metal-cased variants for diverse applications.
  7. FDA-Approved PTFE Compounds: Ensures compliance with food and pharmaceutical industry standards.

Material Selection

  • PTFE Materials:
    • Unfilled PTFE: Low coefficient of friction and minimal wear on counterfaces, suitable for applications requiring reduced resistance.
    • Filled PTFE: Enhanced resistance to wear and deformation, with fillers like glass fiber, carbon, graphite, molybdenum disulfide, and polymers.
  • Metal Casing Options:
    • Steel, aluminum, or stainless steel (SS 304, SS 316, SS 316 TI).
  • O-Ring Material: Selected to suit specific operating conditions, with options for food-grade applications for easy cleaning and disassembly.

Installation Guidance

Due to the non-elastic nature of PTFE lips, careful installation is crucial to prevent damage:

  1. Use installation tools like plastic or metal cones to protect PTFE lips during assembly.
  2. Cover sharp edges, keyways, or splines on shafts with tape or specialized tools to avoid damage.
  3. Ensure smooth shaft surfaces with burr-free radii or chamfers for optimal seal performance.
  4. For seals with dual PTFE lips facing opposite directions, use an installation cone for easier assembly.

Size Range and Availability

  • Shaft Diameter: 6 to 200 mm (0.250 to 8 inches).
  • Bore Diameter: 16 to 230 mm (0.630 to 9 inches).
  • Custom Solutions: Tailored designs and sizes are available to meet unique application demands.

Industries Served

The PTFE LIP Seals LS10 are ideal for industries requiring robust sealing solutions:

  • Biofuels: Handles chemically aggressive and high-temperature environments.
  • Chemical: Ensures reliability in harsh and corrosive chemical applications.
  • Food & Beverage: FDA-approved materials suitable for hygienic processing and easy cleaning.
  • Oil & Gas: Withstands high pressures and temperatures in critical applications.
  • Pharmaceutical: Provides exceptional sealing for sterile and cleanroom environments.

The PTFE LIP Seals LS10 by Orbit Fluid Solutions LLP offer unmatched sealing performance and versatility for demanding applications. With customizable designs, industry-specific material options, and precision engineering, these seals provide a reliable solution for optimizing operational efficiency in challenging conditions.

Contact Orbit Fluid Solutions LLP today for tailored PTFE LIP seal solutions that meet your application needs!
