Description
Key Specifications
- Volume: 9 liters
- Cooling Coil Volume: 0.5 liters
- Operating Pressure: Up to 15 bars
- Operating Temperature: -60°C to +200°C (-29°C to +160°C with specific configurations)
- Working Volume (MAX-MIN): 1.8 liters
- Cooling Capacity:
- Natural Circulation: 1.5 kW
- Forced Circulation: 4 kW
- Required Cooling Water Rate: 0.4 m³/h
- Metal Components: Stainless Steel 1.4571
- Sight-Glass Material: Borosilicate
- Seal Material: Viton

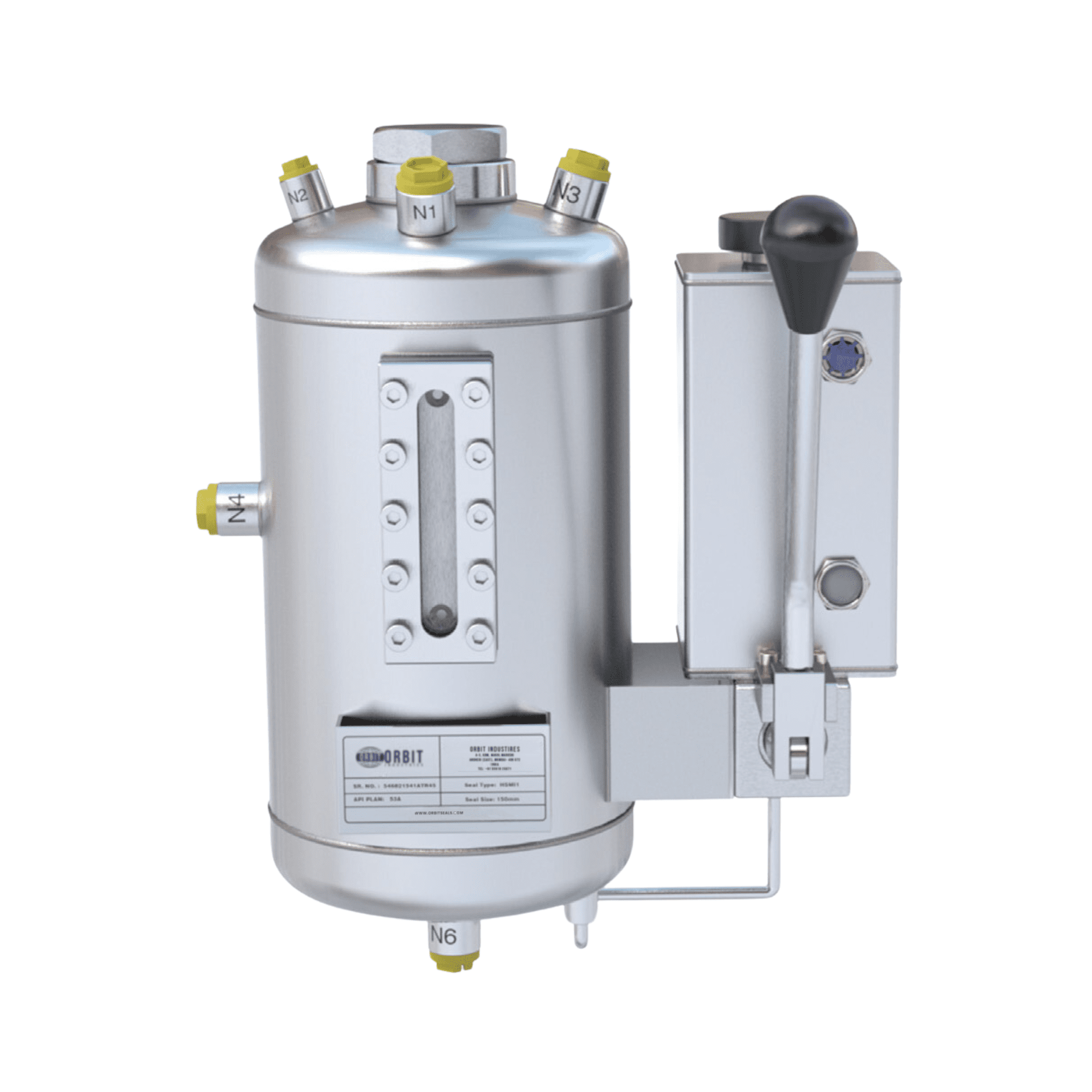

Thermosyphon Vessel Design
The TS700 thermosyphon vessel features:
- Pressure Vessel Construction: Tori spherical heads and a sight-glass for easy level monitoring.
- Incorporated Cooling Coil: Ensures efficient cooling for enhanced system performance.
- Threaded Connections: Built to ISO 228 standards for universal compatibility.
- DIN 28162 Assembly Holes: Designed for streamlined installation.
- Weight: Approx. 15.5 kg for robust yet manageable operation.
| PART | DESCRIPTION | Connection(Size) |
| 1 | Buffer Fluid IN | 1/2″BSP |
| 2 | Buffer Fluid OUT | 1/2″BSP |
| 3 | Cooling Coil Water IN | 1/2“ BSP |
| 4 | Cooling Water Out | 1/2″BSP |
| 5 | Connection for Level Switch | 1.1/2“ BSP |
| 6 | Pressure Gauge Connection | 3/8″ BSP |
| 7 | Filling Connection with Plug | 1/2″ BSP |
| 8 | Connection for Refill Unit | 1/8″ BSP |
| 9 | Universal Connection | 1/2“ BSP |
| 10 | Bracket for Refill Unit | |
| 11 | Sight Glass | |
| 12 | Bracket for Name Plate | |
| 13 | Mounting Plates |
Optional Hand Refill Unit
For enhanced convenience, the Hand Refill Unit allows manual refilling during operation to compensate for buffer fluid losses.
- Features a storage vessel with a level indicator, filler neck, and a manual hand pump.
- Can be mounted directly on the thermosyphon vessel or a pressure booster for seamless integration.
Industries Served
The Thermosyphon System TS700 is versatile and suitable for the following industries:
- Biofuels: Reliable temperature and pressure management for renewable energy applications.
- Chemical: Ideal for handling aggressive chemicals and high-pressure processes.
- Food & Beverage: Ensures compliance with strict operational and hygienic standards.
- Oil & Gas: Robust performance for sealing in demanding upstream and downstream operations.
- Pulp & Paper: Optimized for high-temperature pulp processing environments.
- Sugar Industries: Efficient sealing in high-pressure sugar production processes.
- Cement Plants: Durable and reliable in challenging cement plant applications.
- Petrochemicals: Resilient performance in corrosive and high-temperature conditions.
- Pharmaceutical: Precise control for stringent pharmaceutical manufacturing standards.
- Marine: Reliable sealing solutions for offshore and marine environments.
Features and Benefits
- Exceptional Cooling Performance: Offers both natural (1.5 kW) and forced circulation (4 kW) cooling options for diverse operational needs.
- Wide Operating Range: Withstands extreme temperatures (-60°C to +200°C) and high pressures (up to 15 bars).
- Robust Construction: Stainless steel components (1.4571) ensure durability and resistance to corrosion.
- Convenient Monitoring: Borosilicate sight-glass for real-time level and performance assessment.
- Optional Refill Pump: Allows uninterrupted operation by refilling buffer fluid efficiently.
- Compact and Efficient Design: Compact vessel with integrated cooling coil reduces installation footprint and maximizes cooling efficiency.
The Thermosyphon System TS700 by Orbit Fluid Solutions LLP is the ultimate seal support solution, designed to deliver unmatched reliability and performance across a broad range of industries. Its advanced engineering ensures long-term efficiency and cost-effectiveness, making it a trusted choice for maintaining mechanical seal systems in challenging environments.
