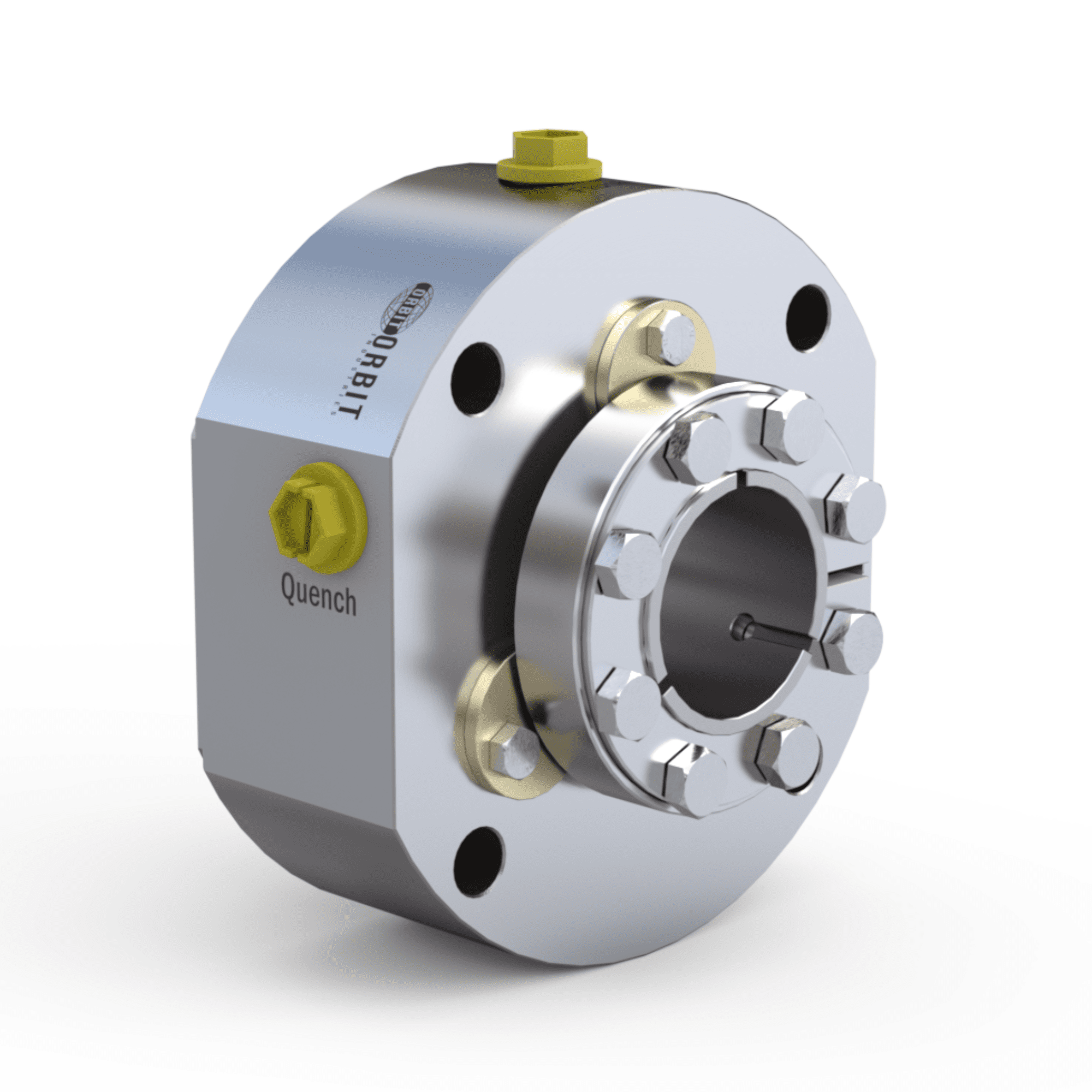

API 682 Single Seal 806BC

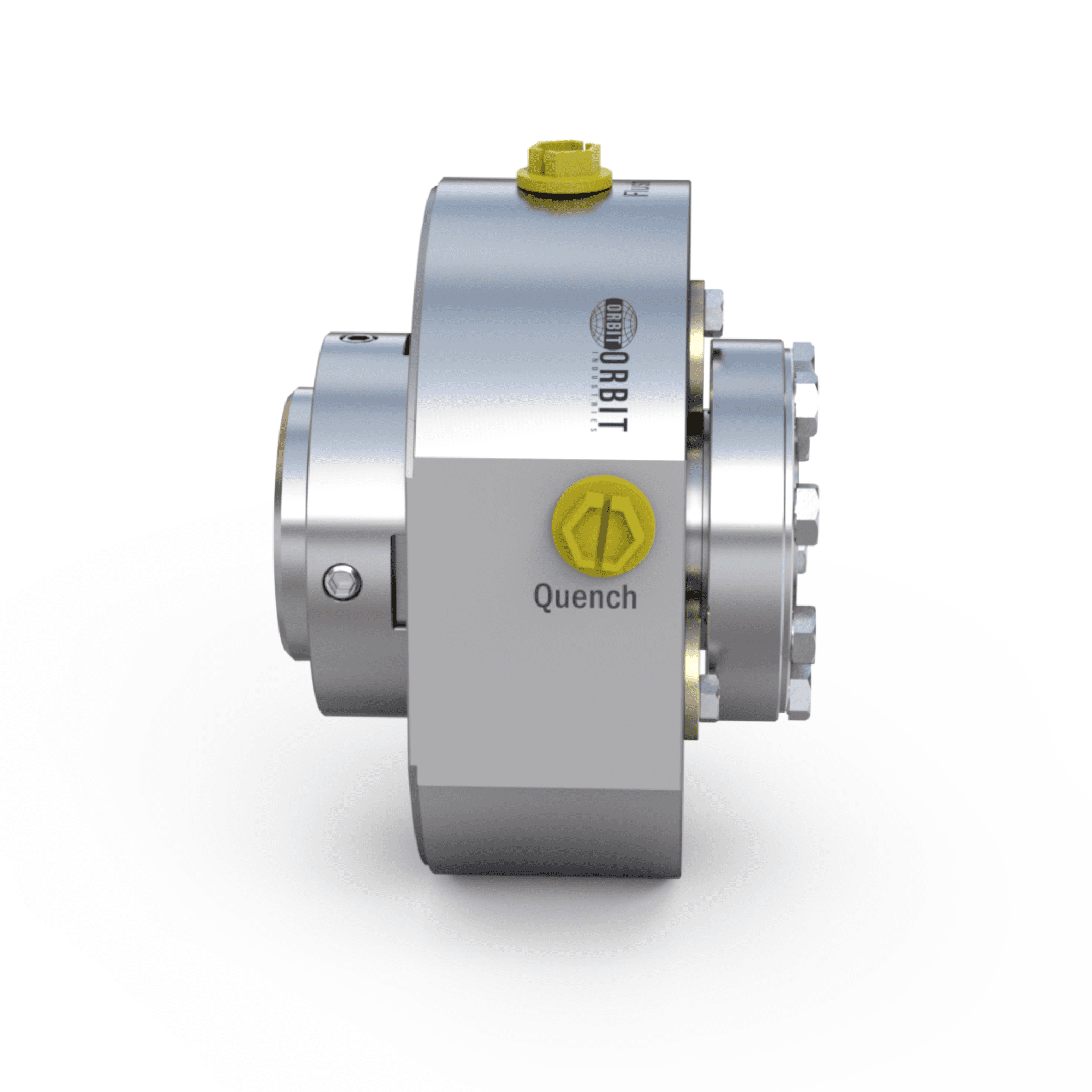

API 682 Single Seal 806BC - Image 2

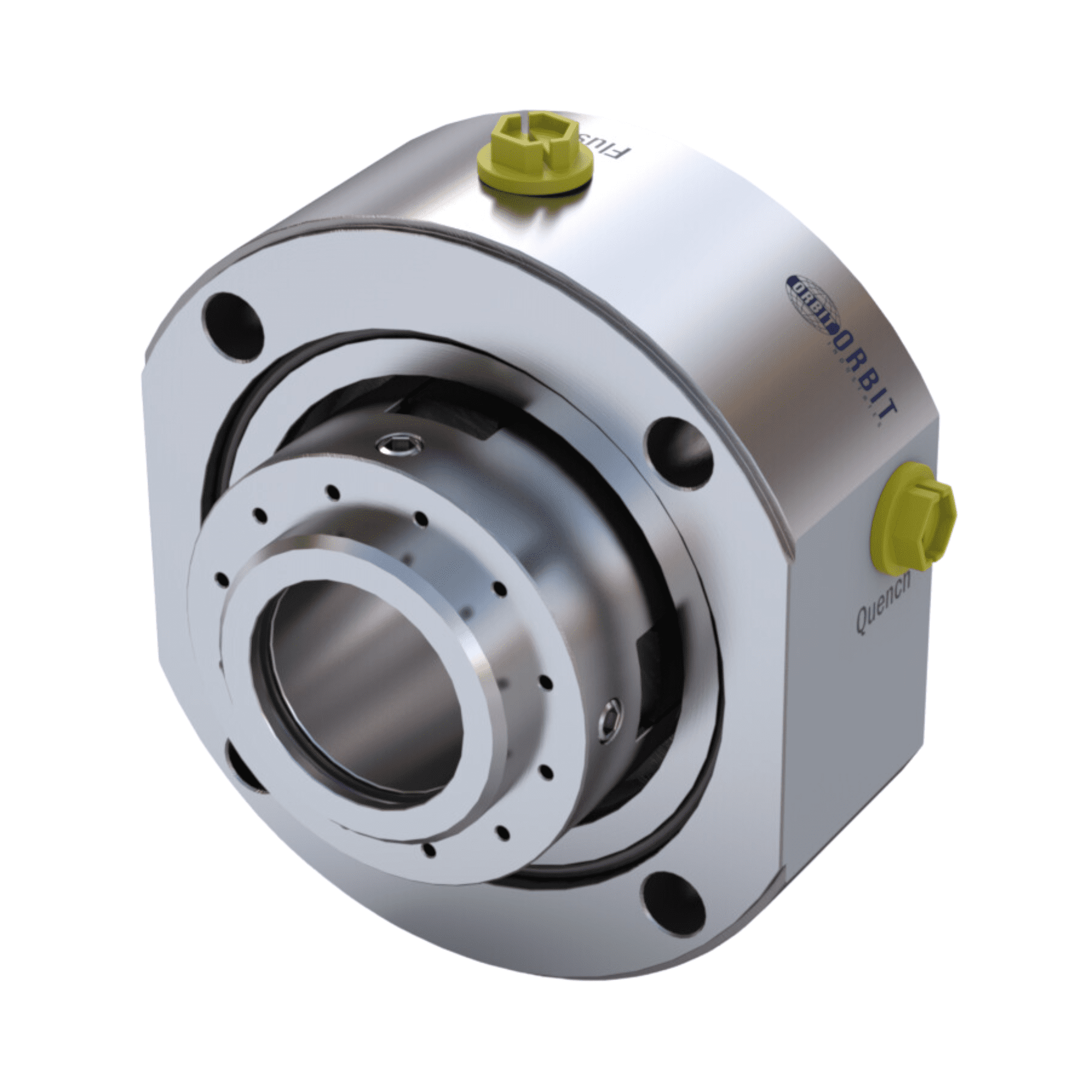

API 682 Single Seal 806BC - Image 3

API 682 Single Seal 806BC

Enquire Now

Orbit Fluid Solution LLP proudly introduces the API 682 Single Seal – Model 806BC, a pinnacle of engineering excellence tailored for high-pressure and high-speed industrial applications. Designed in strict adherence to the API 682 standard, this seal represents unmatched precision, reliability, and performance in demanding environments. With a focus on durability, operational efficiency, and minimal maintenance, the 806BC Single Seal is ideal for pumps and rotating equipment across industries such as oil and gas, petrochemicals, and chemical processing.

Add to quote
Category:

Description

Key Features

  • Precision Engineered: Compliant with API 610 and customizable to meet international standards such as NACE MR-01-075.
  • Robust Design: Features a stationary multi-spring system for superior stability under high pressure and extreme speeds.
  • Axially Compact: Perfect for pumps with close bearing centers, ensuring compatibility with a variety of equipment.
  • Advanced Seal Rings: Optimized through Finite Element Analysis (FEA) for consistent performance under challenging conditions.
  • Enhanced Durability: Hard-faced seal ring carrier and anti-extrusion rings made from PTFE/PEEK for extended life.

Performance Capabilities

  • Temperature Range: -40°C to 315°C (-40°F to 600°F)
  • Pressure Handling: Vacuum to 175 bar g (2540 psig)
  • Speed: Up to 55 m/s (11,000 fpm)

Materials of Construction

  • Seal Faces: Carbon/SiC
  • Metal Components: SS-316, Alloy-20, or Hastelloy-C for superior corrosion resistance
  • Secondary Seals: PTFE/PEEK

Applications and Fluids

  • Fluids: Hydrocarbons, sour gas, crude oil, boiler feed water, propane, butane, and more.
  • Applications:
    • Offshore platforms and pipelines
    • Injection and power generation systems
    • Refining and petrochemical processes

Industries Served

  1. Automotive: Ensures robust sealing for high-speed systems.
  2. Biofuels: Provides reliable performance in renewable energy operations.
  3. Food & Beverage: Supports hygienic and contamination-free processes.
  4. Mining & Minerals: Operates seamlessly in abrasive and high-load environments.
  5. Oil & Gas: Delivers outstanding performance in extreme conditions.
  6. Power Generation: Reliable for turbines and boiler systems.
  7. Pulp & Paper: Designed to handle viscous and slurry-based applications.
  8. Sugar Industries: Ensures optimal performance in corrosive environments.
  9. Cement Plants: Resilient to dust and vibration.
  10. Petrochemicals: Ensures safe and efficient operation in reactors and pipelines.
  11. Pharmaceutical: Maintains precision in sterile environments.

Seal Diagram

Dimensional Data



Design Innovations

  • Standard Multi-Point Injection: For optimal cooling and performance in dirty or challenging products.
  • Anti-Rotation Features: Prevents misalignment during high-speed operations.
  • Customizable Arrangements: Available in single, double, tandem, and dry tandem configurations.

Why Choose the Model 806BC?

  • API 682 Compliance: Industry-standard reliability and durability.
  • Custom Solutions: Configurations tailored to your system requirements.
  • Global Expertise: Trusted by industries worldwide for top-tier mechanical seals.
  • Sustainability Focus: Reduces energy and maintenance costs while ensuring eco-friendly operations.
  • Comprehensive Support: End-to-end assistance, from installation to maintenance.
Elevate your industrial sealing solutions with Orbit’s API 682 Single Seal – Model 806BC. Let us help you achieve greater efficiency, reliability, and peace of mind.
