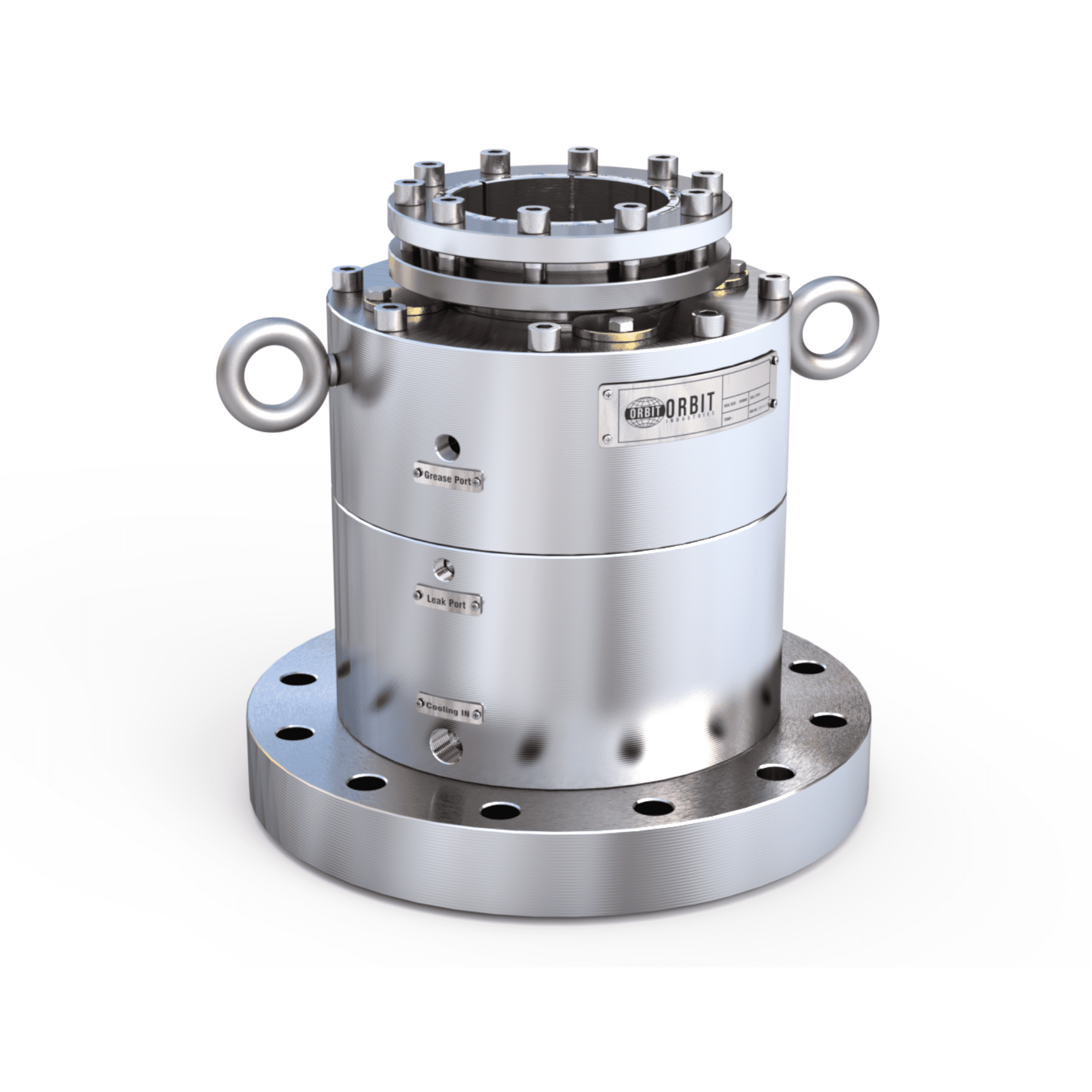

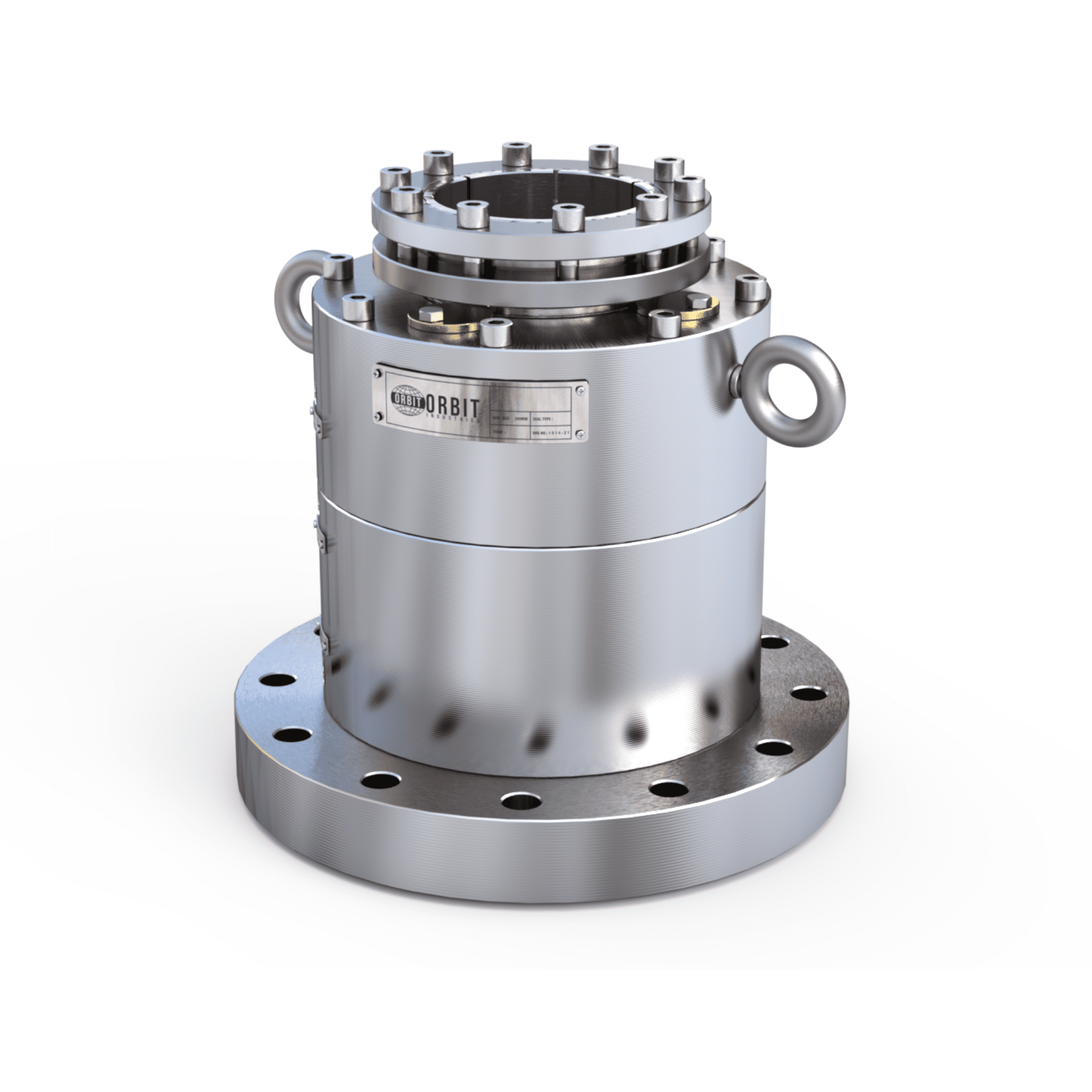

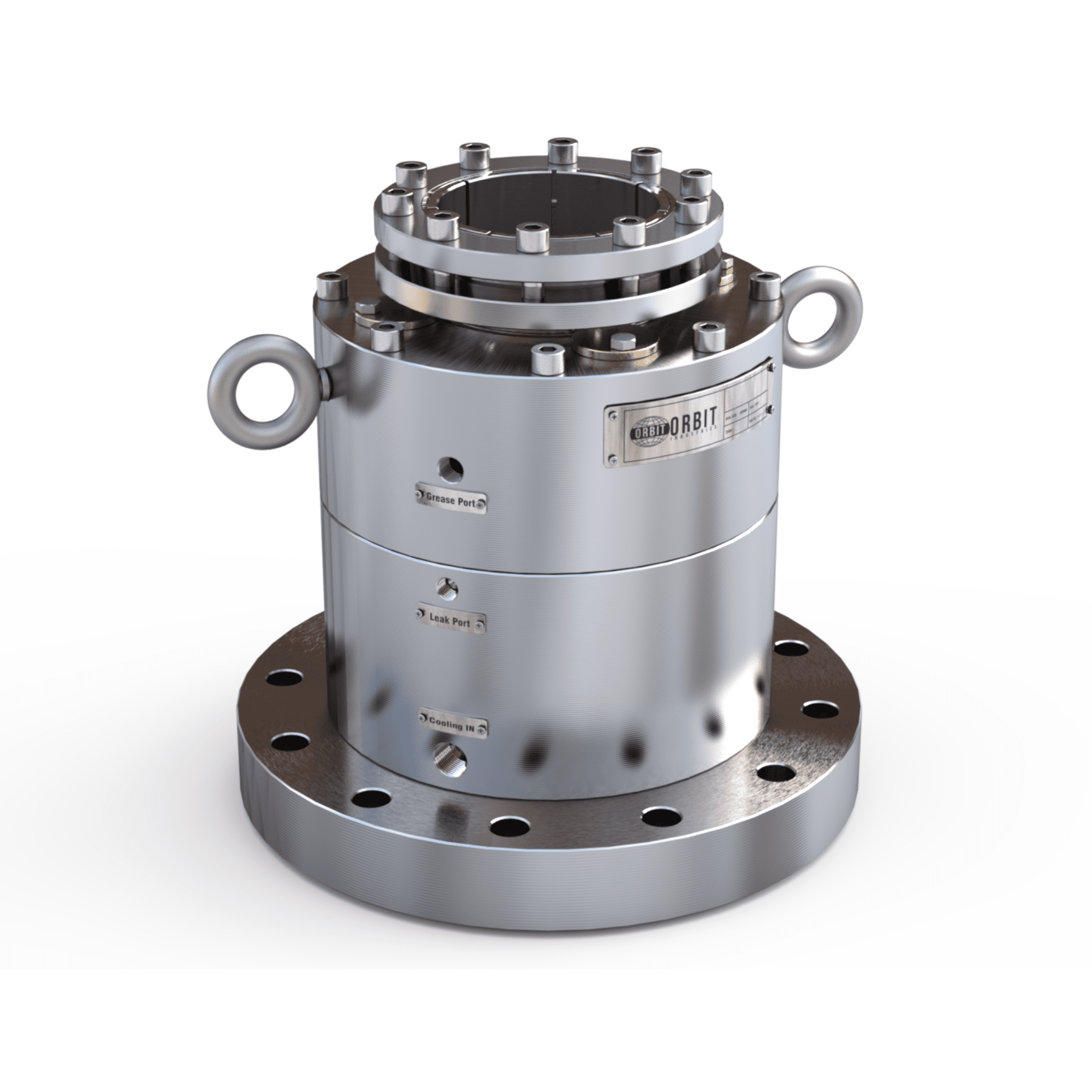

Description
Applications
The 2-806B-T High-Pressure Autoclave Seal is ideal for:
- Top-entry steel and stainless-steel vessels
- Side-entry shafts for high-pressure mixers and autoclaves
- Glass-lined vessels for sterile and sensitive processes
Industries Served
This seal caters to diverse industries, including:
- Biofuels: Ensures safety and reliability in renewable energy production.
- Chemical: Handles aggressive and reactive environments with ease.
- Food & Beverage: Provides contamination-free sealing for hygienic processes.
- Marine: Designed for robust performance in maritime environments.
- Oil & Gas: Excels in high-pressure, high-temperature operations.
- Pulp & Paper: Offers superior sealing for abrasive materials and high-speed mixing.
- Sugar Industries: Delivers efficiency in sugar processing under extreme conditions.
- Cement Plants: Withstands tough industrial demands.
- Petrochemicals: Ensures safety while handling volatile substances.
- Pharmaceutical: Meets stringent standards for sterile and precise applications.
Operating Parameters
- Shaft Diameter: 40 to 250 mm
- Pressure Range: Vacuum to 60 bar
- Temperature Range: -80°C to +250°C
- Speed: Up to 500 RPM
Seal Features
- Balanced Design: Engineered for consistent performance in high-pressure environments.
- Dry Running Capability: Seal face designed to excel in non-lubricated conditions.
- Vacuum Adaptability: Reverse balance seal ring ensures superior performance in vacuum conditions.
- Chemical Compatibility: Virgin PTFE-wrapped O-rings compatible with a wide range of chemicals.
- Factory-Assembled Cartridge Unit: Pre-tested for easy installation and immediate use.
- High Pressure Resistance: Built to perform reliably under extreme pressures up to 60 bar.
Materials of Construction
- Seal Faces: Carbon, Silicon Carbide (SiC), Tungsten Carbide (TC)
- Secondary Seals: Virgin PTFE O-rings (Double & Single Wrapped)
- Metal Components: SS-316, Hastelloy-C

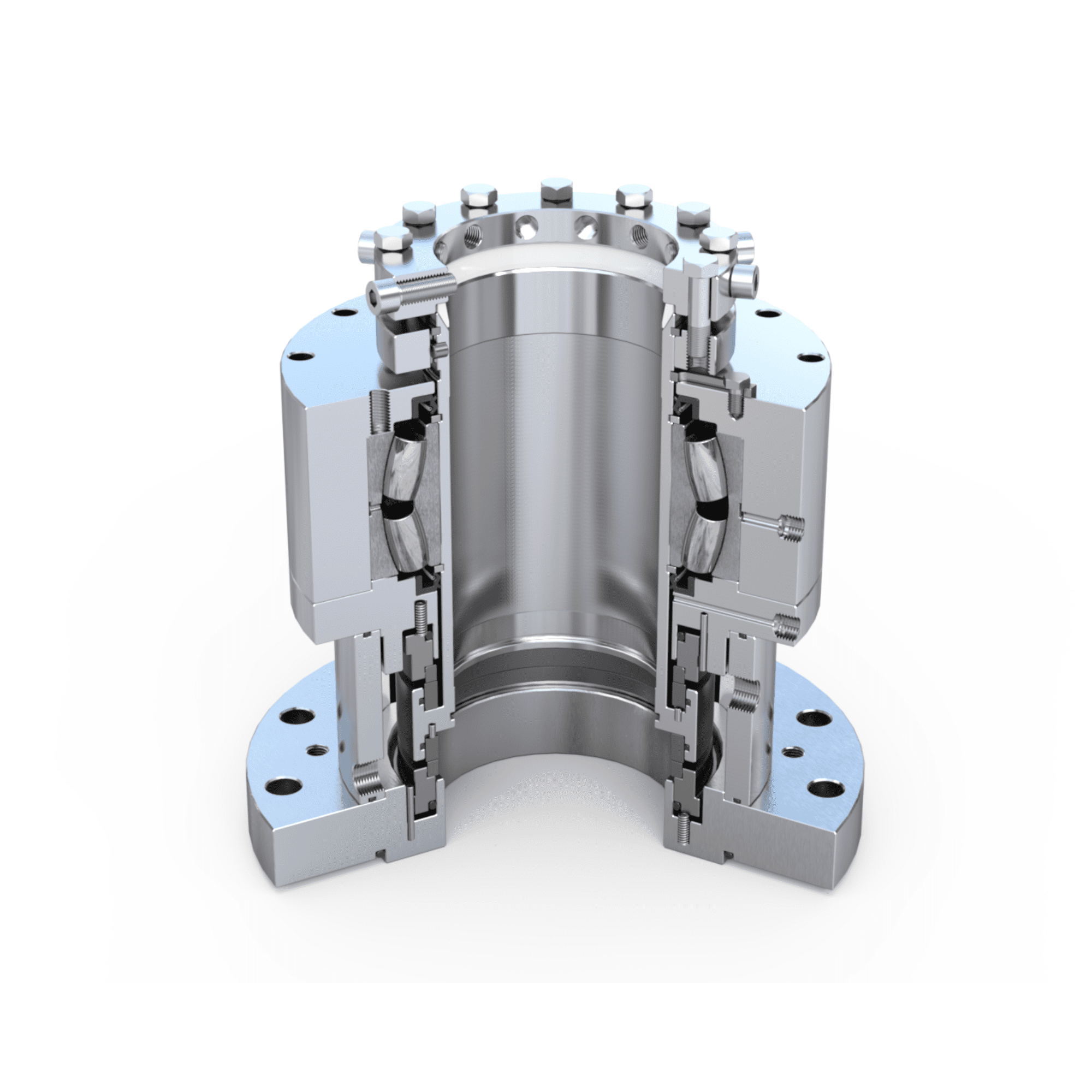

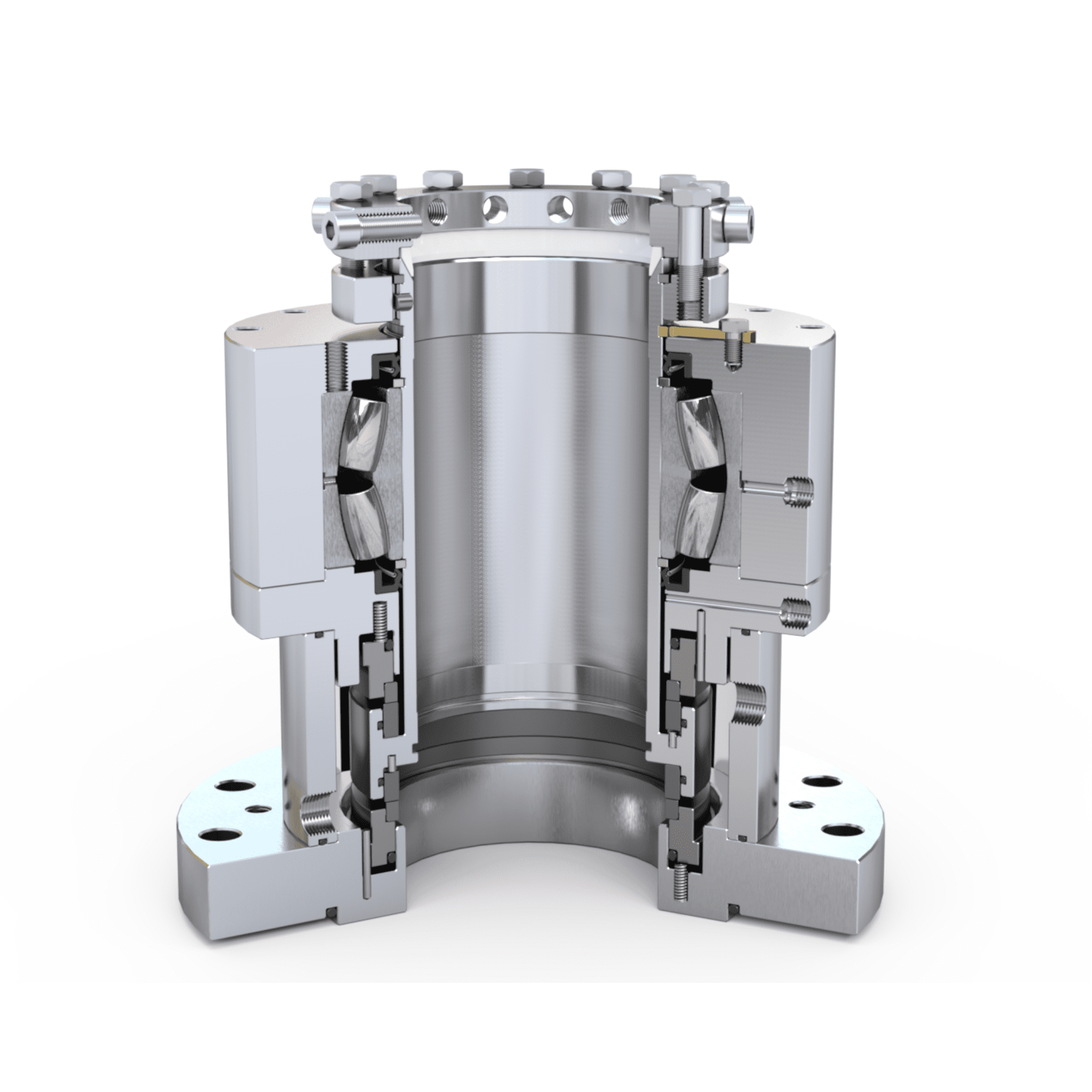

Seal Diagram
Dimensional Data
Dimensional Data Metrics| D1 | D2 | D3 | D4 | n | L1 | L2 | L3 | |
|---|---|---|---|---|---|---|---|---|
| 40 | 110 | 145 | 175 | 4x18 | 130 | 179 | 15 | |
| 50 | 176 | 210 | 240 | 8x18 | 134 | 194 | 17 | |
| 60 | 176 | 210 | 240 | 8x18 | 138.5 | 201 | 17 | |
| 80 | 204 | 240 | 275 | 8x22 | 158.5 | 243 | 20 | |
| 100 | 234 | 270 | 305 | 8x22 | 163 | 244 | 20 | |
| 125 | 260 | 295 | 330 | 8x22 | 170 | 265 | 20 | |
| 140 | 313 | 350 | 395 | 12x22 | 184 | 282 | 20 | |
| 160 | 313 | 350 | 395 | 12x22 | 192.5 | 284.5 | 25 | |
| 180 | 364 | 400 | 445 | 12x22 | 202.5 | 300 | 25 | |
| 200 | 364 | 400 | 445 | 12x22 | 207.5 | 307.5 | 25 | |
| 220 | 422 | 460 | 505 | 16x22 | M20 |
Why Choose Orbit Fluid Solution LLP?
- Innovative Designs: Engineered for high-pressure, high-temperature applications.
- Global Expertise: Trusted by industries worldwide for superior sealing solutions.
- Custom Solutions Available: Specially tailored seals upon request.
