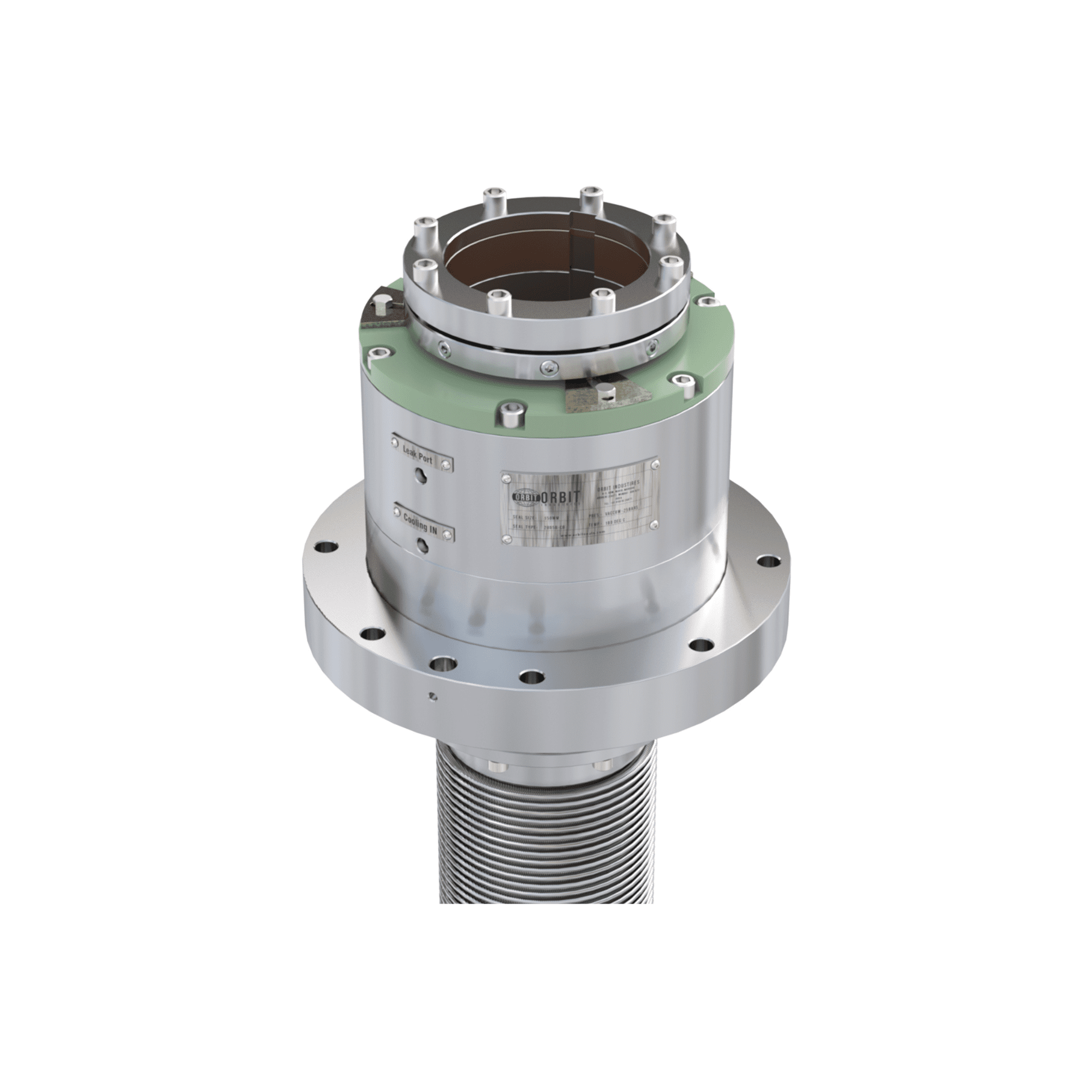

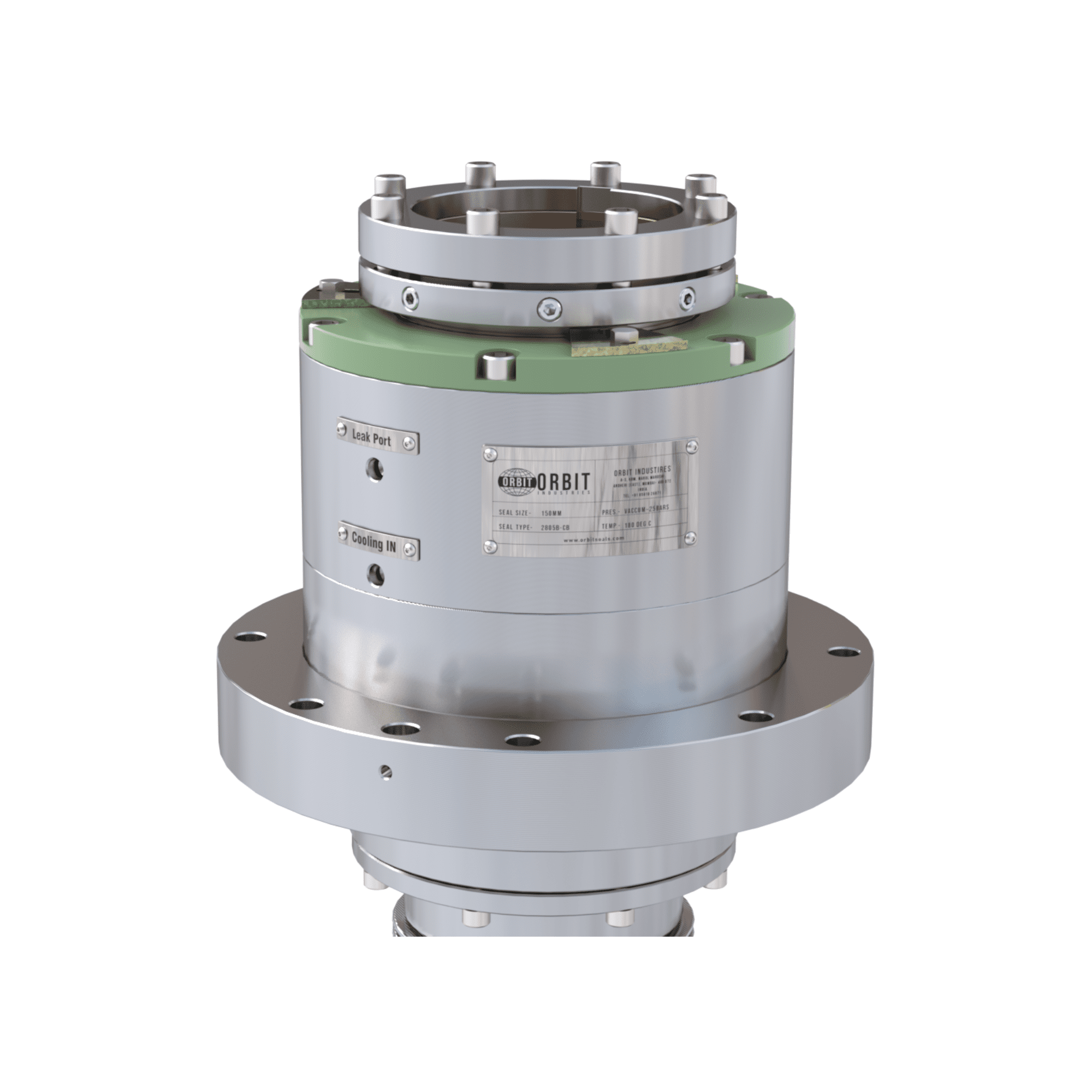

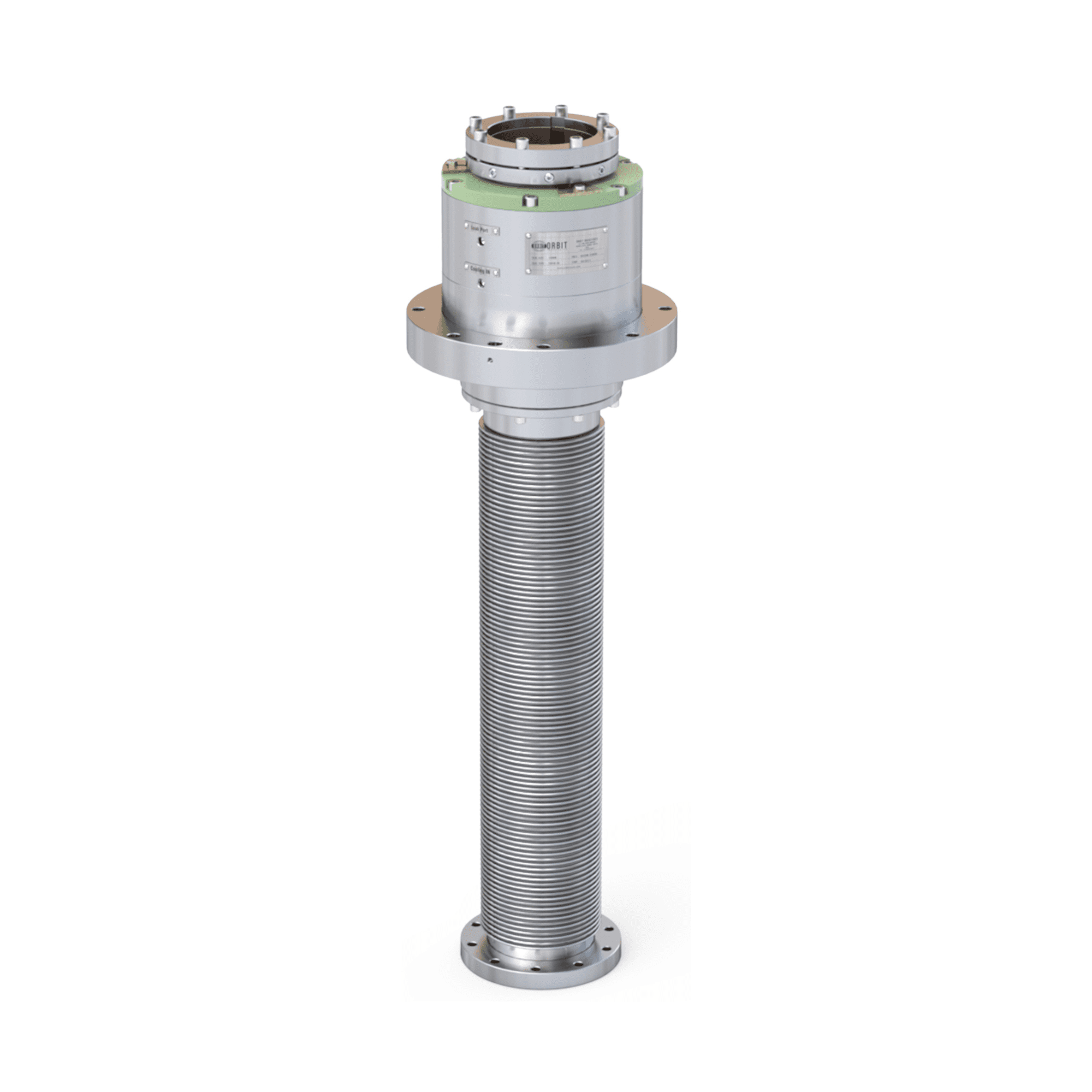

Description
Applications:
The Nutches Filter Dryer Seal is ideal for:
- Nutsche Filter Dryers
- Agitated vessels
- Mixers
- Reactors
Industries Served:
Our Nutches Filter Dryer Seal serves various industries, including:
- Pharmaceutical: Providing reliable sealing solutions for critical processes in pharmaceutical applications.
- Chemical: Offering durable and efficient sealing solutions for chemical processing equipment.
- Food & Beverage: Ensuring sanitary and reliable sealing solutions for food and beverage processing equipment.
- Biofuels: Providing sealing solutions for biofuel processing equipment, ensuring efficient and reliable operation.
- Oil & Gas: Offering high-performance sealing solutions for oil and gas processing equipment, withstanding demanding conditions.
- Pulp & Paper: Providing reliable sealing solutions for pulp and paper processing equipment, ensuring efficient operation.
- Sugar Industries: Ensuring sanitary and reliable sealing solutions for sugar processing equipment.
- Cement Plants: Offering durable and efficient sealing solutions for cement processing equipment.
- Petrochemicals: Providing high-performance sealing solutions for petrochemical processing equipment, withstanding demanding conditions.
- Marine: Ensuring reliable sealing solutions for marine applications, withstanding corrosive and demanding environments.
Operating Parameters:
- Shaft Diameter: 40 to 200mm
- Vessel Pressure: Vacuum to 15 bar
- Temperature: -20°C to +280°C
- Speed: Up to 500 min-1
Seal Diagram:
Dimensional Data:
Dimensional Data Metrics
| D1 | D2 | D3 | D4 | D5 | L1 | L2 |
|---|---|---|---|---|---|---|
| 20 | 52 | 117 | 140 | 118 | 157.5 | 30.5 |
| 25 | 58 | 124 | 150 | 128 | 167 | 30.5 |
| 30 | 62 | 134 | 165 | 138 | 174 | 30.5 |
| 35 | 68 | 140 | 175 | 148 | 174 | 30.5 |
| 40 | 75 | 146 | 175 | 148 | 180 | 34.5 |
| 45 | 83 | 150 | 175 | 148 | 180 | 34.5 |
| 50 | 90 | 170 | 195 | 168 | 190 | 34.5 |
| 55 | 95 | 175 | 205 | 178 | 200 | 34.5 |
| 60 | 100 | 180 | 205 | 178 | 200 | 34.5 |
| 65 | 110 | 190 | 220 | 188 | 210 | 40.5 |
| 70 | 115 | 195 | 230 | 198 | 210 | 40.5 |
| 75 | 120 | 200 | 230 | 198 | 216 | 40.5 |
| 80 | 130 | 210 | 240 | 208 | 225 | 45 |
| 85 | 135 | 215 | 250 | 218 | 230 | 45 |
| 90 | 140 | 230 | 260 | 228 | 245 | 45 |
| 95 | 145 | 235 | 270 | 238 | 245 | 45 |
| 100 | 150 | 240 | 270 | 238 | 260 | 45 |
| 110 | 180 | 180 | 220 | 245 | 192 | 45 |
| 120 | 172 | 265 | 230 | 268 | 210 | 50 |
| 130 | 185 | 275 | 240 | 280 | 270 | 50 |
| 140 | 195 | 290 | 250 | 290 | 270 | 50 |
| 150 | 205 | 300 | 260 | 290 | 270 | 50 |
Materials of Construction:
- Seal Face: Silicon Carbide (SiC)
- O-Ring: Virgin PTFE
- Seal Housing: Stainless Steel (SS316)
- Shaft Sleeve: Carbon Steel (CS) or Stainless Steel (SS316)
Key Features:
- Balanced for Optimal Performance: Engineered to provide superior sealing integrity in critical processes.
- Seal Face Design for Dry Running: Enables reliable operation in challenging environments.
- Unique Reverse Balance Seal Ring Design: Specifically designed for vacuum conditions, ensuring optimal performance.
- Vergin PTFE Wrapped O-Rings: Compatible with a wide range of chemicals, providing enhanced durability.
- Suitable for High Vacuum Applications: Reliable performance in demanding conditions.
- Cartridge Design: Easy to install and maintain, reducing downtime and costs.
Why Choose Orbit Fluid Solution LLP?
At Orbit Fluid Solution LLP, we pride ourselves on providing high-quality mechanical seals that meet the demanding needs of various industries. Our Nutches Filter Dryer Seal is designed to provide superior sealing integrity, reliability, and efficiency. By choosing Orbit, you can expect:
- Unparalleled Sealing Performance: Our seals are engineered to provide optimal containment and prevent leaks.
- Enhanced Reliability: Our seals are designed to operate reliably in demanding conditions, minimizing downtime and maintenance.
- Expert Technical Support: Our team of experts is available to provide technical support and guidance to ensure optimal seal performance.
- Customized Solutions: We offer customized seal solutions to meet specific application requirements.
- High-Quality Materials: We use only the highest-quality materials, ensuring durability and reliability.
- Competitive Pricing: We offer competitive pricing without compromising on quality or performance.
