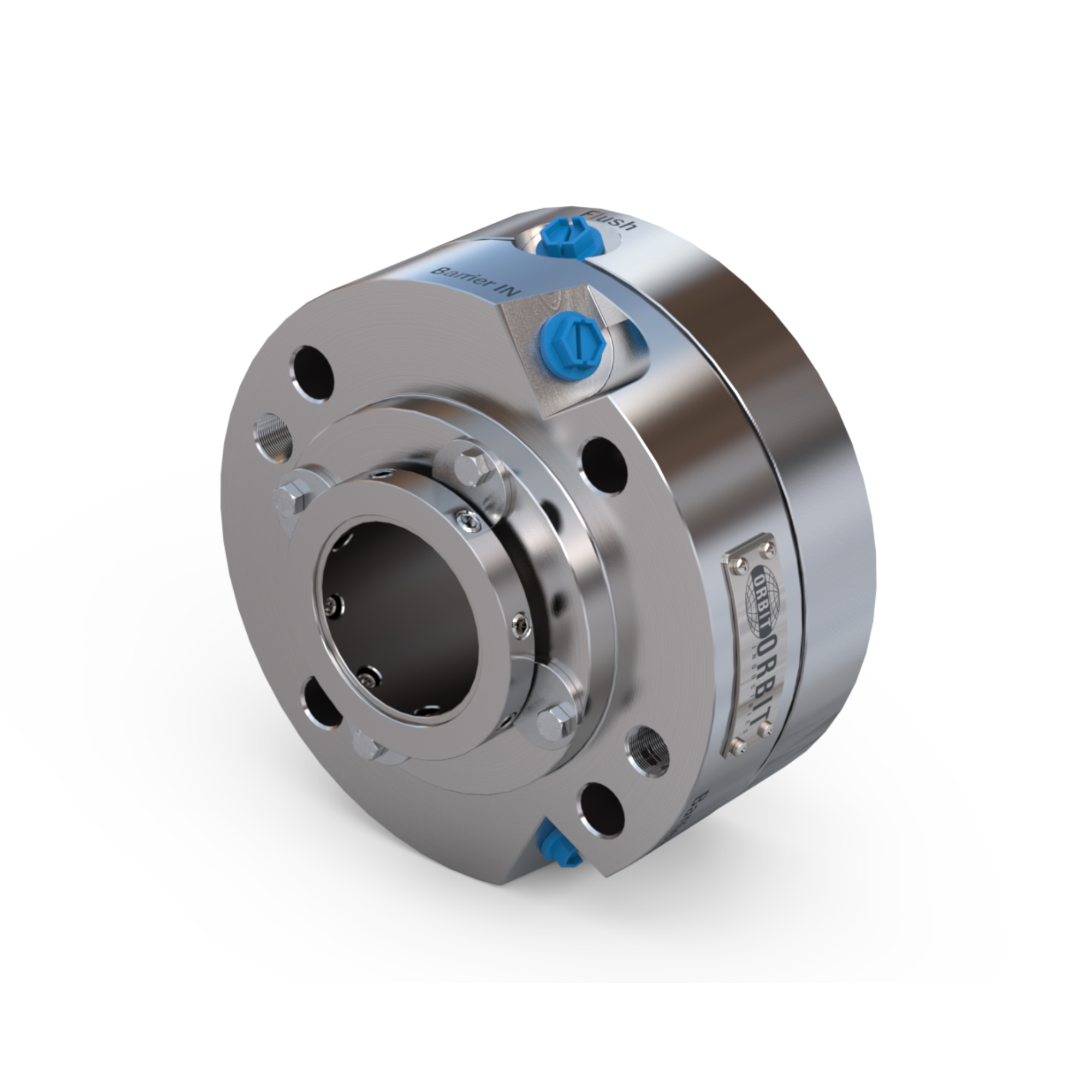

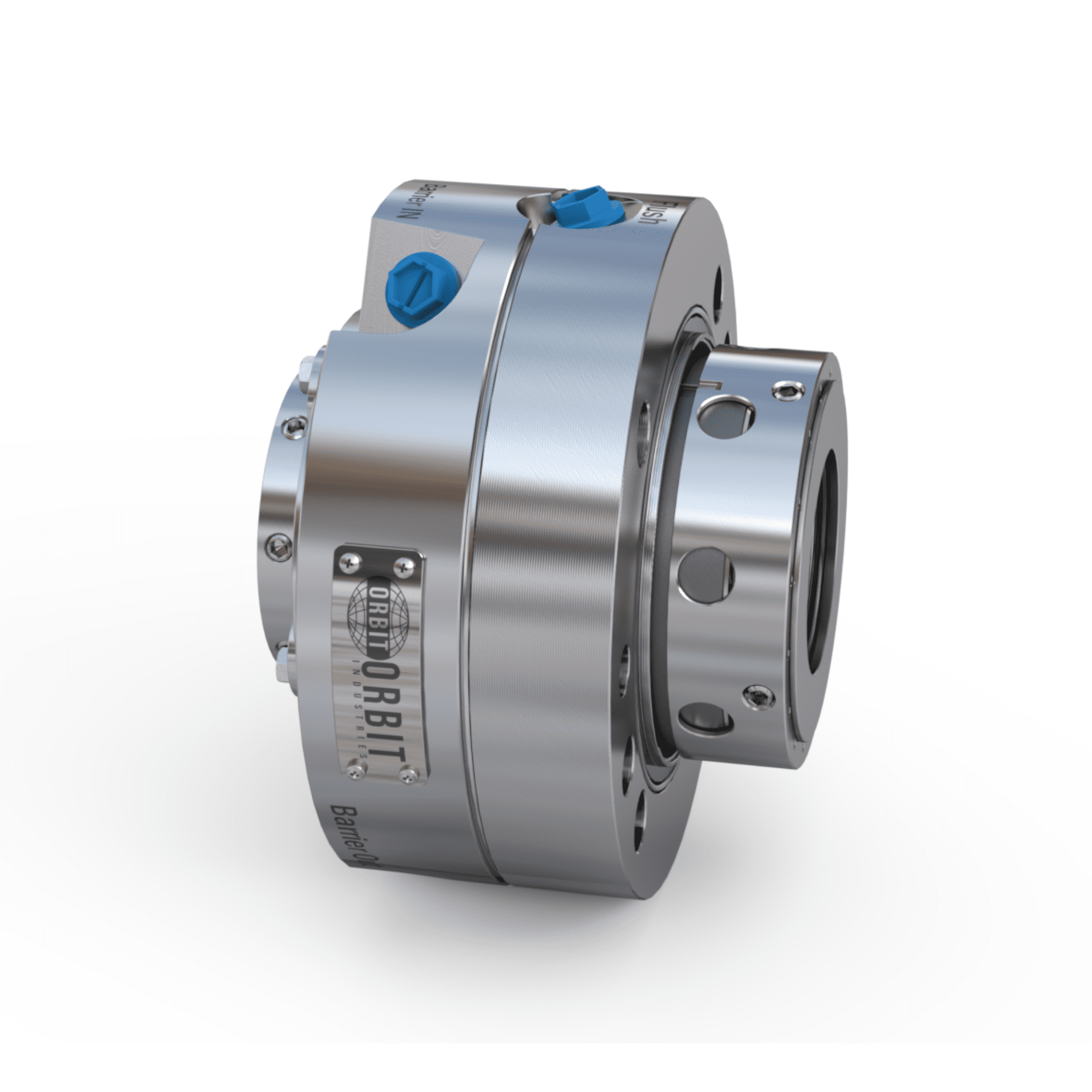

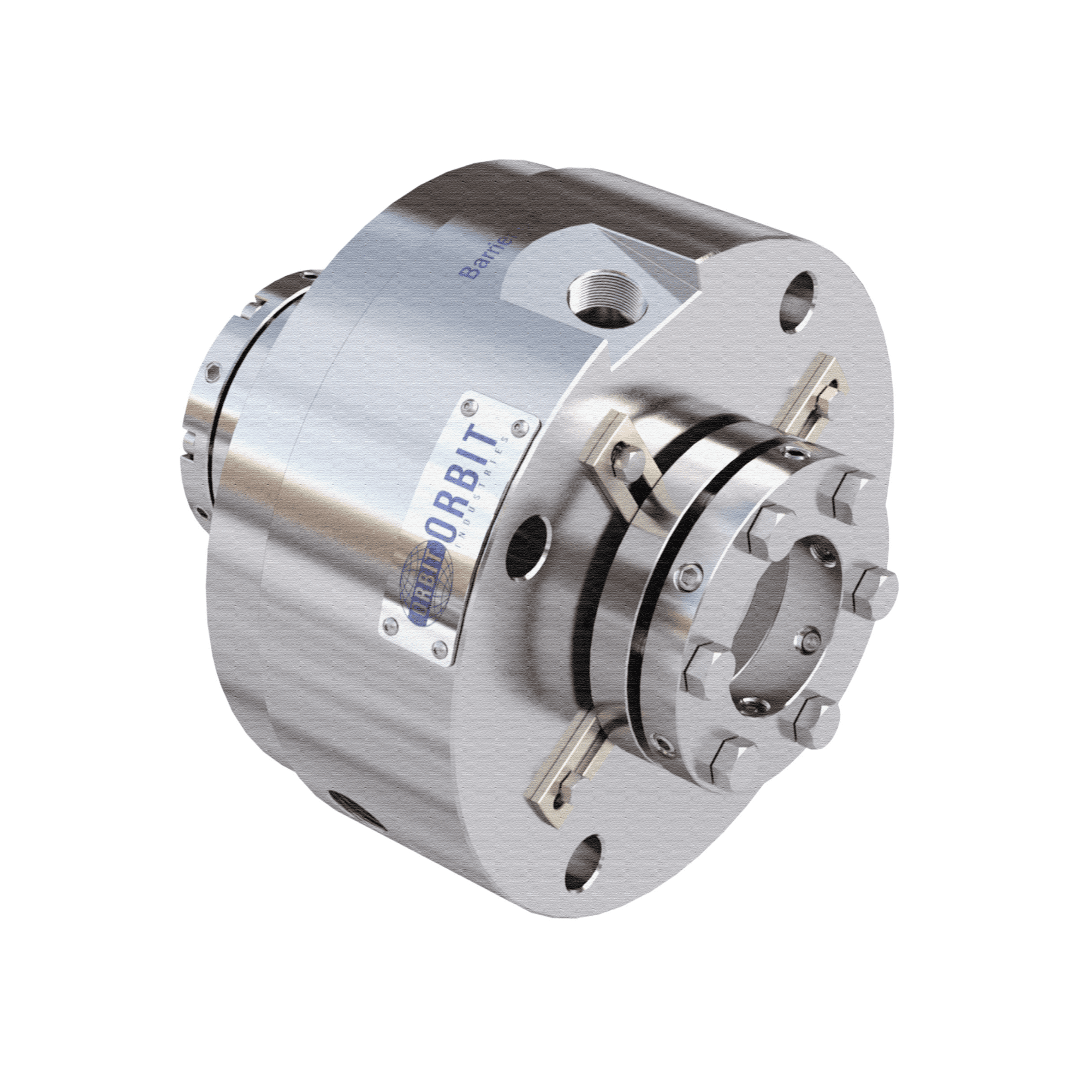

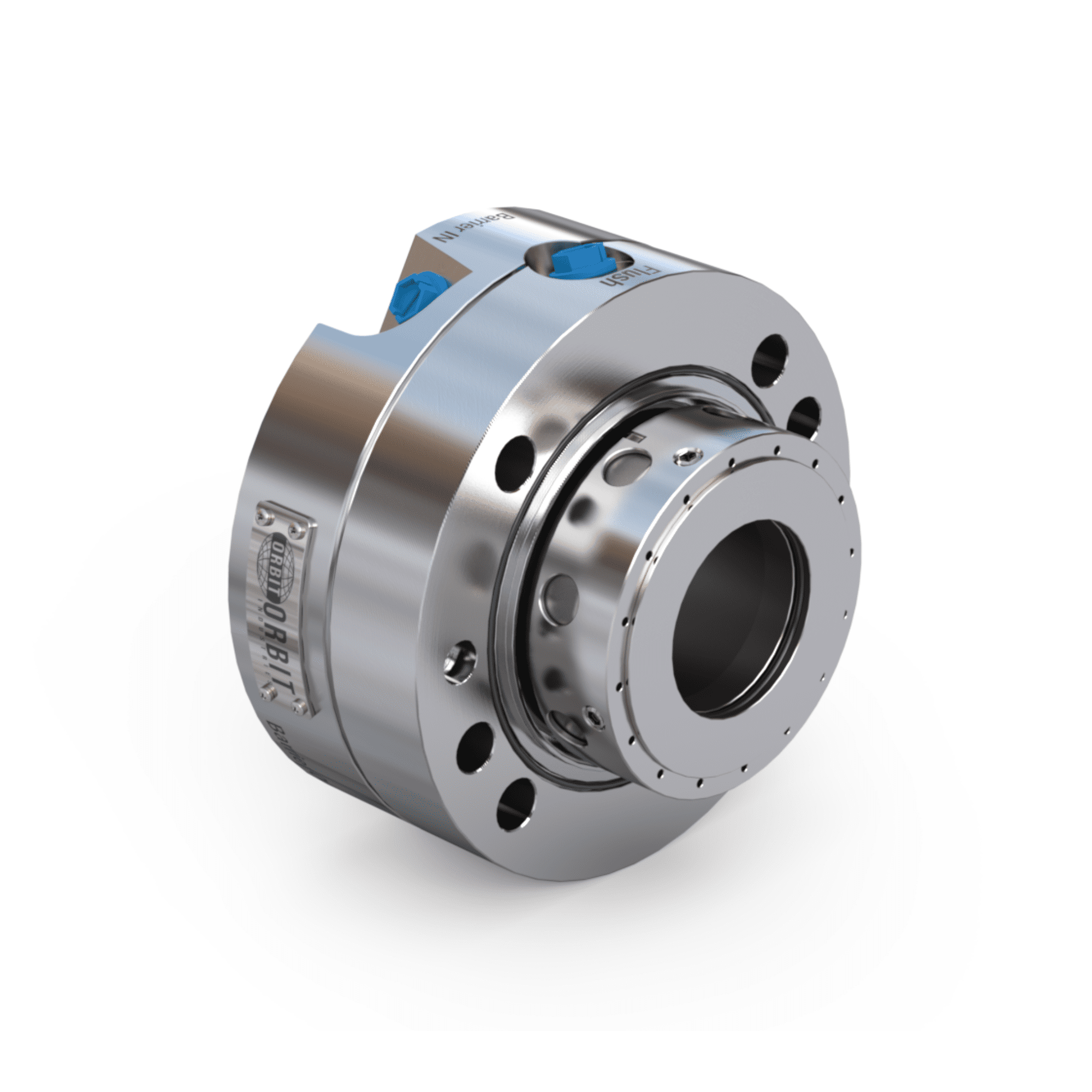

API Cartridge Seals 805B/805B

Enquire Now

The 805B/805B API Cartridge Mechanical Seals by Orbit Fluid Solution LLP are engineered to meet and exceed the demanding API (American Petroleum Institute) standards. Designed specifically for critical applications in industries like oil and gas, petrochemicals, and more, these double cartridge seals offer unmatched reliability, efficiency, and longevity. With robust construction and superior design, they ensure optimal performance even under extreme conditions. Whether used in pumps, compressors, or other high-performance equipment, these seals minimize leakage, maximize efficiency, and provide peace of mind for your operations.

Add to quote
Category:

Description

Key Features of 805B/805B API Cartridge Seals

  • API Compliant Design: Meets API 610 standards and aligns with other global standards like NACE MR-01-075.
  • High Pressure and Speed Capability: Operates seamlessly at up to 175 bar g (2540 psig) and speeds up to 55 m/s (11,000 fpm).
  • Extreme Temperature Performance: Handles temperatures ranging from -40°C to 315°C (-40°F to 600°F).

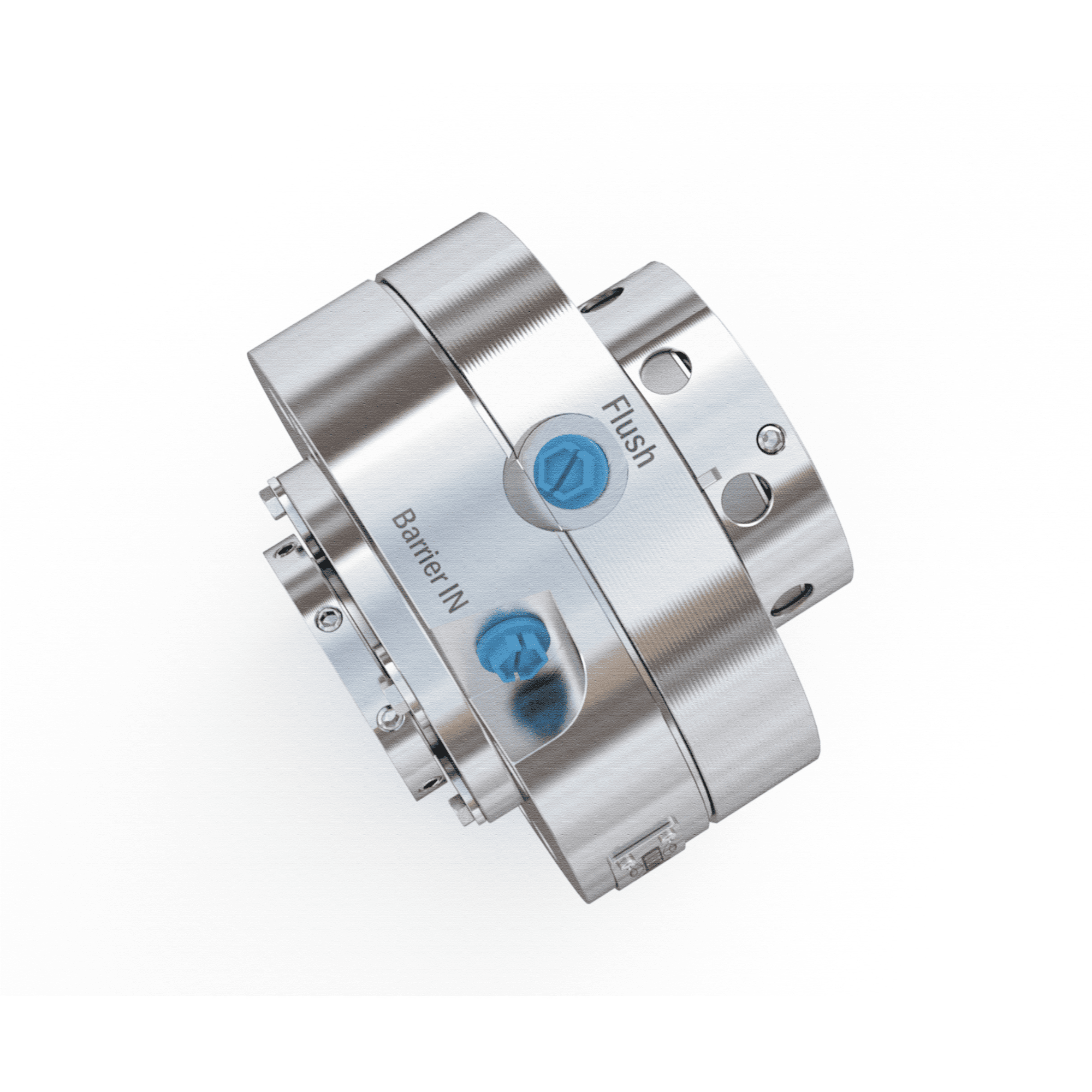

  • Multi-Point Injection System: Standard multi-point injection with optional through-spring flush for handling dirty fluids effectively.
  • FEA-Optimized Seal Rings: Ensures superior sealing efficiency and longevity.
  • Compact Axial Design: Fits pumps with close bearing centers, ideal for space-constrained setups.
  • Hard-Faced Seal Ring Carrier: Improves durability and extends operational life.
  • Anti-Rotation Mechanisms: Includes keys or pins for enhanced stability and performance.
  • PTFE/PEEK Anti-Extrusion Rings: Provides excellent resistance to wear and extrusion under high pressures.

Materials

  • Seal Faces: Carbon, Silicon Carbide, or Tungsten Carbide.
  • Secondary Seals: PTFE, PEEK, or Viton for superior chemical resistance.
  • Metal Components: Premium-grade SS-316, Hastelloy-C, or Alloy-20 for enhanced durability in harsh conditions.

Operating Parameters

  • Shaft Diameter Range: 25 mm to 150 mm (1″ to 6″).
  • Temperature Range: -40°C to 315°C (-40°F to 600°F).
  • Pressure Range: Vacuum to 175 bar g (2540 psig).
  • Speed Range: Up to 55 m/s (11,000 fpm).

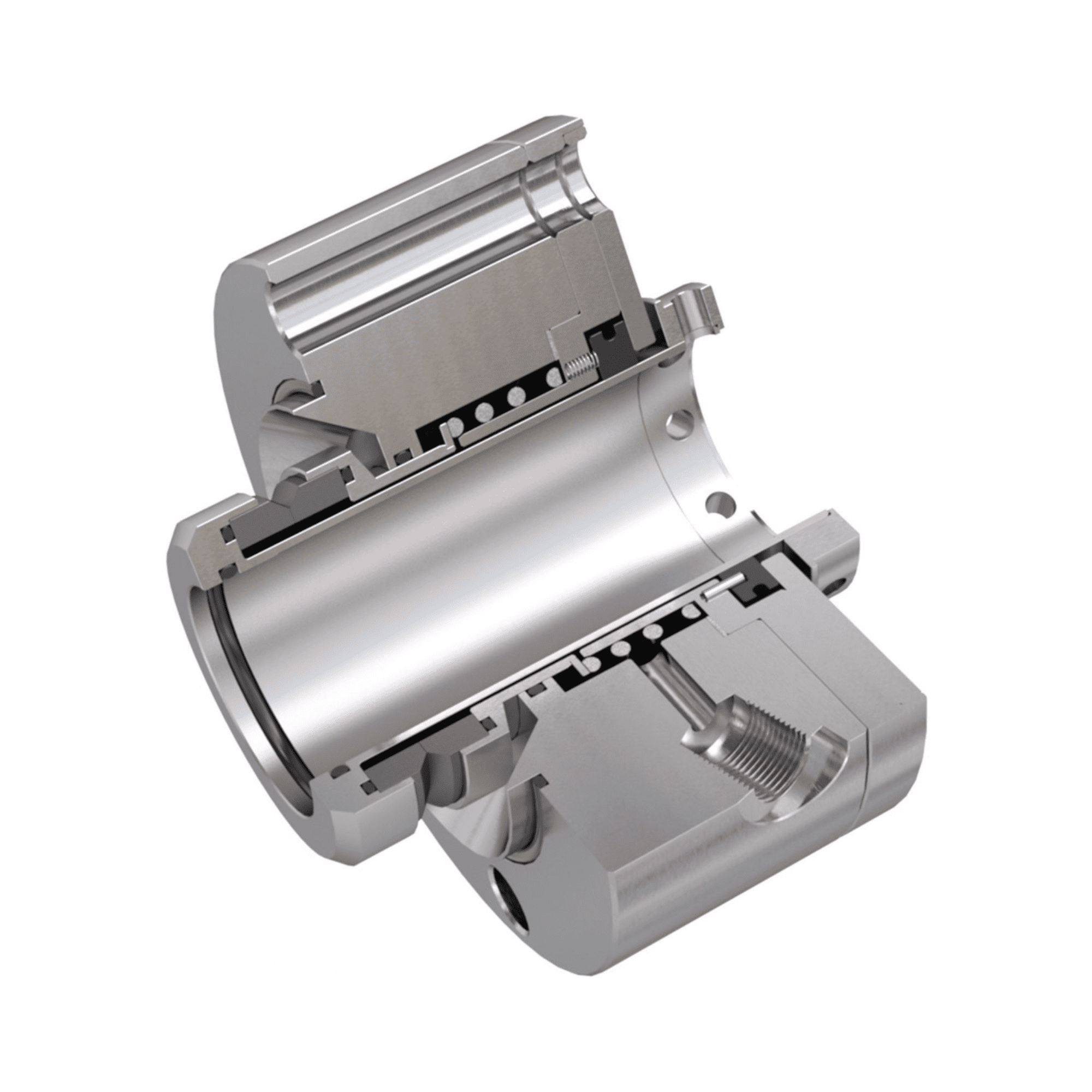

Seal Diagram

Dimensional Data



Industries Suitable For

  • Biofuels: Efficiently handles corrosive and volatile biofuel processes.
  • Chemical: Designed for aggressive chemicals and high-pressure systems.
  • Food & Beverage: Compliant with stringent cleanliness standards for hygienic processing.
  • Mining & Minerals: Withstands abrasive slurries and extreme operating conditions.
  • Oil & Gas: Meets API standards for upstream, midstream, and downstream operations.
  • Power Generation: Ideal for boiler feedwater and high-speed turbine pumps.
  • Pulp & Paper: Operates reliably in harsh environments with high solids content.
  • Petrochemicals: Handles hydrocarbons, sour gas, and high-temperature fluids with ease.

Why Choose Orbit Fluid Solution LLP?

  1. API Compliance: Our seals meet rigorous API standards, ensuring top-notch reliability.
  2. Innovative Design: Features like multi-point injection and FEA-optimized seal rings set our products apart.
  3. Custom Solutions: Tailored designs for specific industrial needs and applications.
  4. Global Expertise: Trusted by clients worldwide across critical industries.
  5. Proven Durability: Designed for high performance in extreme conditions, reducing downtime and maintenance costs.
Contact Orbit Fluid Solution LLP today to explore how our 805B/805B API Cartridge Mechanical Seals can enhance the reliability and efficiency of your operations.
