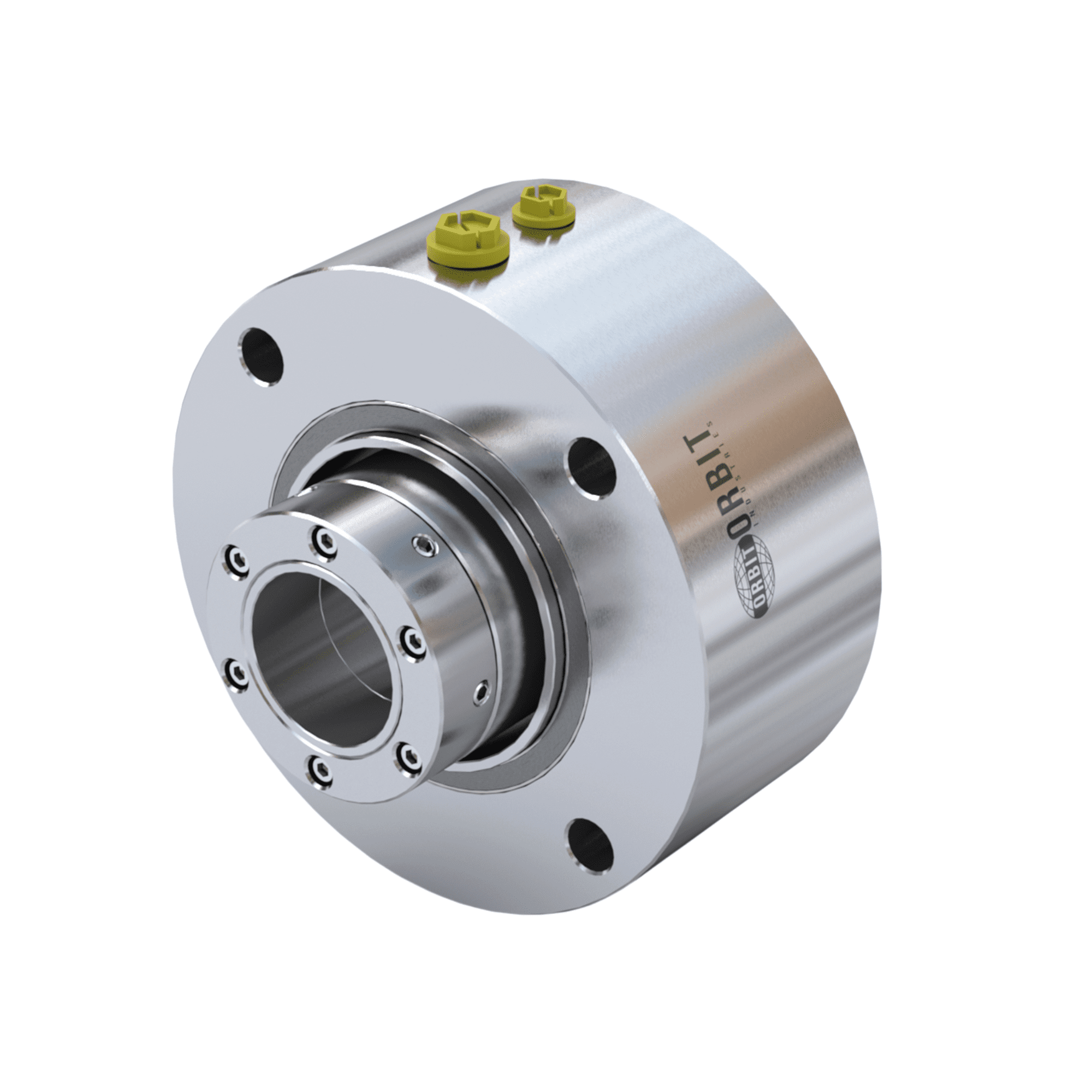

Description
Key Features
- Dry and Wet Compatibility: Suitable for both dry and wet applications with optimized sealing performance.
- Self-Cooling Mechanism: Advanced thermal management ensures reliable operation even at elevated temperatures.
- Compact Design: Fits ANSI and older API pumps with limited axial space.
- Enhanced Durability: Constructed with premium-grade materials to withstand harsh conditions.
- Low Friction Design: Reduced wear and improved longevity via controlled spring load and minimized seal head drag.
- Advanced Seal Faces: Proprietary carbon primary ring paired with silicon carbide mating ring for superior thermal conductivity.
Operating Parameters
- Temperature: -29°C to 205°C (-20°F to 400°F)
- Pressure:
- Dry: Up to 0.35 bar g (5 psig) continuous
- Wet: Up to 69 bar g (1000 psig)
- Speed: Up to 20 m/s (4000 fpm)
Materials of Construction
- Seal Faces: Carbon/SiC
- Secondary Seals: PTFE/Viton/GFT
- Metal Components: SS-316/Hastelloy-C
Fluids Handled
- Condensates
- Heat Transfer Fluids
- Hydrocarbons (Flashing/Non-Flashing)
- LNG, LPG, NGL
- Mild Acids
- Sour Water
Industries Served
- Automotive: Ensures optimal sealing in transmission systems and engine applications.
- Biofuels: Enhances safety and performance in renewable energy production processes.
- Food & Beverage: Provides contamination-free sealing in hygienic environments.
- Mining & Minerals: Withstands abrasive conditions in mineral processing and slurry handling.
- Oil & Gas: Excels in high-pressure, high-temperature exploration and refining operations.
- Power Generation: Guarantees efficiency and reliability in turbine and boiler applications.
- Pulp & Paper: Ensures uninterrupted operations in demanding pulp processing environments.
- Sugar Industries: Operates seamlessly in high-viscosity and corrosive sugar production processes.
- Cement Plants: Designed to endure extreme dust and vibration in cement manufacturing.
- Petrochemicals: Delivers superior performance in chemical reactors and storage.
- Pharmaceutical: Maintains clean and sterile operations in medicine manufacturing.
Seal Diagram
Dimensional Data
