Description
Applications

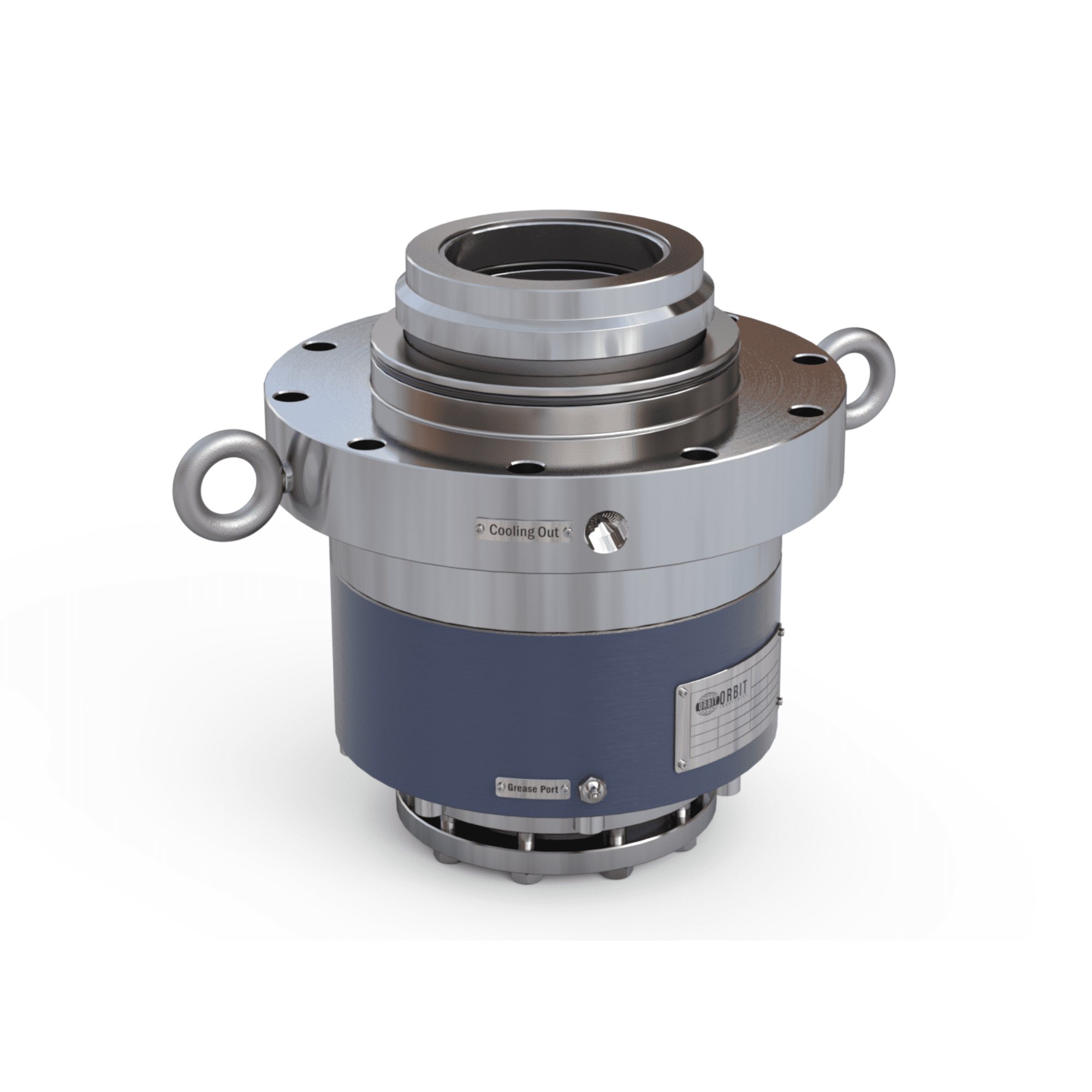

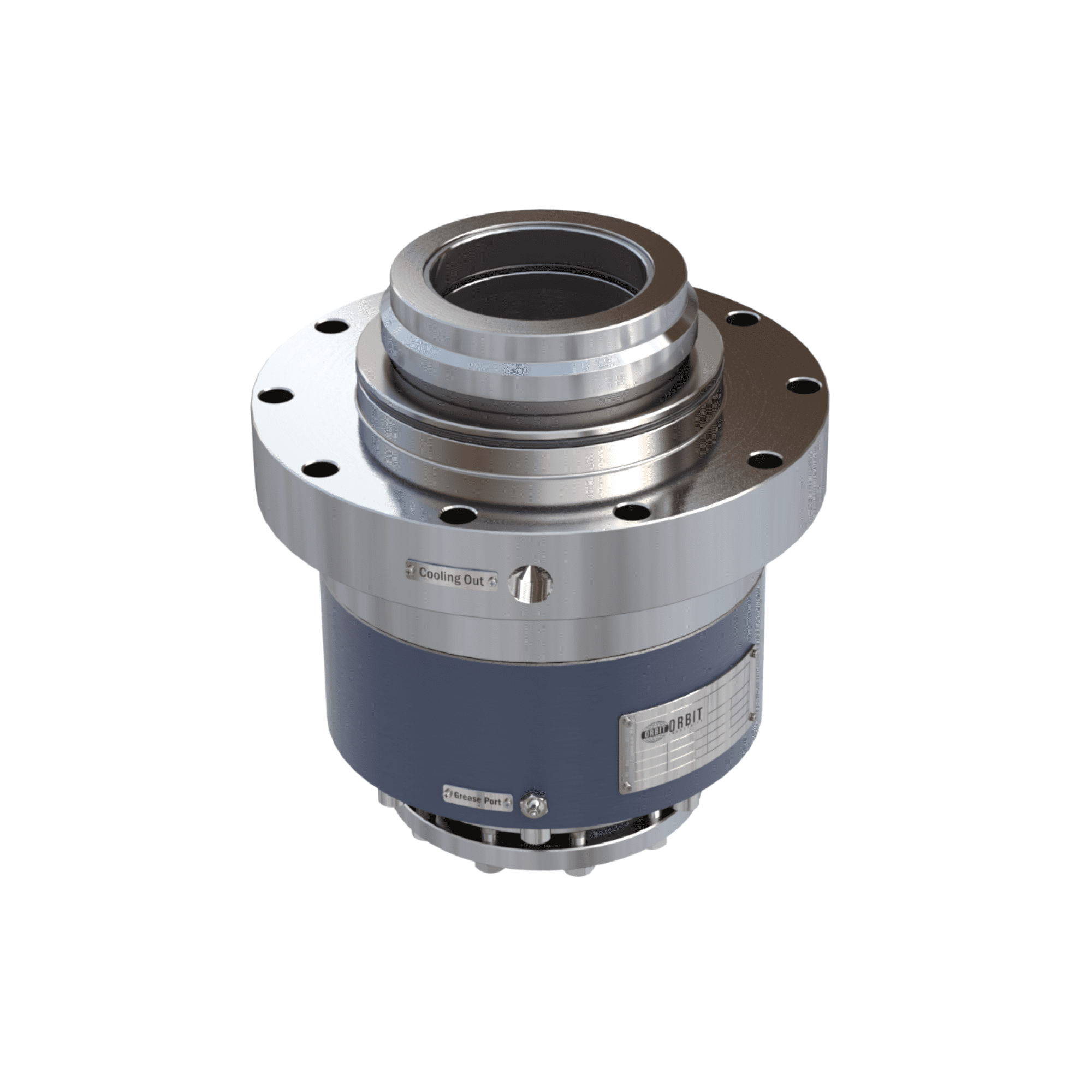

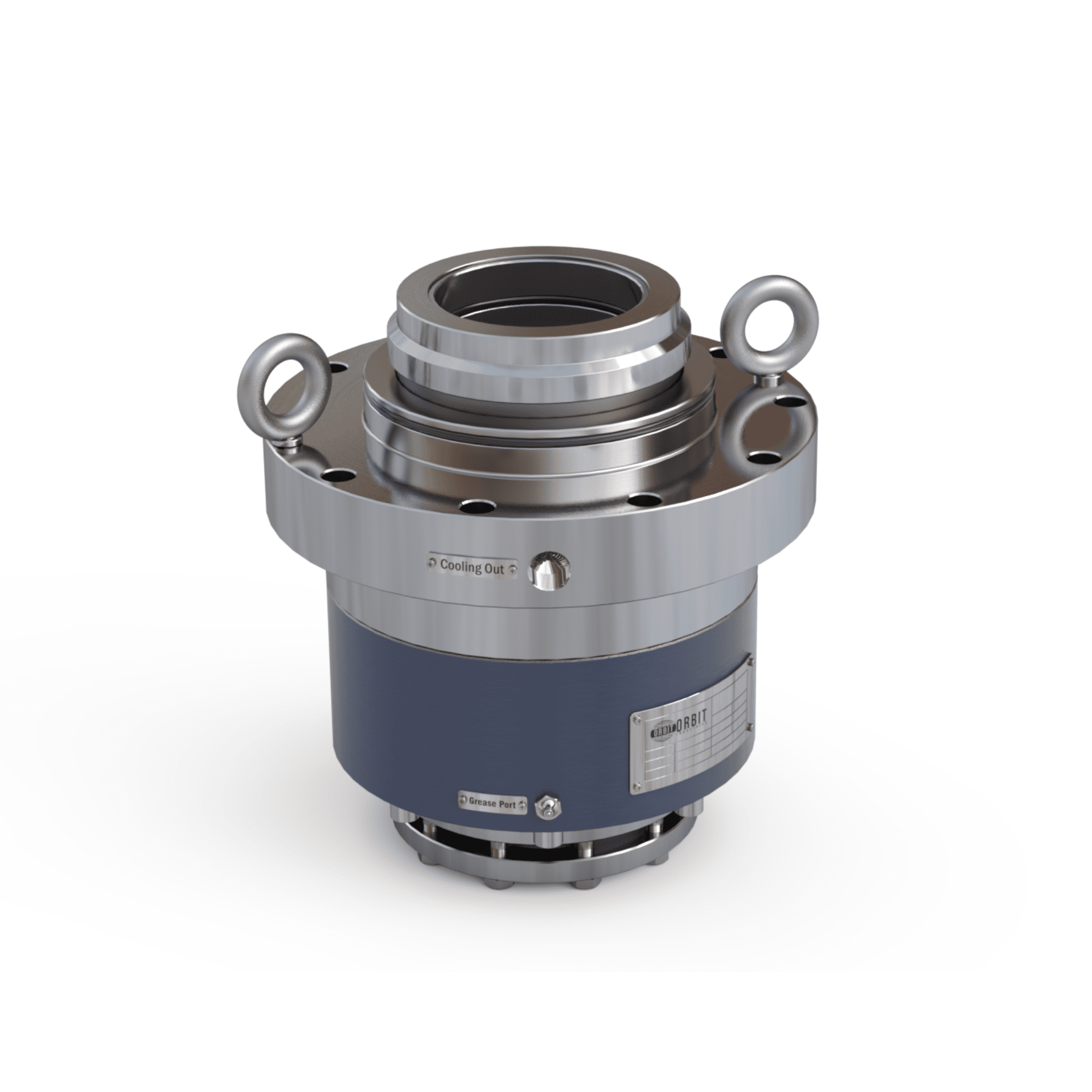

The Bottom Entry Mixer Seal 80B3S/805B-B is versatile and engineered for a wide range of applications, including:
- Slurry and Viscous Media: Reliable and efficient sealing for highly abrasive or thick media.
- Sterile Environments: Suitable for food, pharmaceutical, and biochemistry processes.
- Chemical and Corrosive Fluids: Durable performance in handling aggressive media.
- High-Temperature and High-Pressure Environments: Ensures sealing integrity under extreme operating conditions.
- Glass-Lined and Stainless-Steel Vessels: Specifically designed for bottom-entry and side-entry reactors in compliance with DIN 28138 and DIN 27136 standards.
Industries Served
The Bottom Entry Mixer Seal 80B3S/805B-B is ideal for:
- Biofuels : Seamlessly handles aggressive and variable biofuel media, ensuring efficient operations.
- Chemical Processing : Provides robust sealing solutions for corrosive and hazardous chemical environments.
- Food & beverages : Delivers sterile and reliable sealing in compliance with hygiene standards.
- Marine : Ensures dependable performance in demanding marine applications, including saltwater exposure.
- Oil & Gas : Withstands extreme pressures and temperatures, ensuring safe and efficient sealing in critical oil and gas processes.
- Pulp & Paper : Offers durability and efficiency in processing abrasive slurries and thick fluids in the paper industry.
- Sugar Industries : Provides reliable sealing for slurry and viscous fluids in sugar processing plants.
- Cement Plants : Designed to handle abrasive cement slurries, ensuring minimal wear and downtime.
- Petrochemicals : Provides dependable sealing for high-pressure and chemically aggressive petrochemical environments.
- Pharmaceuticals : Offers sterile sealing solutions critical for pharmaceutical and biochemistry applications.
Seal Diagram
Dimensional Data
Dimensional Data Metrics| D1 | D2 | D3 | D4 | D5 | L1 | L2 | L3 | L4 |
|---|---|---|---|---|---|---|---|---|
| 20 | 52 | 117 | 140 | 118 | 22 | 30.5 | 157.5 | 196.5 |
| 25 | 58 | 124 | 150 | 128 | 22 | 30.5 | 167 | 210 |
| 30 | 62 | 134 | 165 | 138 | 26 | 30.5 | 174 | 215 |
| 35 | 68 | 140 | 175 | 148 | 26 | 30.5 | 174 | 215 |
| 40 | 75 | 146 | 175 | 148 | 28 | 34.5 | 180 | 225 |
| 45 | 83 | 150 | 175 | 148 | 28 | 34.5 | 180 | 226 |
| 50 | 90 | 170 | 195 | 168 | 30 | 34.5 | 190 | 250 |
| 55 | 95 | 175 | 205 | 178 | 30 | 34.5 | 200 | 258 |
| 60 | 100 | 180 | 205 | 178 | 30 | 34.5 | 200 | 258 |
| 65 | 110 | 190 | 220 | 188 | 30 | 40.5 | 210 | 268 |
| 70 | 115 | 195 | 230 | 198 | 30 | 40.5 | 210 | 268 |
| 75 | 120 | 200 | 230 | 198 | 30 | 40.5 | 216 | 272 |
| 80 | 130 | 210 | 240 | 208 | 32 | 45 | 225 | 285 |
| 85 | 135 | 215 | 250 | 218 | 32 | 45 | 230 | 308 |
| 90 | 140 | 230 | 260 | 228 | 35 | 45 | 245 | 315 |
| 95 | 145 | 235 | 270 | 238 | 35 | 45 | 245 | 325 |
| 100 | 150 | 240 | 270 | 238 | 40 | 45 | 260 | 325 |
| 110 | 160 | 255 | 290 | 258 | 40 | 50 | 266 | 340 |
| 120 | 172 | 265 | 305 | 268 | 40 | 52.5 | 270 | 350 |
| 130 | 185 | 275 | 315 | 278 | 40 | 52.5 | 270 | 358 |
| 140 | 195 | 290 | 335 | 298 | 41 | 52.5 | 285 | 365 |
| 150 | 205 | 300 | 335 | 298 | 45 | 52.5 | 290 | 380 |
| 160 | 220 | 330 | 355 | 325 | 45 | 52.5 | 290 | 390 |
| 170 | 230 | 345 | 375 | 358 | 45 | 52.5 | 290 | 405 |
| 180 | 240 | 365 | 395 | 358 | 45 | 55.5 | 300 | 418 |
| 190 | 270 | 395 | 425 | 388 | 60 | 57.5 | 335 | 465 |
| 200 | 280 | 395 | 425 | 388 | 60 | 57.5 | 335 | 465 |
Operating Parameters
The 80B3S/805B-B Bottom Entry Mixer Seal is engineered for outstanding performance under the following conditions:
- Shaft Diameter: 40 to 150 mm
- Pressure: Vacuum to 15 bar
- Temperature Range: -80°C to +350°C
- Speed: Up to 500 RPM
Key Features
- Balanced Design: Ensures optimal performance and minimizes wear.
- Hydraulically Balanced Inboard Seal Ring: Enhances sealing efficiency for high-pressure and viscous media.
- PTFE-Wrapped O-Rings: Chemically resistant and compatible with a wide range of fluids.
- Seal Face Design: Specifically crafted to excel in slurry and abrasive media applications.
- Factory Assembled & Tested Cartridge Unit: Guarantees precision and simplifies installation.
- V-Packing Design: Protects against wear and leakage, especially in slurry applications.
- Compliance with DIN Standards: Designed in accordance with DIN 28138 and DIN 27136 for seamless integration into industrial systems.
Materials of Construction
The Bottom Entry Mixer Seal is crafted from high-quality materials to ensure durability and reliability:
- Seal Faces: Carbon, Silicon Carbide (SiC), Tungsten Carbide (TC)
- Secondary Seals: PTFE, FKM, FFKM
- Metal Components: SS-316, Hastelloy-C, Inconel-718
