Choosing the Best Materials for Mechanical Seals in Chemical Processing

When the Wrong Material Costs More Than the Seal

In chemical processing plants, a mechanical seal is only as good as the materials it is made from. A seal that works perfectly with water can fail catastrophically within days when exposed to strong acids, caustics, solvents, or mixed chemical streams.

Material selection is one of the most critical decisions in preventing seal failures caused by chemical attack, swelling, blistering, or corrosion. Choosing the wrong elastomer, seal face, or metal component leads to leakage, unplanned downtime, safety risks, and expensive repairs.

This guide explains how to select the right materials for mechanical seals in chemical processing environments. We will cover seal face materials, secondary elastomers, metal components, compatibility principles, and practical selection steps so you can make informed decisions that improve reliability and reduce total cost of ownership.

Why Material Selection Matters in Chemical Processing

Chemical plants handle a wide range of aggressive media, including:

Strong mineral acids (sulfuric, hydrochloric, nitric)
Caustic solutions (sodium hydroxide)
Organic solvents
Hydrocarbons and oils
Oxidizing agents
Mixed or changing chemical streams

These fluids attack seals through different mechanisms:

Chemical corrosion of metal parts
Swelling or degradation of elastomers
Leaching of binders in hard faces
Thermal degradation under high temperatures

The result is often premature failure. Selecting materials based on real process conditions — not just catalog recommendations — is essential.

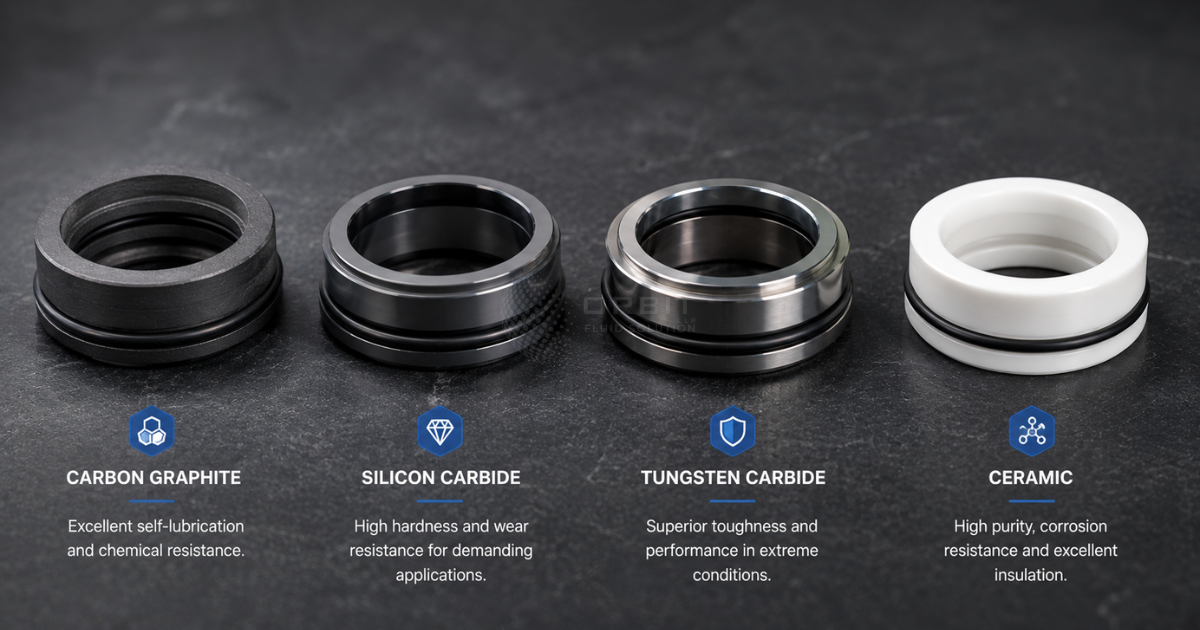

Seal Face Materials: The Primary Sealing Interface

The two seal faces (one rotating, one stationary) form the primary sealing barrier. The most common materials used in chemical service are:

1. Carbon Graphite

Soft, self-lubricating material
Good chemical resistance in many services
Excellent when paired with a harder face
Limitations: Lower hardness, can blister under high temperature or certain hydrocarbons

2. Silicon Carbide (SiC)

Extremely hard and wear-resistant
Excellent chemical resistance (especially sintered grades)
High thermal conductivity
Preferred for aggressive chemicals and abrasive fluids
Note: Reaction-bonded SiC contains free silicon and should be avoided in strong acids or caustics. Sintered SiC is preferred for severe chemical duty.

3. Tungsten Carbide (TC)

Very hard and impact-resistant
Good for abrasive or slurry applications
Limitation: The nickel or cobalt binder can leach out in strong acids or caustics, reducing performance

4. Ceramic (Alumina)

Cost-effective option for milder services
Good hardness but more brittle and limited chemical resistance compared to SiC

Common Face Combinations in Chemical Service:

Carbon vs. Silicon Carbide (most versatile)
Silicon Carbide vs. Silicon Carbide (for highly corrosive or abrasive media)
Carbon vs. Tungsten Carbide (when impact resistance is needed)

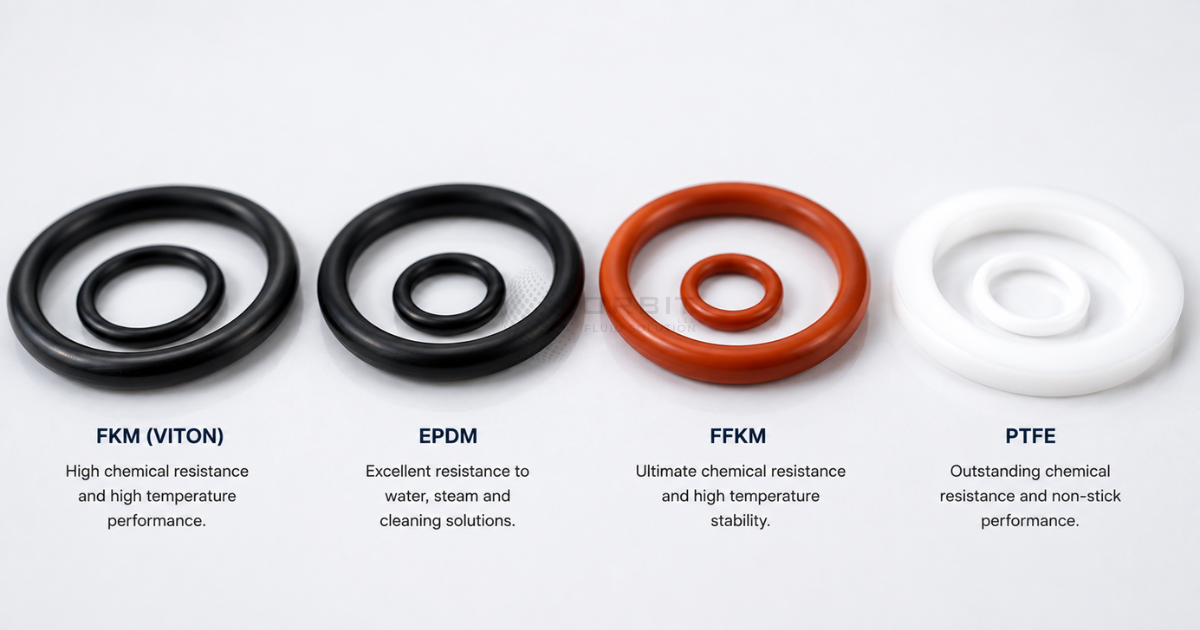

Secondary Seals (Elastomers and PTFE)

Secondary seals (O-rings, bellows, gaskets) fail more often from chemical attack than the primary faces. Material choice here is critical.

Material	Temperature Range	Best For	Limitations
FKM (Viton)	-20°C to +200°C	Hydrocarbons, many acids, solvents	Poor with strong caustics, steam, ketones, amines
EPDM	-40°C to +150°C	Water, steam, alkalis, mild acids	Not suitable for oils, hydrocarbons, or many solvents
FFKM (e.g. Kalrez)	-20°C to +300°C+	Nearly universal chemical resistance	High cost
PTFE	-200°C to +260°C	Extreme chemical inertness	Low elasticity, requires special design
NBR	-30°C to +120°C	Petroleum-based fluids	Limited chemical resistance

Metal Components and Hardware

Wetted metal parts (springs, retainers, glands) must also resist corrosion.

316 / 316L Stainless Steel — Standard choice for many applications
Duplex Stainless Steel — Better for chloride-rich or sour environments
Hastelloy C-276 — Excellent for highly corrosive acids and mixed chemicals
Alloy 20 — Strong performance in sulfuric acid service
Monel, Inconel, Titanium — Used in specialized severe services

In extremely aggressive applications, metal-free or non-wetted designs may be considered.

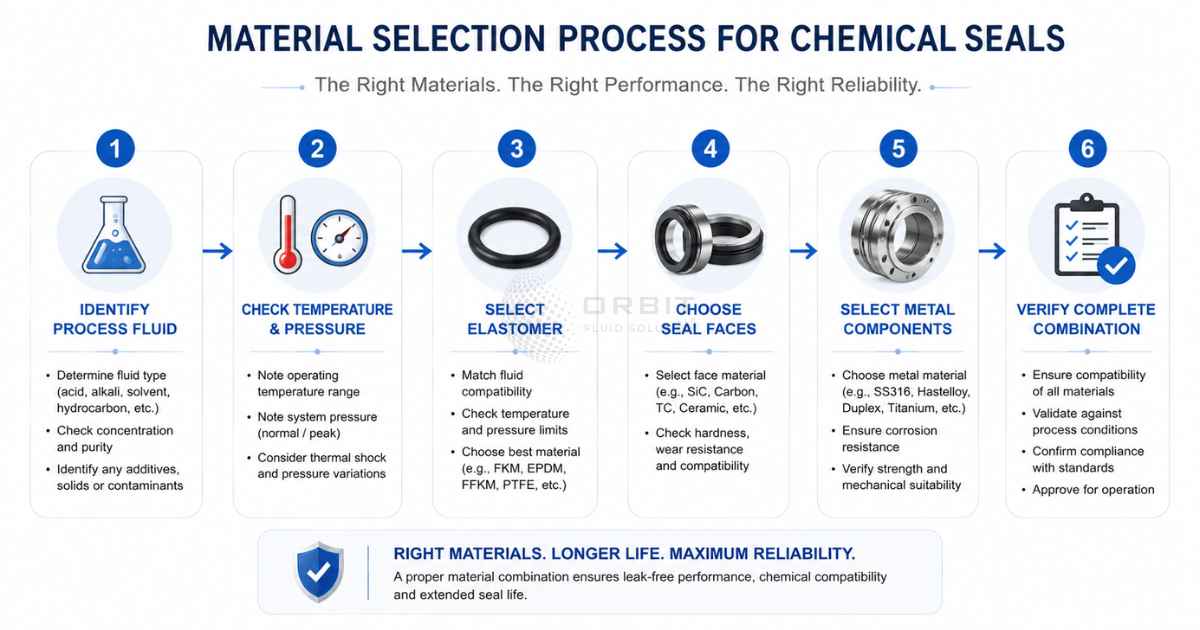

Practical Material Selection Process

Follow this sequence when specifying seals for chemical service:

Identify the process fluid(s) — Include concentration, temperature, pressure, and any secondary fluids (flush, barrier).
Determine the most aggressive condition — Consider cleaning cycles, startups, and upset conditions.
Select the elastomer first — Secondary seals fail most frequently from chemical attack.
Choose seal face materials — Prefer sintered silicon carbide for severe corrosion.
Select metal components — Upgrade from 316SS only when necessary.
Verify the complete combination — Ensure all materials work together under real operating conditions.
Consider double seals or specialized arrangements when leakage of hazardous chemicals is unacceptable.

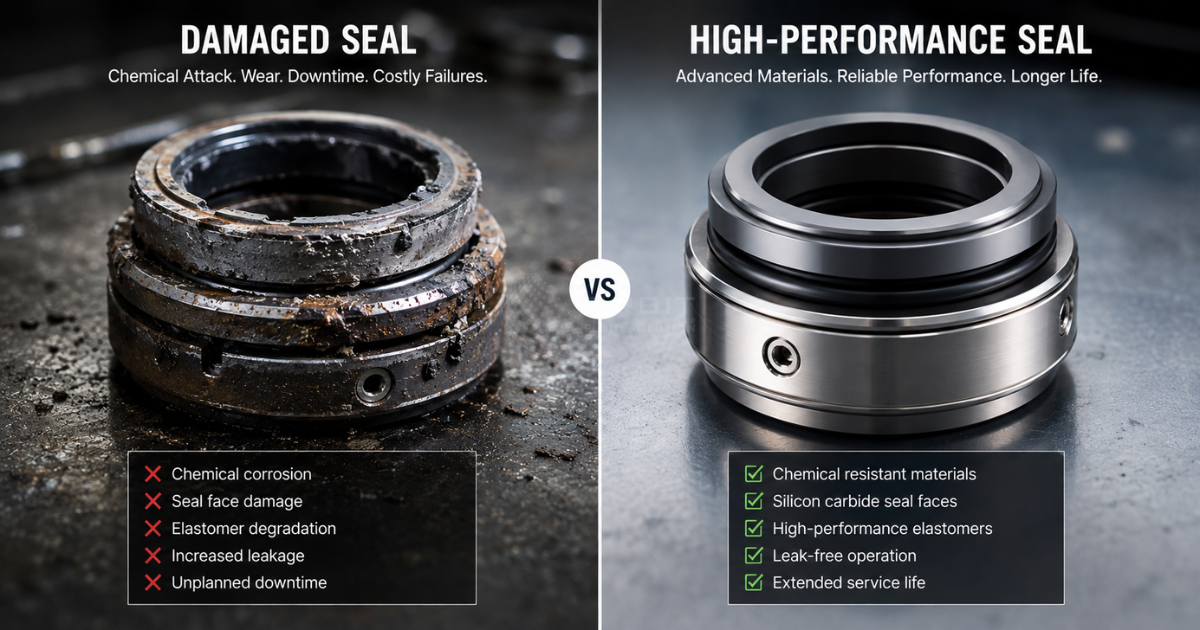

Common Material Mistakes in Chemical Plants

Using reaction-bonded silicon carbide in strong caustic or acid service
Selecting FKM for strong alkaline applications
Specifying carbon faces without considering blistering risk in hot hydrocarbons
Ignoring temperature effects on chemical compatibility
Choosing the cheapest material without evaluating total cost of failure

How Orbit Fluid Solution LLP Helps Chemical Processors

At Orbit Fluid Solution LLP, we specialize in matching the right mechanical seal materials to challenging chemical environments. Our approach includes:

Application-specific material recommendations
Support for both standard and custom seal designs
Focus on reliable face combinations (including sintered SiC)
Guidance on elastomer selection for complex chemical streams
Emphasis on reducing unplanned downtime caused by material incompatibility

We help chemical plants move from reactive seal replacements to proactive material selection that delivers longer service life and greater process safety.

Material Selection Is Risk Management

In chemical processing, the best mechanical seal is the one whose materials can survive the fluid, the temperature, the pressure, and the cleaning cycles without degradation.

By systematically evaluating seal faces, elastomers, and metal components against real process conditions, you can dramatically reduce chemical-related seal failures.

Start with accurate process data. Match materials to the most severe conditions. And partner with a supplier who understands both the chemistry and the mechanical demands of industrial sealing.

Need help selecting materials for a specific chemical application? Contact the team at Orbit Fluid Solution LLP for technical support tailored to your process.
