Description

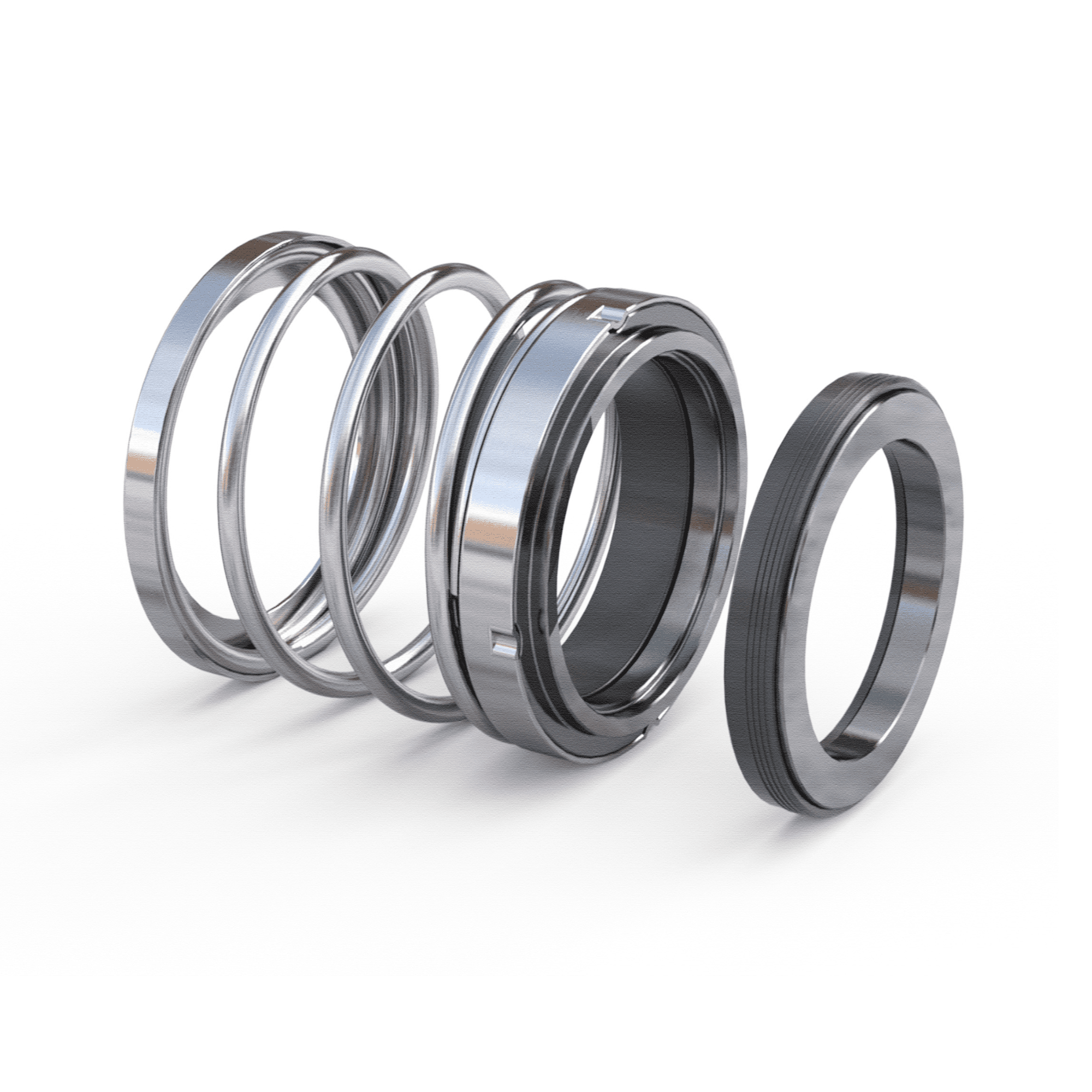

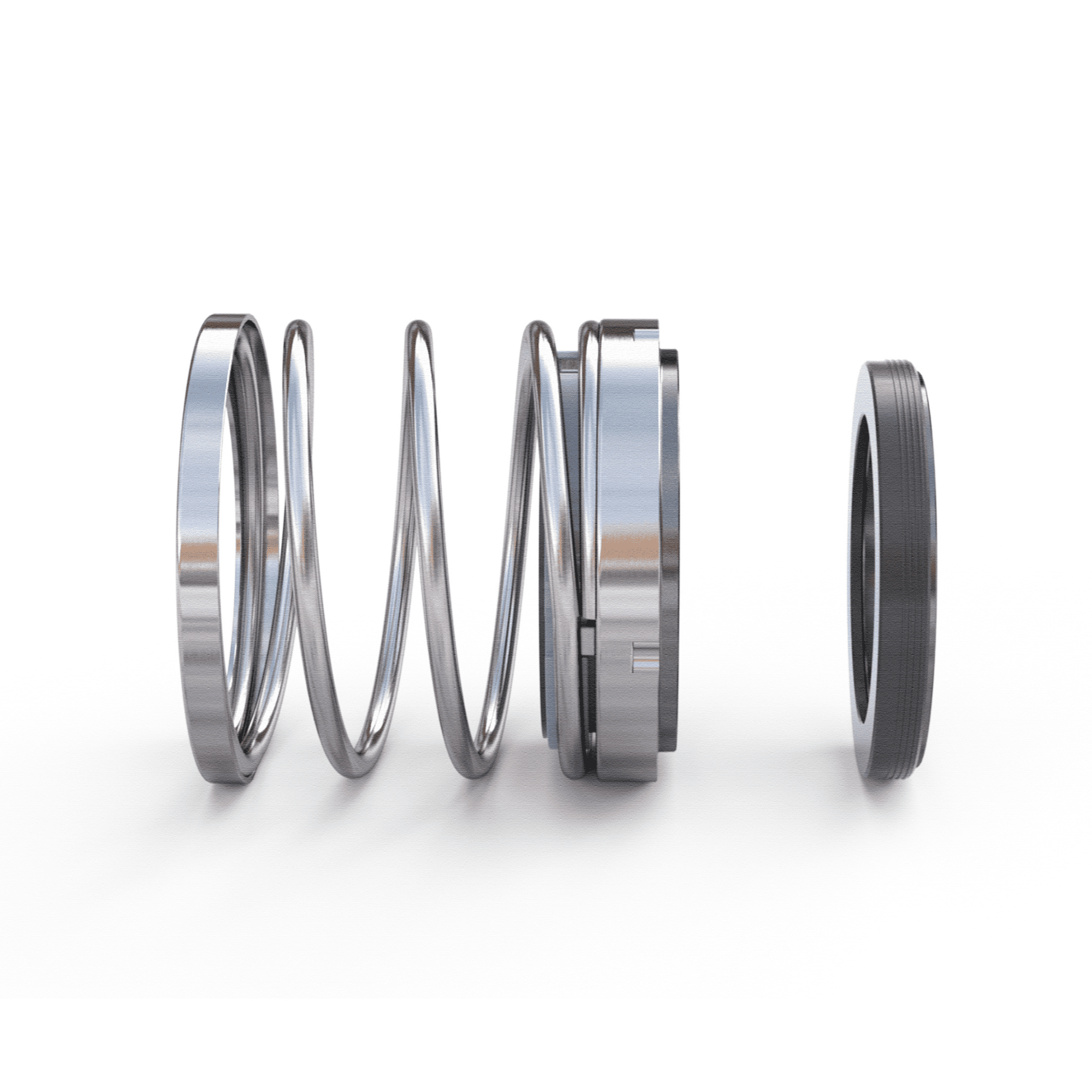

Applications of 307 Rubber Bellow Seal

The 307 Rubber Bellow Seal is crafted to meet the demands of numerous industries and systems, offering seamless integration into the following applications:

1. Automotive: Seals efficiently in cooling systems, lubrication systems, and other critical automotive applications.
2. Biofuels: Ensures leak-free operation in biofuel processing, even under demanding conditions.
3. Food & Beverage: Delivers hygienic sealing for pumps and equipment used in food processing and beverage production.
4. Marine: Reliable for seawater pumps and freshwater distribution systems in marine environments.
5. Metal & Glass-Working: Effectively seals coolant systems in machining, grinding, and glass-cutting operations.
6. Mining & Minerals: Handles abrasive slurries and challenging environments with superior sealing capabilities.
7. Power Generation: Ensures smooth operation in auxiliary systems and cooling water pumps in power plants.
8. Pulp & Paper: Excels in fiber-laden water systems, ensuring minimal downtime in pulp and paper manufacturing.
9. Water & Waste Water: Trusted for pumps in water treatment, distribution, and recycling systems.
10. Petrochemicals: Provides reliable sealing in chemical and petrochemical processing applications.
11. Pharmaceutical: Offers precise sealing in contamination-sensitive pharmaceutical production environments.

---

Technical Operating Parameters

• Shaft Diameter: 24 to 100 mm
• Pressure Range: Vacuum to 12 Bars
• Temperature Range: -20°C to 160°C
• Maximum Speed: Up to 20 m/s

---

Material Specifications

1. Seal Faces: Carbon, Silicon Carbide (SiC), or Tungsten Carbide (TC).
2. Secondary Seals: FFKM, FKM (Viton), or PTFE for compatibility with various chemicals and fluids.
3. Metal Components: SS-316 for corrosion resistance, Hastelloy-C for extreme environments, and Inconel-718 for high-temperature applications.

---

Key Features

• Easy Installation: Designed for effortless integration with minimal tools or adjustments required.
• Compact Design: Requires less axial and radial space, making it ideal for systems with constrained installation areas.
• Convertibility: Can be converted into a double seal with minimal additional parts, increasing its versatility.
• Durability: Resistant to high temperatures, corrosion, and wear, ensuring a longer operational life.
• Minimal Components: Simplifies maintenance and reduces system downtime.
• Universal Compatibility: Suitable for a wide range of fluids, including clear liquids and viscous substances.

---

Seal Diagram





---

Dimensional Data

Dimensional Data Metrics

D1	D2	D3	D4	L1	L2
10	20	22	23	23.5	6.6
12	22	24	24	23.5	6.6
14	24	26	27	26	6.6
16	26	28	27	26	6.6
18	29.5	34	33	27	7.5
20	31.5	36	35	27	7.5
22	32.5	38	37	27	7.5
24	36	40	39	29.5	7.5
25	38	41	40	29.5	7.5
28	40	44	43	32	7.5
30	43	46	45	32	7.5
32	45	48	48	32	7.5
33	46.5	49	48	32	7.5
35	48.5	51	50	32	7.5
38	52.5	58	56	33.5	9
40	56	60	58	33.5	9
43	59	63	61	33.5	9
45	61	65	63	33.5	9
48	64	68	66	33.5	9
50	66	70	70	34	9.5
53	69	73	74	34	11
55	71	75	75	34	11
58	78	83	84	39	11
60	80	85	80	39	11
63	83	88	85	39	11
65	85	90	85	39	11
68	88	93	92	37	11
70	90	95	92	44.5	11.3
75	96	104	97	44.5	11.3
80	102	109	105	44	12
85	107	114	110	44	14
90	112	119	115	49	14
95	117	124	120	49	14
100	124	129	125	49	14



---

Why Choose Orbit Industries for Rubber Bellow Seals?

1. Proven Expertise: Over 30 years of excellence in mechanical sealing solutions.
2. Custom Solutions: Tailored designs to meet specific industrial requirements.
3. Global Recognition: Trusted by industries worldwide for quality and reliability.
4. Premium Materials: Ensuring enhanced durability and consistent performance.
5. Commitment to Sustainability: Manufacturing processes focused on reducing environmental impact.

---

Industries That Rely on the 307 Rubber Bellow Seal

• Automotive: For leak-free operation in engine cooling and lubrication systems.
• Biofuels: To handle biofuel blending, transfer, and storage processes.
• Food & Beverage: Meeting stringent hygiene standards for food-grade applications.
• Marine: Ensuring efficient sealing in shipboard systems.
• Metal & Glass-Working: For coolant pumps in machining and glass-manufacturing operations.
• Mining & Minerals: Resisting abrasive slurries and harsh environments in mining processes.
• Power Generation: Dependable sealing in cooling and water management systems.
• Pulp & Paper: For fiber-laden water and chemical sealing.
• Water & Waste Water: Trusted for wastewater treatment plants and water distribution systems.
• Petrochemicals: Reliable for processing and handling various chemicals.
• Pharmaceutical: Precision sealing for sterile and contamination-free environments.

---

Upgrade your operations with Orbit’s 307 Rubber Bellow Seal – engineered for versatility, reliability, and unmatched performance.
