How to Select Food-Safe Seals for Dairy Processing

When a Seal Decision Affects Every Drop of Milk

In a dairy plant, every component that touches the product must protect purity. A single poorly chosen seal can introduce contamination risk, fail under aggressive cleaning cycles, or force unplanned downtime during peak production.

Dairy processing is one of the most demanding environments for seals. Milk, cream, yogurt, cheese, and butter present unique challenges — high hygiene requirements, frequent Clean-in-Place (CIP) and Sterilize-in-Place (SIP) cycles, varying fat content, temperature swings, and strict regulatory oversight.

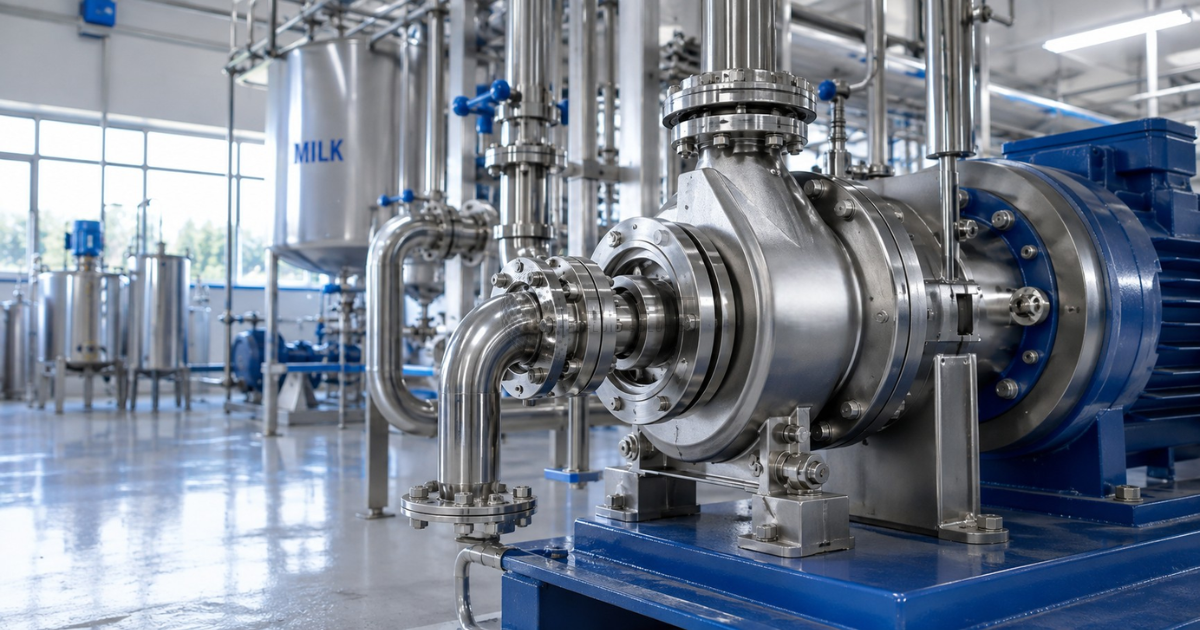

This guide walks you through the practical steps to select the right food-safe seals for dairy processing. Whether you are specifying seals for pumps, valves, homogenizers, or heat exchangers, the principles remain the same: compliance first, cleanability always, and performance under real plant conditions.

Why Dairy Processing Demands Specialized Seals

Dairy products are highly sensitive. Even minor leakage or material degradation can lead to:

Product contamination
Flavor or odor transfer
Failed audits
Costly product recalls
Extended downtime during cleaning validation

Unlike general food processing, dairy operations often involve:

High-fat products (cream, butter, cheese)
Frequent thermal and chemical cycling
Strict sanitary design requirements under 3-A Sanitary Standards
Continuous or near-continuous operation

The right seal protects both product integrity and operational efficiency.

Prevent leakage of treated and untreated water
Protect expensive pumps and equipment from damage
Maintain process efficiency and energy savings
Ensure compliance with environmental and safety regulations
Minimize contamination risks

A single seal failure can lead to unplanned shutdowns, contamination, and heavy financial losses.

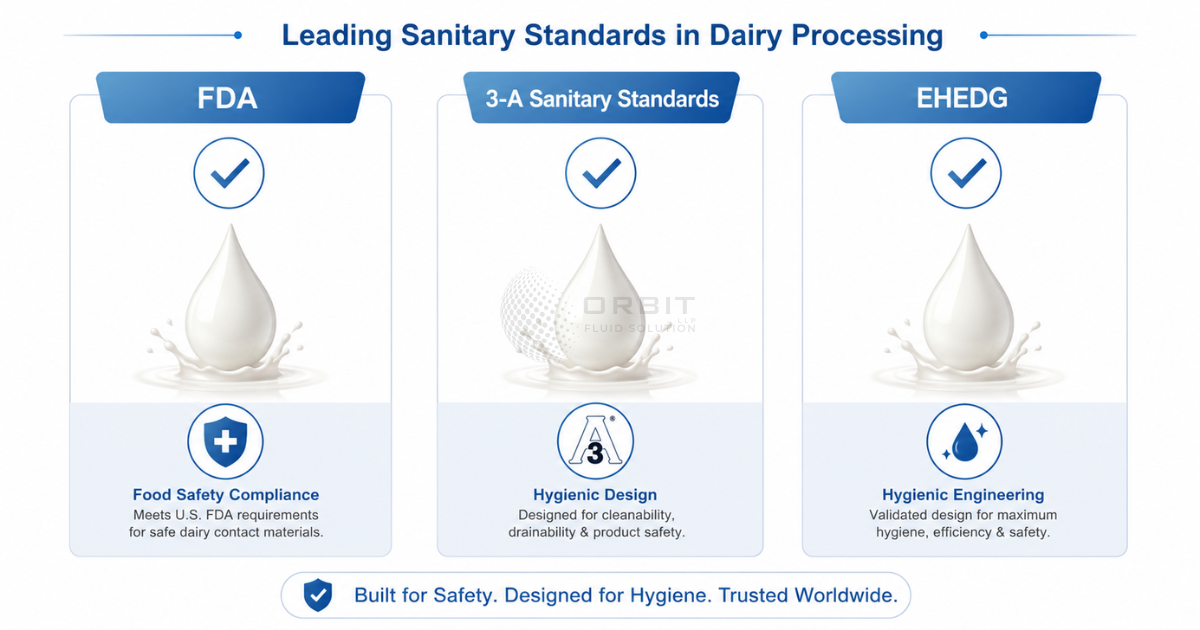

Key Regulatory Standards You Must Meet

When selecting seals for dairy, compliance is non-negotiable. Focus on these frameworks:

1. FDA 21 CFR 177.2600 Governs rubber and elastomer materials intended for repeated food contact. Materials must meet extraction limits for aqueous and fatty foods.

2. 3-A Sanitary Standards The gold standard for dairy equipment in the United States. Especially relevant is 3-A Standard 18 for rubber and rubber-like materials. Materials are classified (Class I or Class II) based on temperature and fat resistance. Hygienic design rules also apply (smooth surfaces, minimum radii, no dead spaces).

3. EHEDG Guidelines European Hygienic Engineering & Design Group provides outcome-based guidance on cleanability and hygienic design. Particularly useful for plants exporting to Europe or seeking best-practice validation.

4. EU Regulation 1935/2004 Covers materials and articles intended to come into contact with food.

Always request documentation from your seal supplier confirming compliance with the relevant standards for your specific application.

Understanding Dairy Process Conditions

Before selecting any seal, map your actual operating and cleaning conditions:

Product type and fat content (skim milk vs. cream vs. butter)
Operating temperature range
CIP chemicals (caustic NaOH, nitric or phosphoric acid, peracetic acid) and concentrations
CIP and SIP temperatures and cycle frequency
Pressure and viscosity
Presence of any solids or abrasives

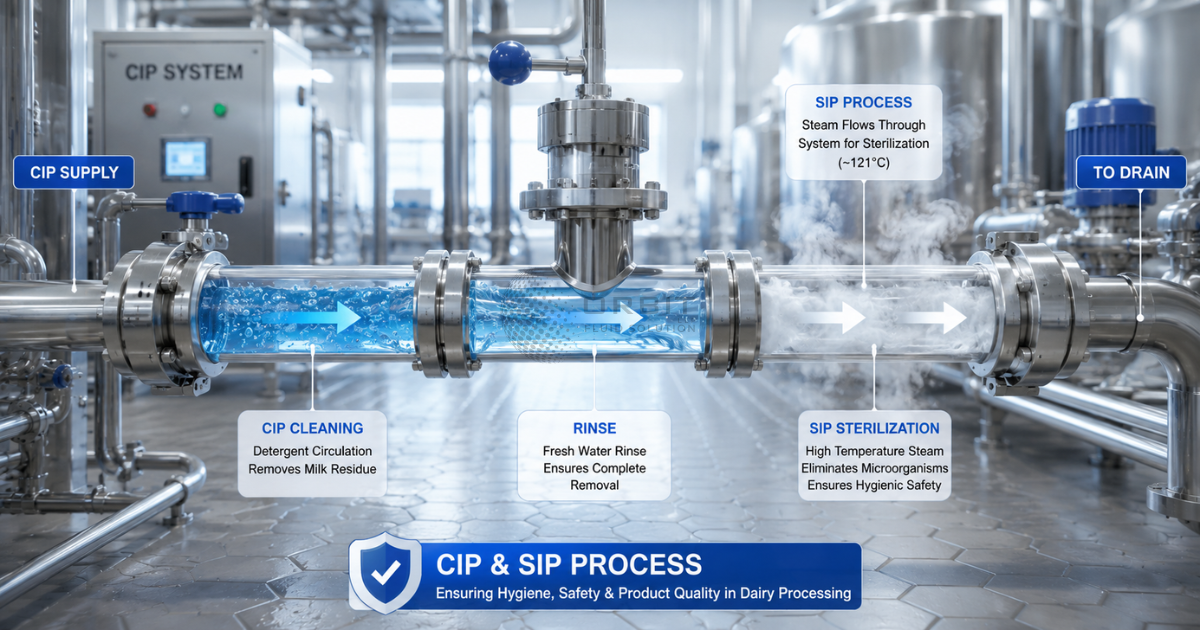

CIP/SIP cycles are often more aggressive than the product itself. A seal that handles cold milk perfectly can fail quickly under repeated hot caustic and steam exposure.

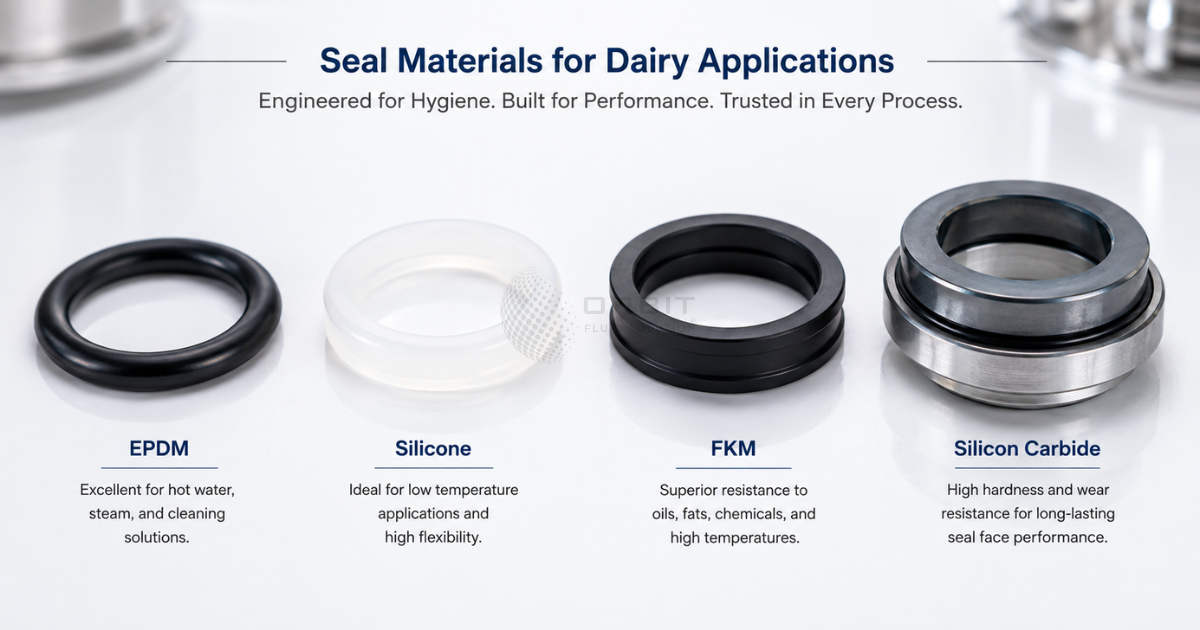

Material Selection for Dairy Seals

Material	Strengths	Limitations	Best Dairy Use Cases
EPDM	Excellent CIP resistance, good steam resistance, cost-effective	Limited resistance to high-fat products	Low-to-medium fat dairy, aqueous CIP systems
Silicone (VMQ)	Excellent temperature range, taste/odor neutral, strong SIP performance	Lower mechanical strength, can swell in some oils	High-temperature processes, aseptic lines
FKM (Fluoroelastomer)	Better fat and oil resistance, good chemical resistance	Higher cost than EPDM	High-fat products (cream, cheese, butter)
FFKM (Perfluoroelastomer)	Outstanding chemical and temperature resistance	Significantly higher cost	Extreme CIP/SIP or critical aseptic applications
HNBR	Good mechanical strength and abrasion resistance	Moderate chemical resistance	Applications with mechanical stress and moderate fats

Primary Seal Faces (Mechanical Seals)

Silicon carbide (SiC) against silicon carbide is the preferred combination for hygienic mechanical seals. It offers excellent chemical resistance, thermal conductivity, and the ability to maintain flatness through thousands of CIP cycles.

Hardware Use 316L stainless steel or higher-grade alloys with polished surfaces (typically Ra ≤ 0.8 μm) for product-contact areas.

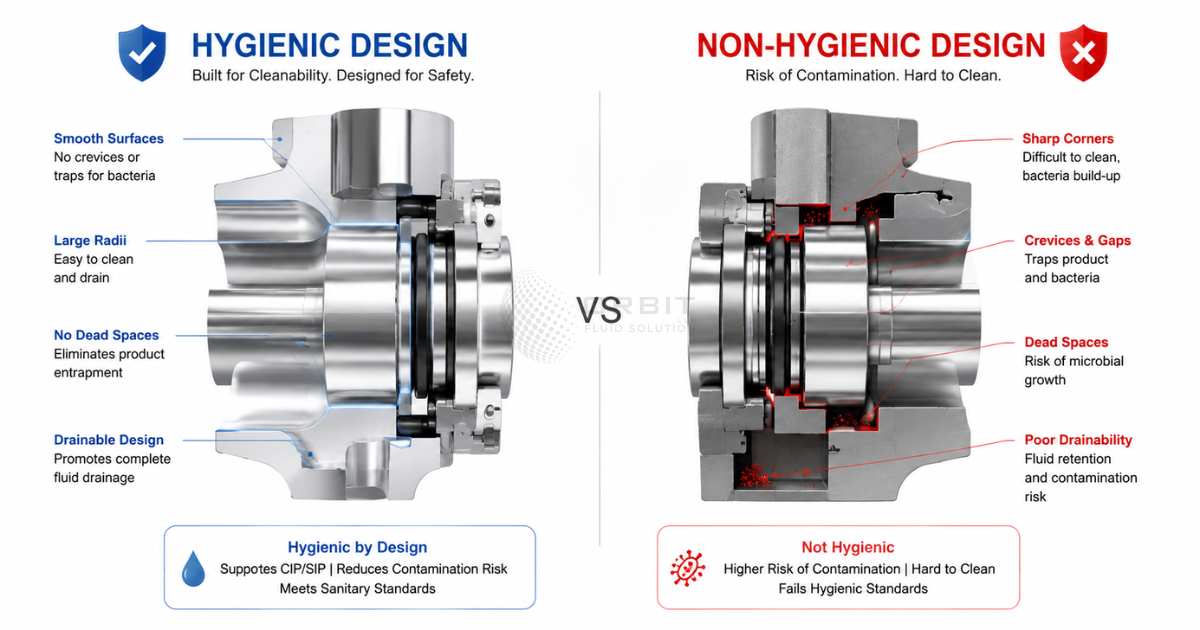

Hygienic Design Principles for Dairy Seals

Even the best materials fail if the design traps product or cleaning residue.

Key design requirements:

Smooth, crevice-free surfaces
Adequate internal radii
Easy demountability for inspection and cleaning
Minimal dead spaces
Compatibility with CIP/SIP regimes

Cartridge-style mechanical seals are often preferred because they reduce installation errors and improve cleanability compared to component seals.

Seal Types Commonly Used in Dairy Processing

Single Mechanical Seals Suitable for many milk and low-risk dairy applications when properly specified.

Double Mechanical Seals Recommended when product leakage must be prevented or when barrier fluid is required for lubrication/cooling. Barrier fluids should be food-grade (e.g., propylene glycol/water mixtures or approved synthetic fluids).

Cartridge Seals Preferred for ease of installation, reduced risk of assembly error, and better hygienic performance.

Split Seals Useful on large equipment where disassembly is extremely costly, though hygienic versions require careful evaluation.

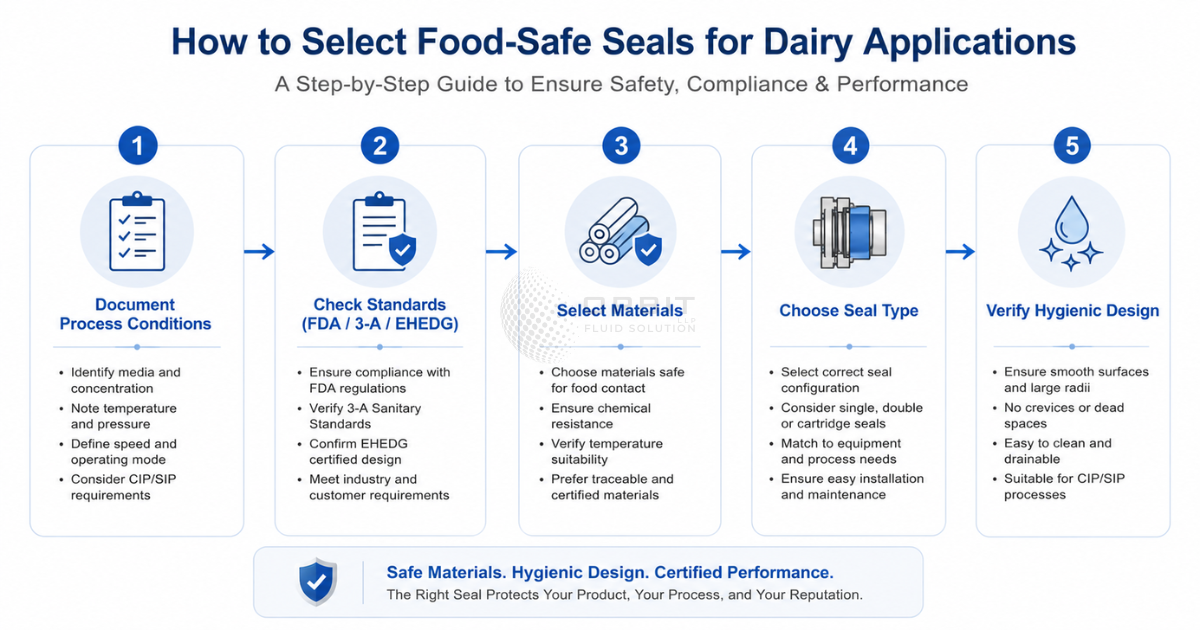

Step-by-Step Selection Process

Document process and cleaning conditions thoroughly.
Identify applicable standards (3-A, FDA, EHEDG, customer requirements).
Select primary and secondary materials based on fat content, temperature, and chemicals.
Choose seal configuration (single, double, cartridge) based on risk and maintainability.
Verify hygienic design features and surface finish.
Request compliance documentation and, where possible, application references.
Plan for installation and maintenance best practices.

Common Mistakes to Avoid

Selecting seals based only on product contact without considering CIP/SIP severity
Using standard industrial seals in hygienic applications
Ignoring fat content when choosing elastomers
Overlooking surface finish and cleanability requirements
Failing to maintain proper installation and alignment

How Orbit Fluid Solution LLP Supports Dairy Processors

At Orbit Fluid Solution LLP, we design and supply food-safe seals specifically engineered for dairy and other hygienic applications. Our solutions emphasize:

Compliance-ready materials meeting FDA, 3-A, and EHEDG expectations
Hygienic mechanical seal designs with excellent cleanability
Support for both standard and custom requirements
Focus on reducing unplanned downtime and supporting reliable CIP performance

We work with dairy processors to match the right seal technology to real operating conditions — not just catalog specifications.

Protect Every Drop

Selecting the right food-safe seals for dairy processing is a technical decision with direct impact on product safety, regulatory compliance, and plant efficiency. By focusing on process conditions, material compatibility, hygienic design, and proven standards, you can significantly reduce risk and improve reliability.

Start with a clear understanding of your CIP/SIP regime and fat content. Choose materials and designs that survive those conditions. And partner with a supplier who understands both the technical and regulatory demands of the dairy industry.

Ready to review your current seal performance or specify new equipment? Contact the team at Orbit Fluid Solution LLP for application-specific guidance.
