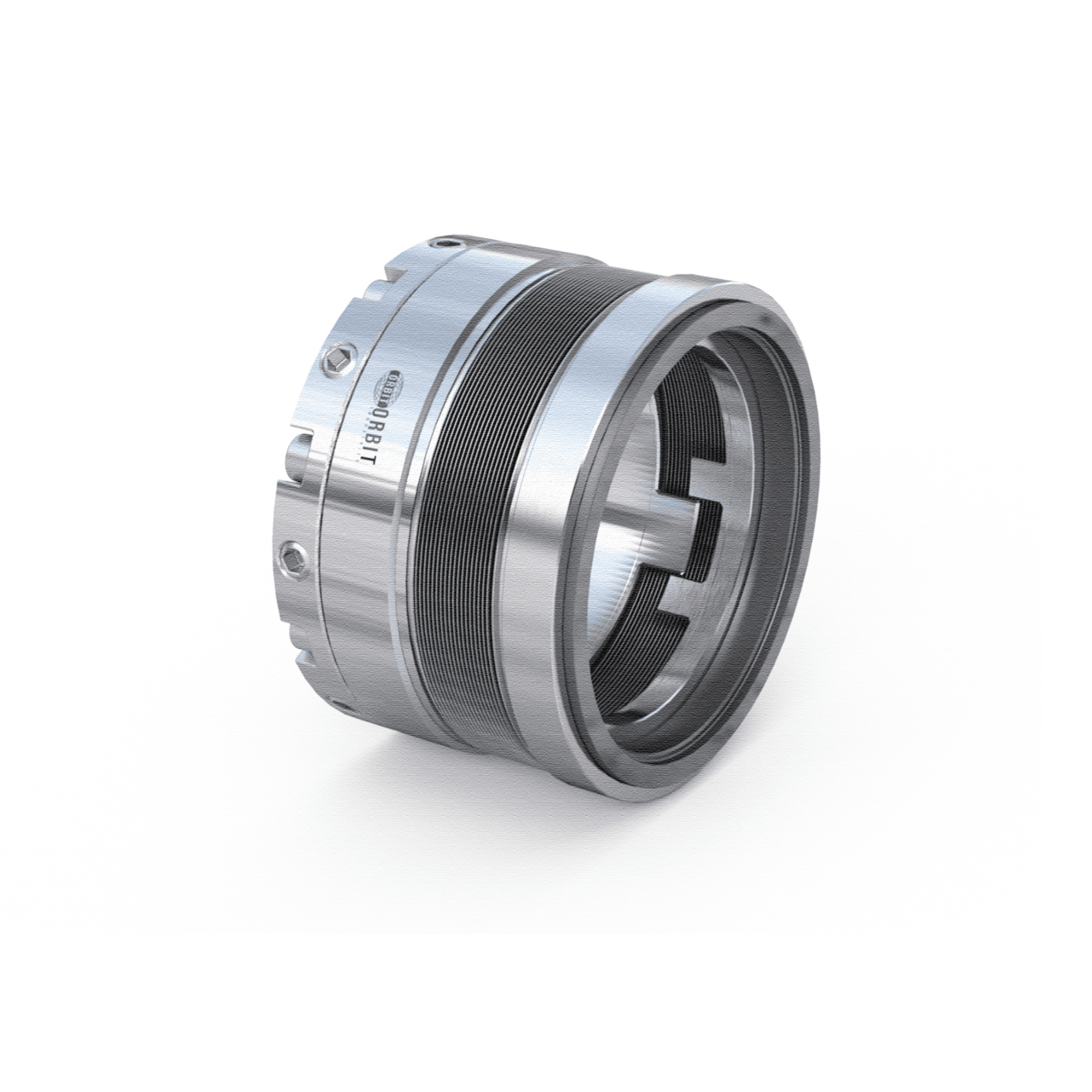

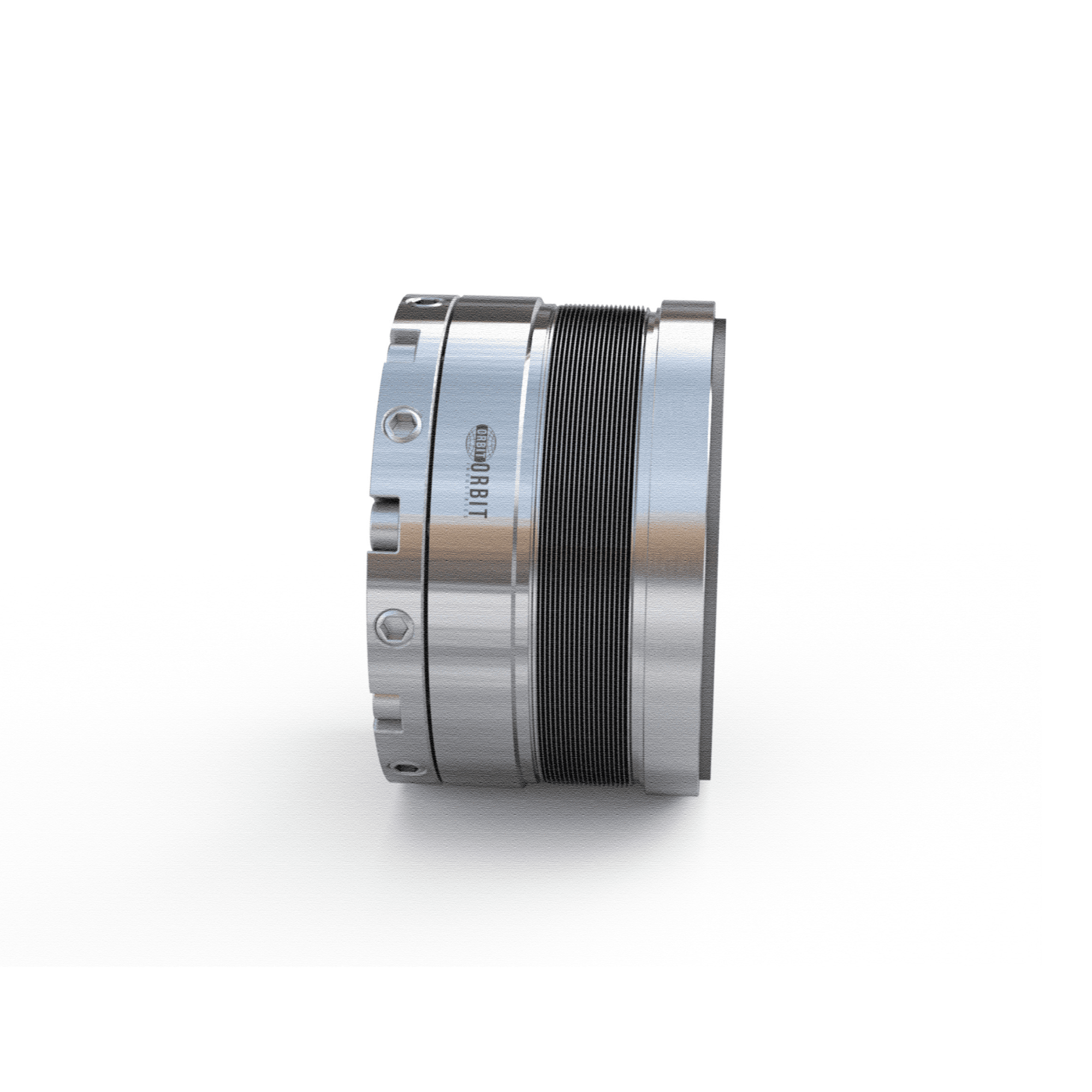

Description
Applications of ORMGH Metal Bellow Seal
The ORMGH metal bellow seal is tailor-made for:
- Viscous Media Handling: Ideal for sealing high-viscosity fluids in various industrial processes.
- High-Temperature Environments: Withstands extreme temperatures in industries such as petrochemical and oil refining.
- Hydrocarbon Processing: Provides effective sealing for hydrocarbon-based fluids, ensuring operational safety and efficiency.
- Aggressive Fluids: Compatible with fluids containing chemicals or abrasive particles, maintaining high reliability.
Key Operating Parameters
- Shaft Diameter: 25 to 100 mm
- Pressure Tolerance: Up to 10 Bars
- Temperature Range: -20°C to 350°C
- Maximum Speed: Up to 25 m/s
Material Specifications
The ORMGH seal is constructed using high-grade materials for durability and compatibility with challenging fluids:
- Seal Faces:
- Carbon
- Silicon Carbide (SiC)
- Tungsten Carbide (TC)
- Secondary Seals:
- FFKM (Perfluoroelastomer)
- FKM (Viton)
- PTFE
- Flexible Graphite
- Metal Components:
- Stainless Steel (SS-316)
- Hastelloy-C
- Inconel-718
- Bellows:
- Inconel-718
- Hastelloy-C
- AM-350
Special Features of ORMGH Metal Bellow Seal
- Lug Drive Design: Ensures secure and stable engagement, ideal for handling viscous fluids.
- High Axial Flexibility: Compensates for misalignments and thrust movements, ensuring consistent sealing performance.
- No Dynamic O-Rings: Eliminates potential damage to the shaft or sleeve, reducing maintenance needs.
- Flexible Graphite Packing: Provides superior secondary sealing for high-temperature and viscous fluid applications.
- Inherent Balance: Reduces heat generation and wear, extending the seal’s operational life.
- Compact Design: Requires minimal axial and radial space, suitable for equipment with space constraints.
- Ease of Installation: Simplified design ensures quick and efficient setup, reducing downtime.
Industries Benefiting from ORMGH Metal Bellow Seal
The ORMGH seal is trusted by industries worldwide for its ability to handle high-viscosity fluids and extreme temperatures:
- Chemical Processing: Ensures reliable sealing for chemically aggressive and viscous substances.
- Oil & Gas Sector: Delivers effective performance in refining, transportation, and hydrocarbon processing.
- Pulp & Paper: Ideal for applications involving viscous process chemicals and slurries.
- Petrochemicals: Handles high-temperature and viscous hydrocarbon streams with ease.
- Pharmaceutical Industry: Provides reliable sealing in sterile and process-intensive environments.
Seal Diagram
Dimensional Data
Dimensional Data Metrics| Inches | Metric | |||||
|---|---|---|---|---|---|---|
| Dash Size | D1 | D2 | L1 | D1 | D2 | L1 |
| -16 | 0.75 | 1.625 | 2.312 | 19.05 | 41.28 | 58.72 |
| -18 | 0.875 | 1.75 | 2.343 | 22.23 | 44.45 | 59.51 |
| -20 | 1 | 1.875 | 2.343 | 25.4 | 47.63 | 59.51 |
| -22 | 1.125 | 2 | 2.375 | 28.58 | 50.8 | 60.33 |
| -24 | 1.25 | 2.125 | 2.375 | 31.75 | 53.98 | 60.33 |
| -26 | 1.375 | 2.25 | 2.468 | 34.93 | 57.15 | 62.69 |
| -28 | 1.5 | 2.375 | 2.5 | 38.1 | 60.33 | 63.5 |
| -30 | 1.625 | 2.5 | 2.5 | 41.28 | 63.5 | 63.5 |
| -32 | 1.75 | 2.625 | 2.531 | 44.45 | 66.68 | 64.29 |
| -34 | 1.875 | 2.75 | 2.531 | 47.63 | 69.85 | 64.29 |
| -36 | 2 | 2.875 | 2.562 | 50.8 | 73.03 | 65.07 |
| -38 | 2.125 | 3 | 2.562 | 53.98 | 76.2 | 65.07 |
| -40 | 2.25 | 3.25 | 2.75 | 57.15 | 82.55 | 69.85 |
| -42 | 2.375 | 3.375 | 2.781 | 60.33 | 85.73 | 70.64 |
| -44 | 2.5 | 3.5 | 2.781 | 63.5 | 88.9 | 70.64 |
| -46 | 2.625 | 3.687 | 2.875 | 66.68 | 93.65 | 73.03 |
| -48 | 2.75 | 3.812 | 3 | 69.85 | 96.82 | 76.2 |
| -50 | 2.875 | 4 | 3 | 73.03 | 101.6 | 76.2 |
| -52 | 3 | 4.125 | 3 | 76.2 | 104.78 | 76.2 |
| -54 | 3.125 | 4.25 | 3 | 79.38 | 107.95 | 76.2 |
| -56 | 3.25 | 4.375 | 3 | 82.55 | 111.13 | 76.2 |
| -58 | 3.375 | 4.5 | 3 | 85.73 | 114.3 | 76.2 |
| -60 | 3.5 | 4.625 | 3 | 88.9 | 117.48 | 76.2 |
| -62 | 3.625 | 4.75 | 3 | 92.08 | 120.65 | 76.2 |
| -64 | 3.75 | 4.875 | 3 | 95.25 | 123.83 | 76.2 |
Why Choose Orbit Fluid Solution LLP?
Orbit Fluid Solution LLP is a leader in innovative sealing solutions, committed to delivering reliable and high-quality products tailored to industrial needs. With over three decades of expertise, we ensure that every seal we produce meets the highest standards of engineering precision and performance.
Advantages of Partnering with Orbit Fluid Solution LLP:
- Proven expertise in sealing technology.
- Custom solutions tailored to unique operational requirements.
- Global presence and trusted by leading industries worldwide.
- Robust quality assurance processes for consistent performance.
Elevate your operations with the Metal Bellow Seal for Viscous Medium ORMGH. Designed to handle highly viscous fluids with precision and reliability, this seal is your go-to solution for demanding industrial applications.
