A Beginner’s Guide to Mechanical Seals: What You Need to Know

Introduction: A Maintenance Team’s Dream Come True

Imagine a busy factory where pumps, mixers, and compressors run non-stop. Inside these machines, something small but incredibly important keeps everything working smoothly — a mechanical seal.

If you’re new to the world of industrial equipment, you might be wondering: What are mechanical seals? Why do they matter? How do they actually work?

You’re in the right place.

At Orbit Fluid Solution LLP, we’ve helped thousands of beginners — from fresh engineers to plant supervisors — understand mechanical seals. In this comprehensive beginner’s guide, we’ll walk you through everything you need to know in simple, clear language. No jargon overload. Just practical knowledge to help you get started confidently.

What Are Mechanical Seals?

A mechanical seal is a device that joins two parts of a machine (usually a rotating shaft and a stationary housing) while preventing liquid or gas from leaking out.

Think of it as a high-precision barrier. Unlike old-fashioned packing (which is like stuffing rope into a gap), mechanical seals use flat, polished surfaces that press together to create a nearly leak-proof seal.

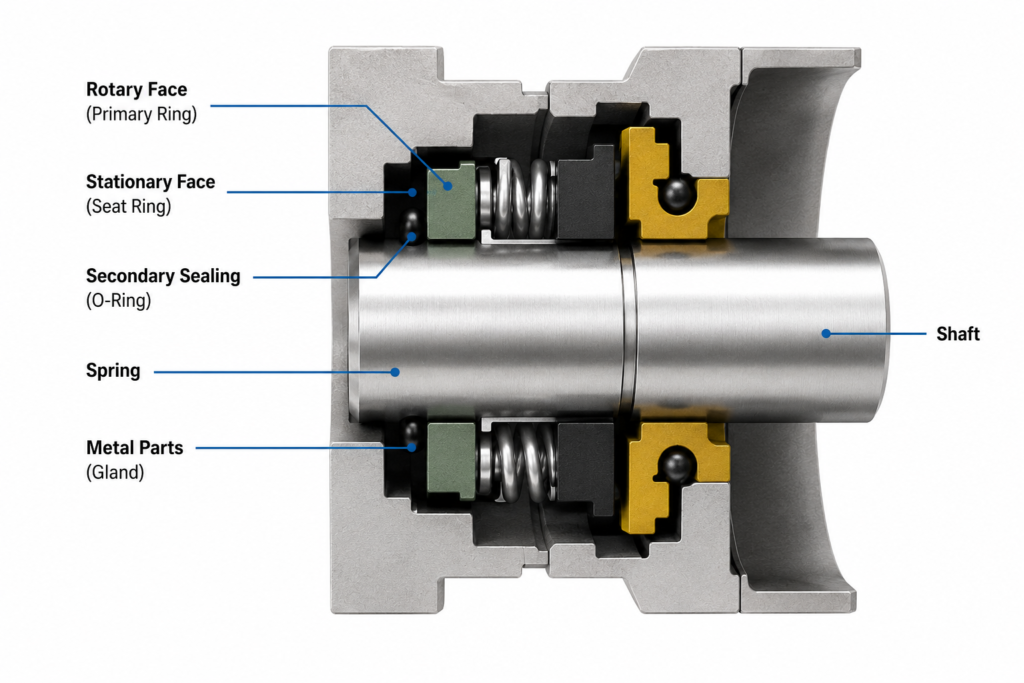

Key Parts of a Mechanical Seal:

Rotating Face — Moves with the shaft
Stationary Face — Fixed to the housing
Springs — Keep the faces pressed together
Elastomers (O-rings) — Create secondary seals
Metal Parts — Provide structure and strength

Why Do We Need Mechanical Seals?

Mechanical seals serve three critical purposes:

Prevent Leakage — Stop fluids from escaping
Protect Equipment — Reduce wear on shafts and bearings
Maintain Safety & Efficiency — Prevent hazardous leaks and reduce energy loss

Without good seals, pumps can lose efficiency, fluids can contaminate products, and dangerous chemicals can escape — creating safety hazards and costly downtime.

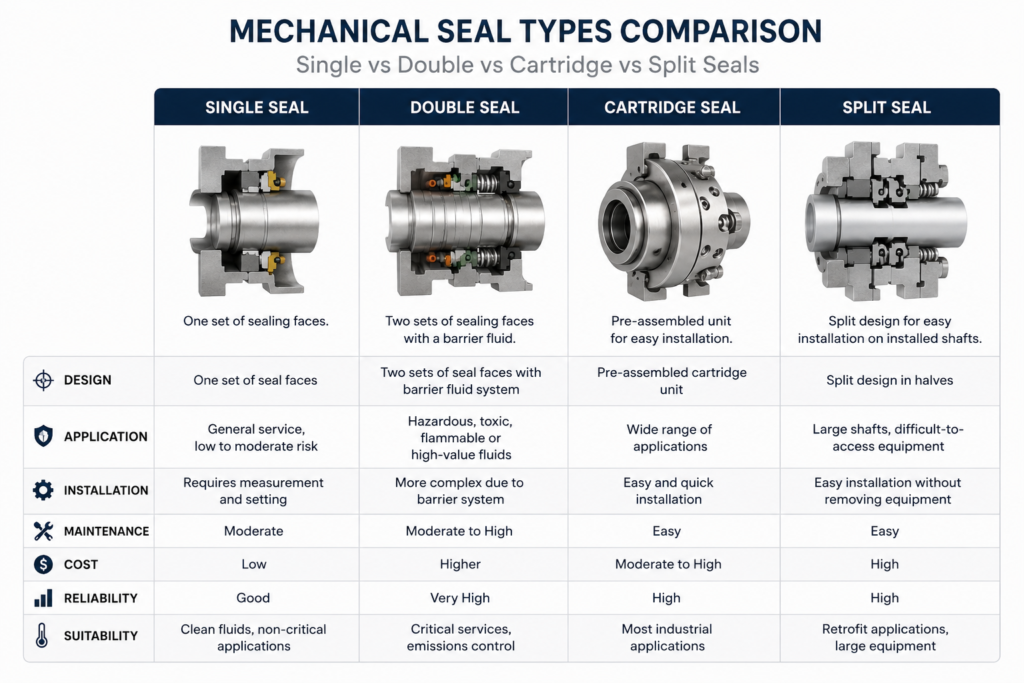

Types of Mechanical Seals

There are several types of mechanical seals. Here’s what beginners should know:

Single Mechanical Seals

The most common and simplest type. Used when leakage is not highly dangerous.
Best for: Water, oils, and non-hazardous fluids.

Double Mechanical Seals

Two seals arranged back-to-back or face-to-face with a barrier fluid between them.
Best for: Hazardous, toxic, or expensive fluids.

Cartridge Mechanical Seals

Pre-assembled units that are easy to install.
Best for: Plants that want faster maintenance.

Split Mechanical Seals

Designed in two halves so they can be installed without dismantling the pump.
Best for: Large equipment where downtime is very expensive.

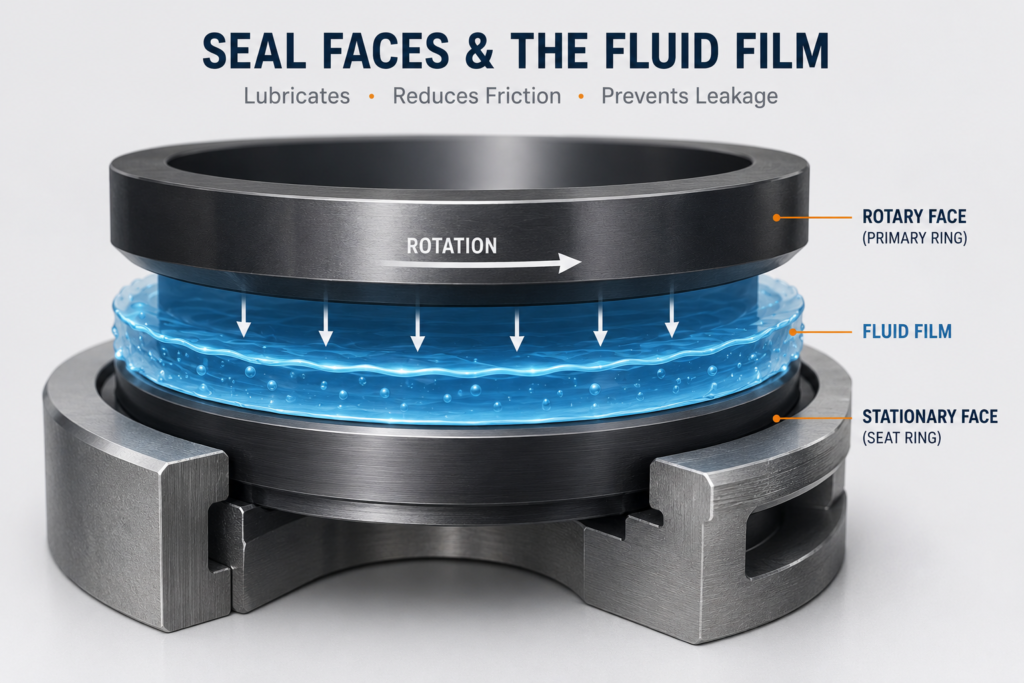

How Do Mechanical Seals Work?

The magic happens at the interface between the two seal faces.

When the pump runs, the rotating face spins against the stationary face. A very thin film of liquid (usually the fluid being pumped) lubricates the faces. Springs and hydraulic pressure keep the faces tightly pressed together, creating an excellent seal while allowing the shaft to rotate freely.

Common Materials Used in Mechanical Seals

Different applications need different materials:

Carbon — Good for general use, self-lubricating
Ceramic — Excellent for chemical resistance
Silicon Carbide — Very hard, great for abrasive fluids
Tungsten Carbide — Extremely durable for high-pressure applications
PTFE / Viton — Used for elastomers in chemical environments

Benefits of Using Quality Mechanical Seals

Longer equipment life
Reduced maintenance costs
Lower energy consumption
Improved safety
Less product loss
Better compliance with environmental regulations

When Should You Consider Upgrading Your Seals?

Look for these warning signs:

Frequent leaks
Unusual noise from pumps
Increased power consumption
Frequent seal replacements
Visible wear on seal parts

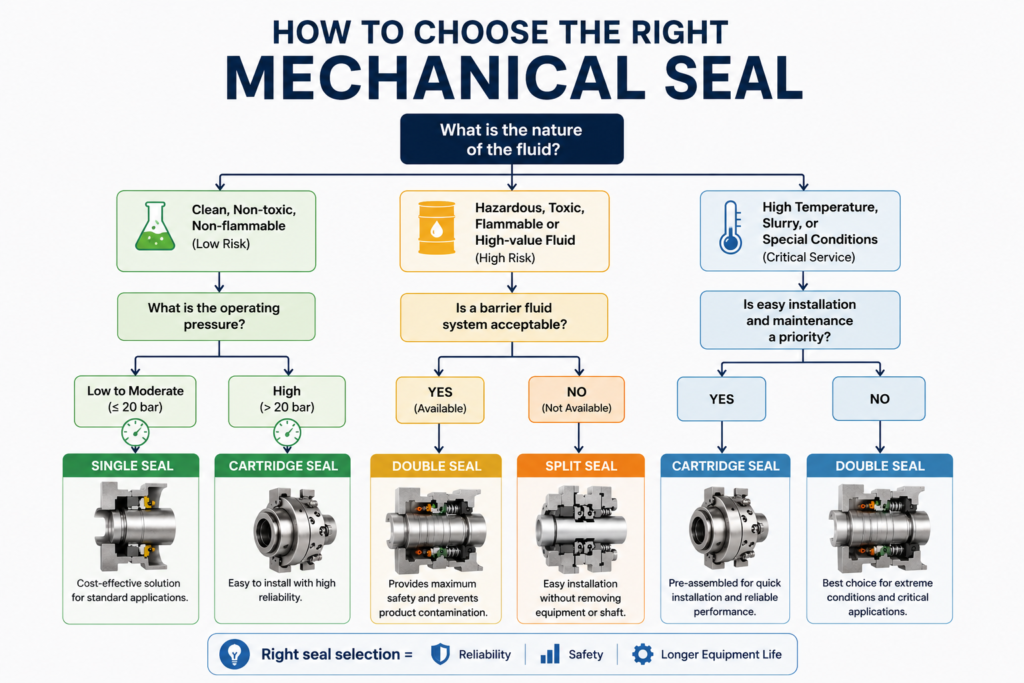

Choosing Your First Mechanical Seal

Ask yourself these questions:

What fluid is being pumped?
What is the operating temperature?
What pressure does the system run at?
How important is zero leakage?
How much downtime can you afford?

Why Choose Orbit Fluid Solution LLP?

With over 30 years of experience, Orbit Fluid Solution LLP specializes in both standard and custom mechanical seals. We help beginners and experienced professionals alike find the right solution for their specific needs — whether it’s food-grade seals, high-pressure oil & gas seals, or split seals for quick maintenance.

Your Journey with Mechanical Seals Starts Here

Understanding mechanical seals doesn’t have to be complicated. This beginner’s guide has covered the fundamentals — from what are mechanical seals to different types and how they work.

The next step? Evaluate your current equipment and consider whether your seals are still serving you well.

At Orbit Fluid Solution LLP, we’re here to help you every step of the way — from selection to installation and maintenance.

Ready to take the next step? Explore our range of mechanical seals or reach out to our team for expert advice.
