Description
Applications

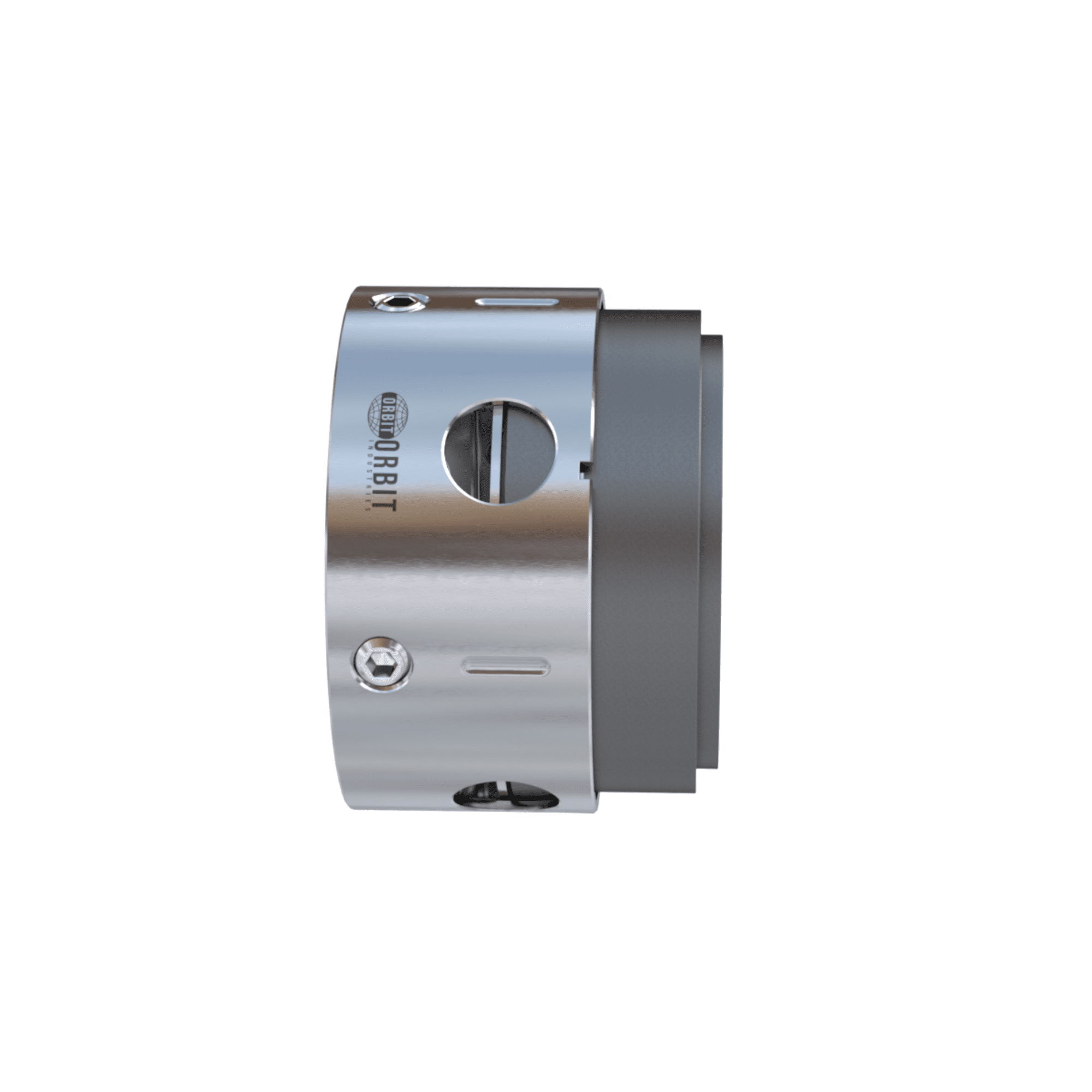

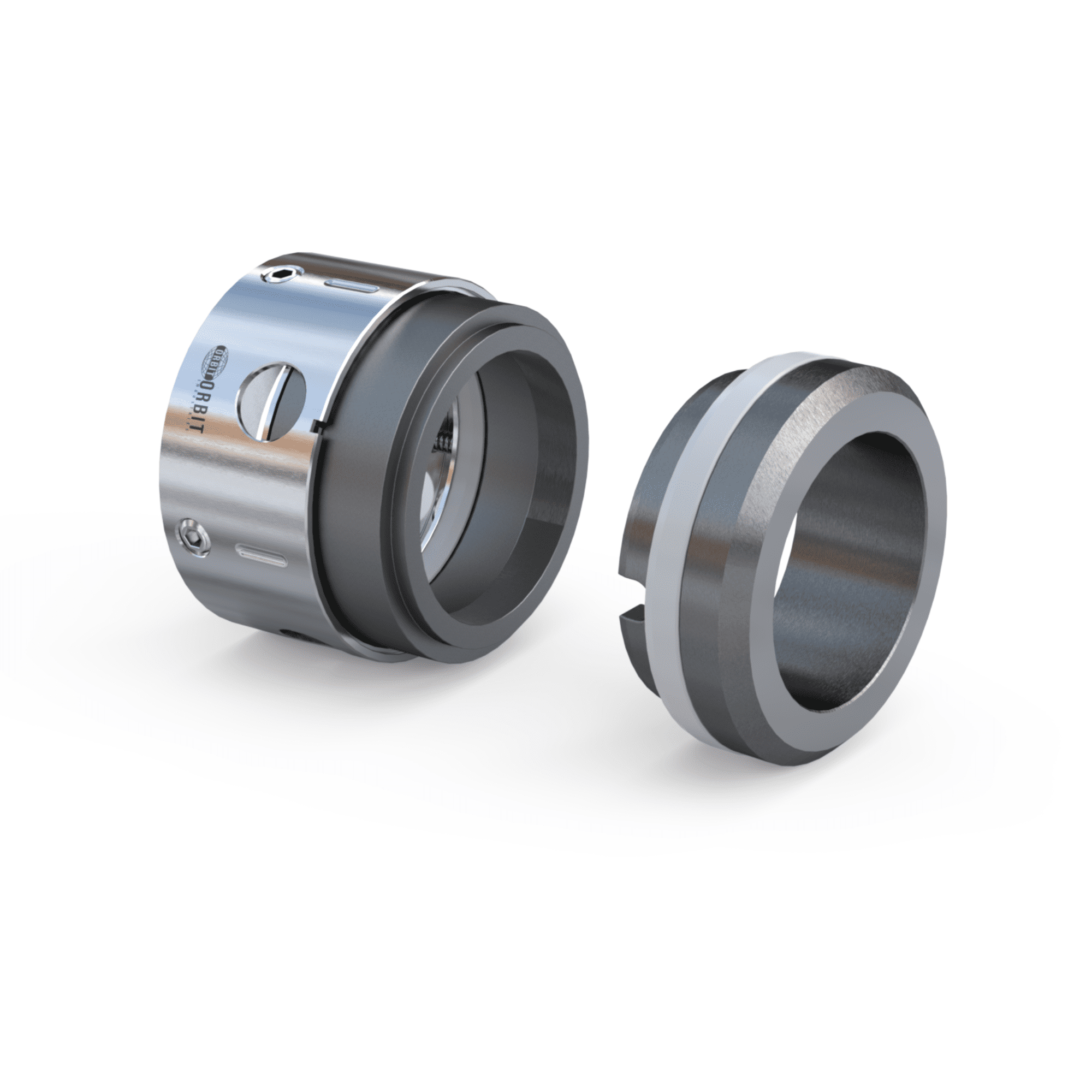

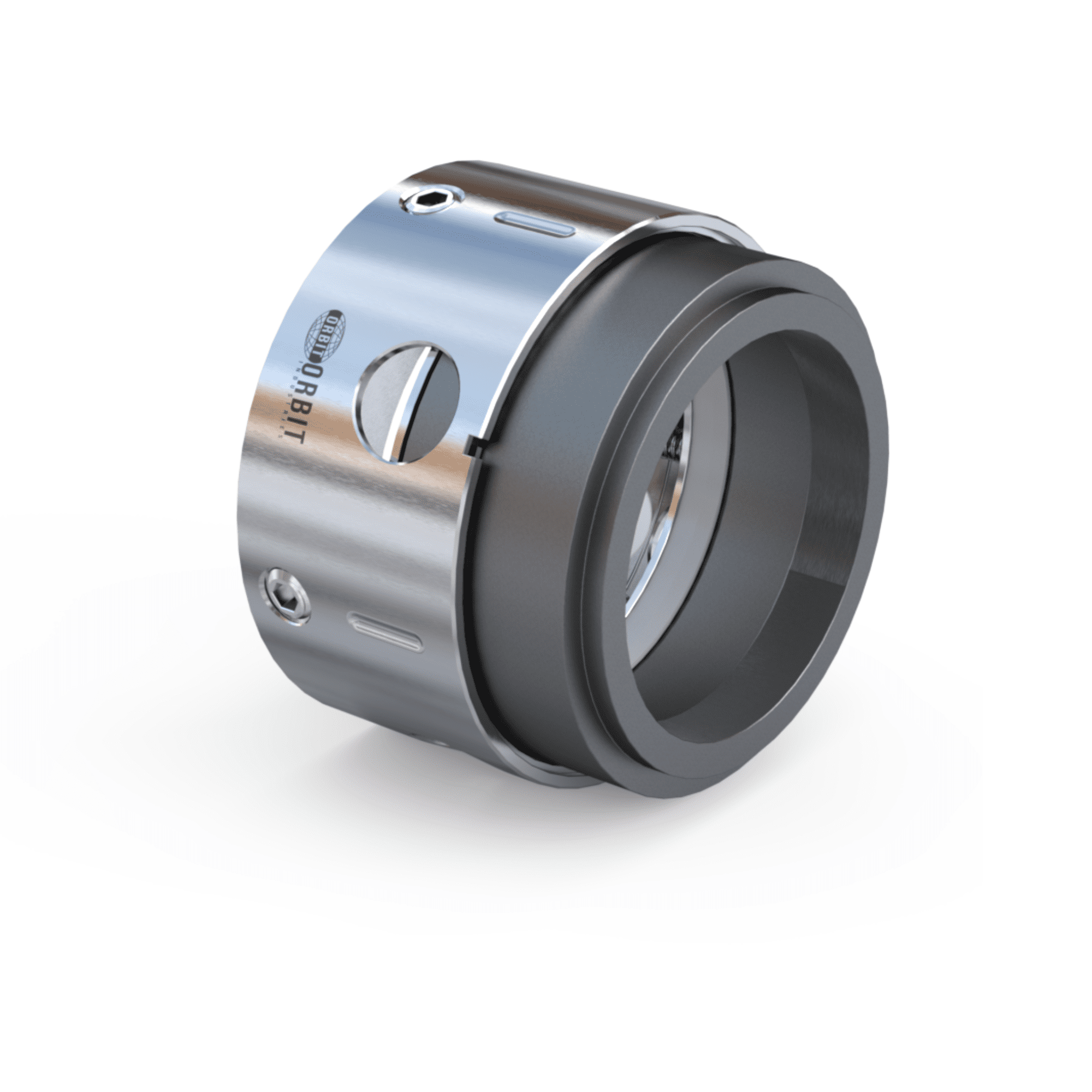

The PTFE Wedge Balanced Seal Type: 806B is designed to deliver reliable sealing performance for critical operations in:
- Pumps: Ideal for managing high-pressure fluids and maintaining operational efficiency.
- Mixers & Rotating Equipment: Ensures effective sealing under demanding operating conditions.
- Single, Back-to-Back, Face-to-Face, or Tandem Configurations: Versatility to suit varied application needs.
Industries Served
This seal is compatible with the following industries:
- Biofuels: Ensures efficiency and safety in biofuel production systems.
- Chemical Processing: Excellent corrosion resistance for aggressive chemical environments.
- Food & Beverage: Leak-proof and hygienic sealing for sensitive applications.
- Mining & Minerals: Reliable performance in abrasive and slurry-handling systems.
- Oil & Gas: Effective sealing in hydrocarbon and corrosive fluid environments.
- Power Generation: Guarantees safe and efficient operations in power plants.
- Pulp & Paper: Withstands high-viscosity and slurry media.
- Pharmaceutical: High-precision sealing for contamination-sensitive processes.
- Petrochemicals: Robust design for demanding petrochemical applications.
Operating Parameters
The Type 806B is optimized for high performance under the following conditions:
- Shaft Diameter: 10 to 150 mm
- Pressure: Up to 25 Bars
- Temperature: -25°C to 220°C
- Speed: Up to 25 m/s
Seal Diagram
Dimensional Data
Dimensional Data Metrics| D1 | D2 | D3 | D4 | D5 | D6 | D7 | d1 | d2 | a | L1 | L2 | L3 | L4 | L5 | L6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 18 | 32 | 34 | 21 | 25 | 18 | 3 | 4 | 1.5 | 30.5 | 20 | 4 | 8.5 | 3 | 4.5 |
| 16 | 20 | 34 | 36 | 23 | 27 | 18 | 3 | 4 | 1.5 | 30.5 | 20 | 4 | 8.5 | 3 | 5.5 |
| 18 | 22 | 36 | 38 | 27 | 33 | 18 | 3 | 4 | 2 | 31.5 | 20 | 5 | 9 | 3 | 4.8 |
| 20 | 24 | 38 | 40 | 29 | 35 | 18 | 3 | 4 | 2.0. | 31.5 | 24.5 | 5 | 9 | 3 | 4.8 |
| 22 | 26 | 40 | 42 | 31 | 37 | 18 | 3 | 4 | 2 | 31.5 | 25 | 5 | 9 | 3 | 4.8 |
| 24 | 28 | 42 | 44 | 33 | 39 | 18 | 3 | 4 | 2 | 34.2 | 25 | 5 | 9 | 3 | 4.8 |
| 25 | 30 | 44 | 46 | 34 | 40 | 19 | 3 | 4 | 2 | 34.5 | 34 | 5 | 9 | 3 | 7 |
| 28 | 33 | 47 | 49 | 37 | 43 | 19 | 3 | 4 | 2 | 37.5 | 27 | 5 | 9 | 3 | 7 |
| 30 | 35 | 49 | 51 | 39 | 45 | 19 | 3 | 4 | 2 | 38 | 30 | 5 | 9 | 3 | 7 |
| 32 | 38 | 54 | 58 | 42 | 48 | 22 | 3 | 4 | 2 | 38 | 33 | 5 | 9 | 4 | 7 |
| 33 | 38 | 54 | 58 | 42 | 48 | 21 | 3 | 4 | 2 | 38 | 33 | 5 | 9 | 4 | 7 |
| 35 | 40 | 56 | 60 | 44 | 50 | 21 | 3 | 4 | 2 | 38 | 33 | 5 | 9 | 4 | 7 |
| 38 | 43 | 59 | 63 | 49 | 56 | 21 | 4 | 5 | 2 | 39.5 | 40 | 6 | 9 | 4 | 7 |
| 40 | 45 | 61 | 65 | 51 | 58 | 21 | 4 | 6 | 2 | 39.5 | 31.75 | 6 | 9 | 4 | 8.5 |
| 43 | 48 | 64 | 68 | 54 | 61 | 21 | 4 | 6 | 2 | 39.5 | 40 | 6 | 9 | 4 | 8.5 |
| 45 | 50 | 66 | 70 | 56 | 63 | 21 | 4 | 6 | 2 | 39.5 | 31.75 | 6 | 9 | 4 | 8.5 |
| 48 | 53 | 69 | 73 | 59 | 66 | 21 | 4 | 6 | 2 | 39.5 | 40 | 6 | 9 | 6 | 8.5 |
| 50 | 55 | 71 | 75 | 62 | 70 | 21 | 4 | 6 | 2.5 | 44 | 40 | 6 | 9 | 6 | 8.5 |
| 53 | 58 | 78 | 83 | 65 | 73 | 25 | 4 | 6 | 2.5 | 44 | 40 | 6 | 9 | 6 | 8.5 |
| 55 | 60 | 80 | 85 | 67 | 75 | 25 | 4 | 6 | 2.5 | 44 | 40 | 6 | 9 | 6 | 8.5 |
| 58 | 63 | 83 | 88 | 70 | 78 | 25 | 4 | 6 | 2.5 | 49 | 38.1 | 6 | 9 | 6 | 8.5 |
| 60 | 65 | 85 | 90 | 72 | 80 | 25 | 4 | 6 | 2.5 | 49 | 38.1 | 6 | 9 | 6 | 8.5 |
| 63 | 68 | 88 | 93 | 75 | 83 | 25 | 4 | 6 | 2.5 | 49 | 38.1 | 6 | 9 | 6 | 8.5 |
| 65 | 70 | 90 | 95 | 77 | 85 | 25 | 4 | 6 | 2.5 | 49 | 38.1 | 6 | 9 | 6 | 8.5 |
| 70 | 75 | 95 | 104 | 83 | 92 | 25 | 4 | 6 | 2.5 | 55.5 | 38.1 | 7 | 9 | 8 | 8.5 |
| 75 | 80 | 104 | 109 | 88 | 97 | 29 | 4 | 6 | 2.5 | 55.5 | 38.1 | 7 | 9 | 8 | 8.5 |
| 80 | 85 | 109 | 114 | 95 | 105 | 29 | 4 | 6 | 3 | 55 | 38.1 | 7 | 9 | 8 | 8.5 |
| 85 | 90 | 114 | 119 | 100 | 110 | 29 | 4 | 6 | 3 | 60 | 38.1 | 7 | 9 | 8 | 8.5 |
| 90 | 95 | 119 | 124 | 105 | 115 | 29 | 4 | 6 | 3 | 60 | 38.1 | 7 | 9 | 8 | 8.5 |
| 95 | 100 | 124 | 129 | 110 | 120 | 29 | 4 | 6 | 3 | 60 | 38.1 | 7 | 9 | 8 | 8.5 |
| 100 | 105 | 129 | 134 | 115 | 125 | 29 | 4 | 6 | 3 | 60 | 38.1 | 7 | 9 | 8 | 8.5 |
Materials of Construction
Crafted from premium-grade materials, the Type 806B ensures durability and compatibility:
- Seal Faces: Carbon, Silicon Carbide (SiC), Tungsten Carbide (TC)
- Secondary Seals: FFKM, FKM, PTFE
- Metal Components: SS-316, Hastelloy-C, Inconel-718
Key Features
- PTFE Wedge Design: Provides exceptional chemical resistance and effective sealing.
- Hydraulically Balanced: Ideal for high-pressure applications.
- Compact Construction: Minimal axial and radial space required for installation.
- High RPM Compatibility: Ensures reliable performance at high rotational speeds.
- Customizable Torque Drive Options: Choose between Pin or Key Drive configurations for enhanced flexibility.
- Versatile Configurations: Compatible with single, back-to-back, face-to-face, or tandem arrangements.
- Rugged & Reliable: Built for consistent operation in challenging environments.
