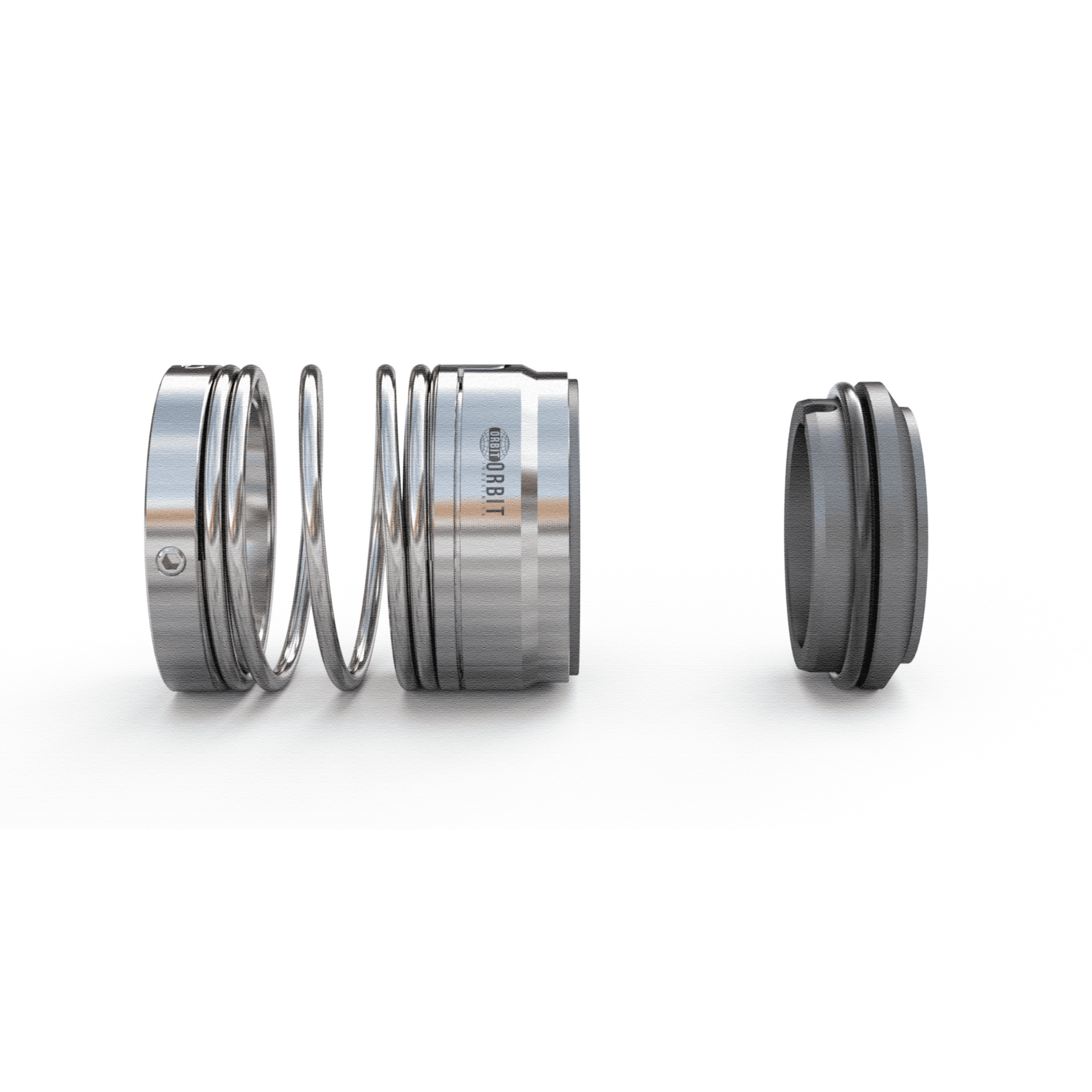

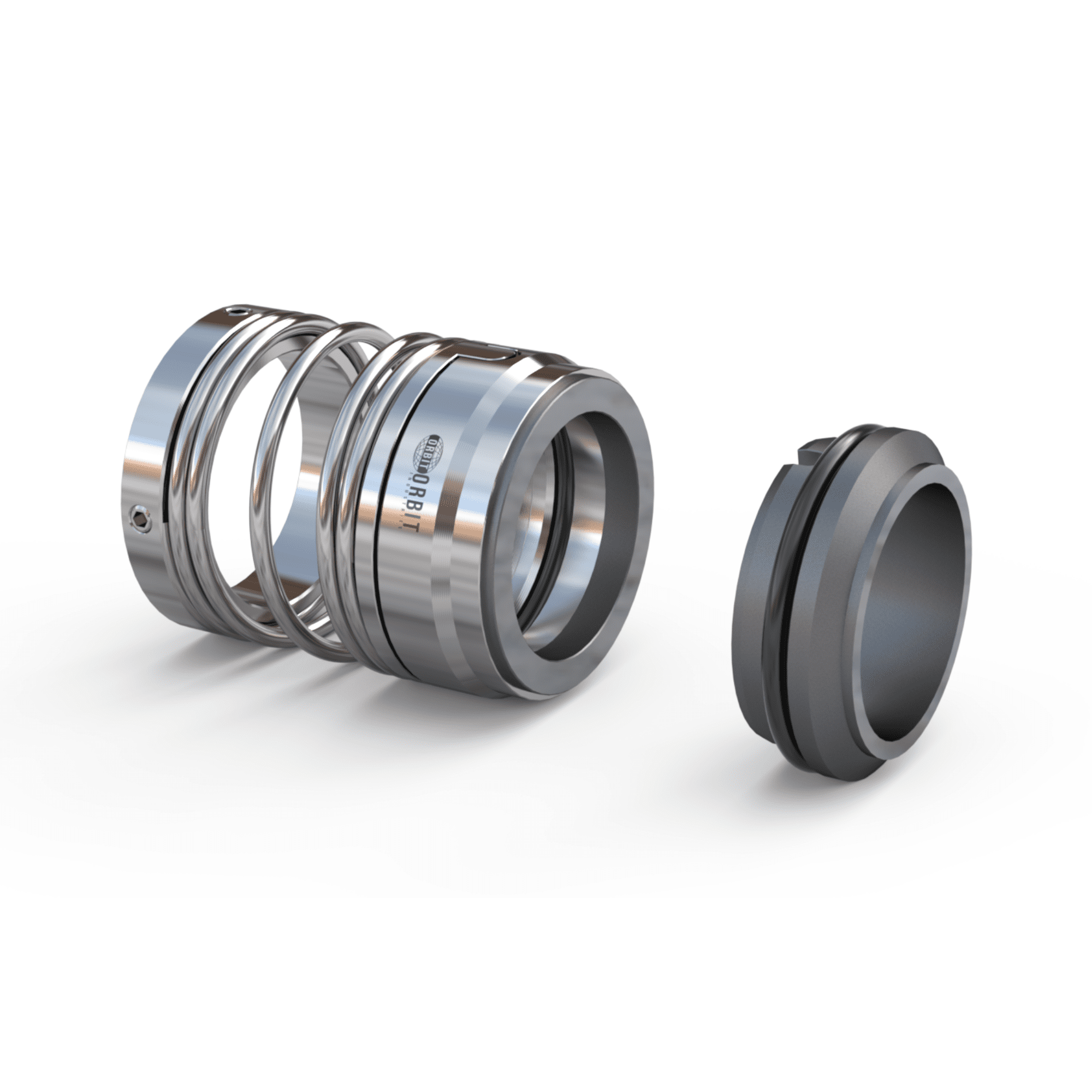

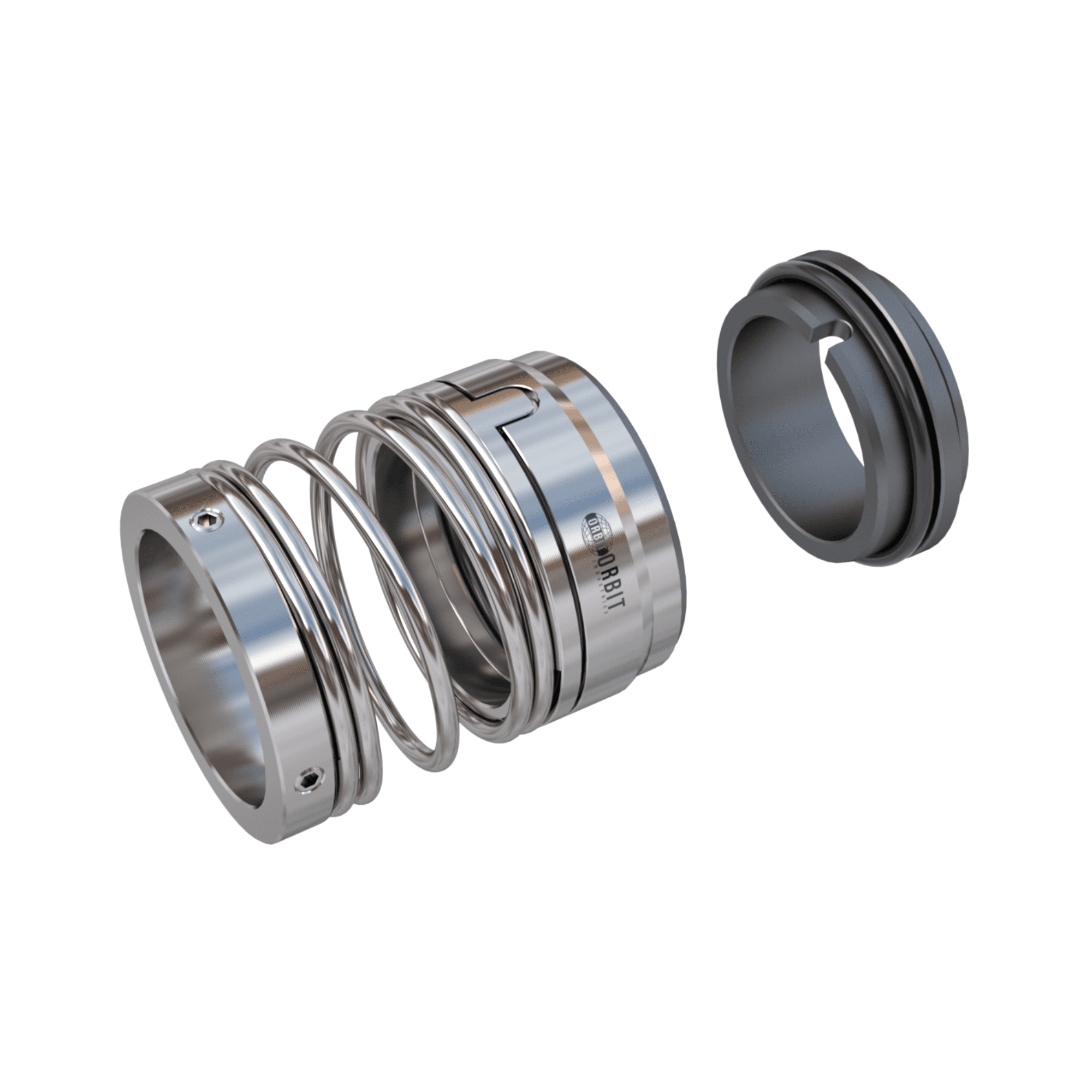

Description

Applications

The Type 1508 offers unmatched versatility for handling:

• Sludges, Slurries, and Thick Syrups: Reliable sealing for viscous and abrasive fluids.
• Polymerizing Fluids: Effective in handling fluids prone to solidification.
• Single and Double Seal Configurations: Adaptable to varied operational requirements.

The seal’s compact and robust design makes it ideal for pumps, mixers, and reactors across diverse industries.

---

Industries Served

This high-performance seal is suitable for the following industries:

1. Chemical: Ideal for handling corrosive and volatile substances.
2. Food & Beverage: Ensures safe and leak-proof sealing for food-grade applications.
3. Mining & Minerals: Reliable in abrasive and slurry-laden environments.
4. Oil & Gas: Delivers dependable sealing under varying pressures and temperatures.
5. Power Generation: Ensures efficiency and safety in power plant operations.
6. Pulp & Paper: Withstands the demands of slurry and high-viscosity media.
7. Petrochemicals: Robust performance in challenging petrochemical applications.
8. Pharmaceutical: Hygienic, reliable solutions for pharmaceutical manufacturing processes.

---

Operating Parameters

The Single Coil Slurry Seal Type 1508 is engineered to perform under the following conditions:

• Shaft Diameter: 24 to 100 mm
• Pressure: Up to 12 Bars
• Temperature: -20°C to 160°C
• Speed: Up to 20 m/s

---

Seal Diagram

---

Dimensional Data

Dimensional Data Metrics

D1	D2	D3	D4	D5	D6	L1	L3	L2	d1
24	20	38	40	33	39	49	11.5	42	3
25	22	40	40	34	40	49	11.5	42	3
26	22	40	42	34	40	49	11.5	42	3
28	24	42	44	37	43	51	11.5	44	3
30	25	44	46	39	45	51	11.5	44	3
33	28	47	49	42	48	51	11.5	44	3
35	30	49	51	44	50	55	11.5	48	3
38	33	54	58	49	56	58	14	51	3
40	35	56	60	51	58	60	14	53	3
43	38	59	63	54	61	61	14	53	4
45	40	61	65	56	63	61	14	53	4
48	43	64	68	59	66	61	14	53	4
50	45	66	70	62	70	65	15	57	4
53	48	69	73	65	73	65	15	57	4
55	50	71	75	67	75	65	15	57	4
58	53	76	83	70	78	68	15	59	4
60	55	78	85	72	80	68	15	59	4
63	58	81	88	75	83	68	15	59	4
65	60	84	90	77	85	72	15	63	4
68	63	87	93	81	90	72	18	63	4
70	65	90	95	83	92	73	18	64	4
75	70	95	104	88	97	75	18	66	4
80	75	100	109	95	105	75	18.2	66	4
85	80	107	114	100	110	81	18.2	72	4
90	85	112	119	105	115	82	18.2	72	4
95	90	119	124	110	120	87	18.2	77	4
100	95	124	129	115	125	87	18.2	77	4

---

Materials of Construction

The Type 1508 is built to last with premium materials:

• Seal Faces: Carbon, Silicon Carbide (SiC), Tungsten Carbide (TC)
• Secondary Seals: FFKM, FKM, PTFE
• Metal Components: SS-316, Hastelloy-C, Inconel-718

---

Key Features

1. Single Coil Spring Design: Optimized for slurry and abrasive media.
2. Hydraulically Balanced and Unbalanced Options: Easily switchable configurations for diverse fluid types.
3. V-Ring Elastomer: Ensures reliable sealing at high pressures.
4. Minimal Wear: Balanced configuration reduces friction and extends service life.
5. Robust and Compact Design: Enables seamless integration into various systems.
6. Customizable Configurations: Available in O-Ring and PTFE V-Packing versions.

---

Why Choose Orbit Fluid Solution LLP?

With a legacy of excellence in mechanical sealing technology, Orbit Fluid Solution LLP offers the Single Coil Slurry Seal Type 1508, a reliable and efficient solution for demanding applications. Its innovative design ensures minimal downtime, enhanced safety, and superior fluid handling across industries.

Contact us today to learn how the Type 1508 can elevate your operational efficiency!
