Split Seals vs. Traditional Seals: Which Is Right for Your Plant?
The Real Cost of Changing a Seal
When a mechanical seal fails, the true cost is rarely just the price of the new seal. It is the downtime, the labor, the crane rental, the lost production, and the risk of secondary damage while the equipment sits offline.
For many plants, the decision between split seals and traditional seals (component or cartridge) comes down to one question: How expensive is it to take this equipment apart?
This guide provides a clear, practical comparison of split mechanical seals versus traditional seals. We will examine installation time, total cost of ownership, reliability, limitations, and the situations where each option makes the most sense.
What Are Traditional Mechanical Seals?
Traditional mechanical seals come in two main forms:
Component Seals Individual parts (stationary seat, rotating face, springs, elastomers) that must be assembled on-site. They are usually the lowest-cost option but require skilled installation and full equipment access.

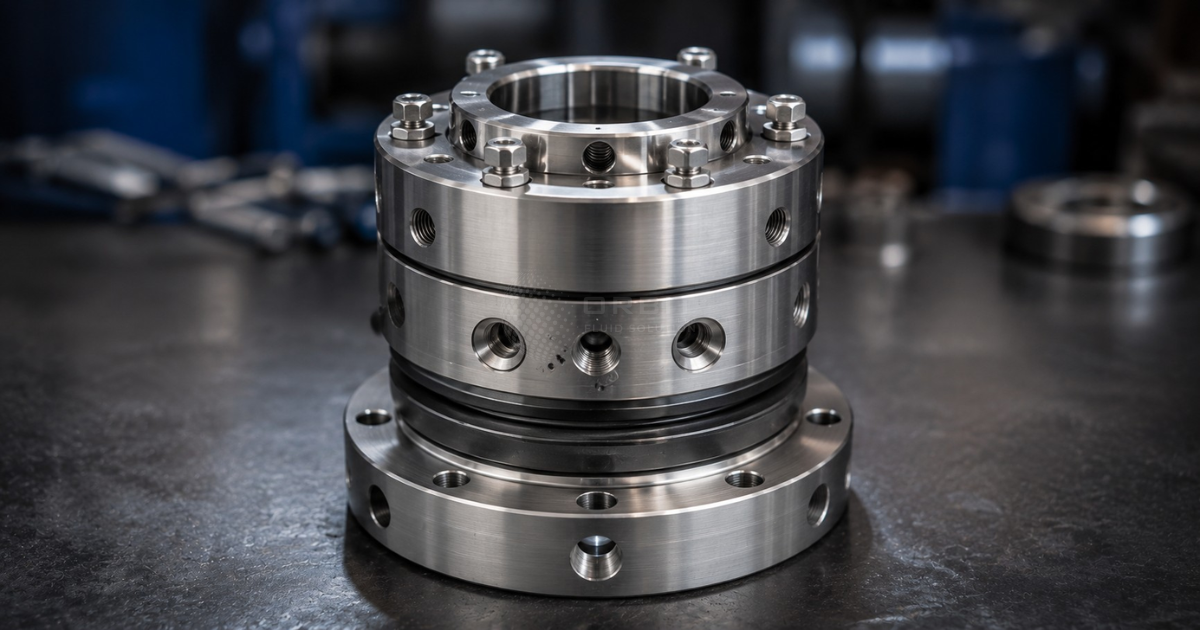

Cartridge Seals Pre-assembled units that slide onto the shaft as a single piece. They reduce installation errors and are widely preferred for critical services, but still require the pump or equipment to be partially or fully disassembled.
Both types require access to the end of the shaft. That means removing couplings, motors, bearings, or other components depending on the equipment design.
What Are Split Mechanical Seals?

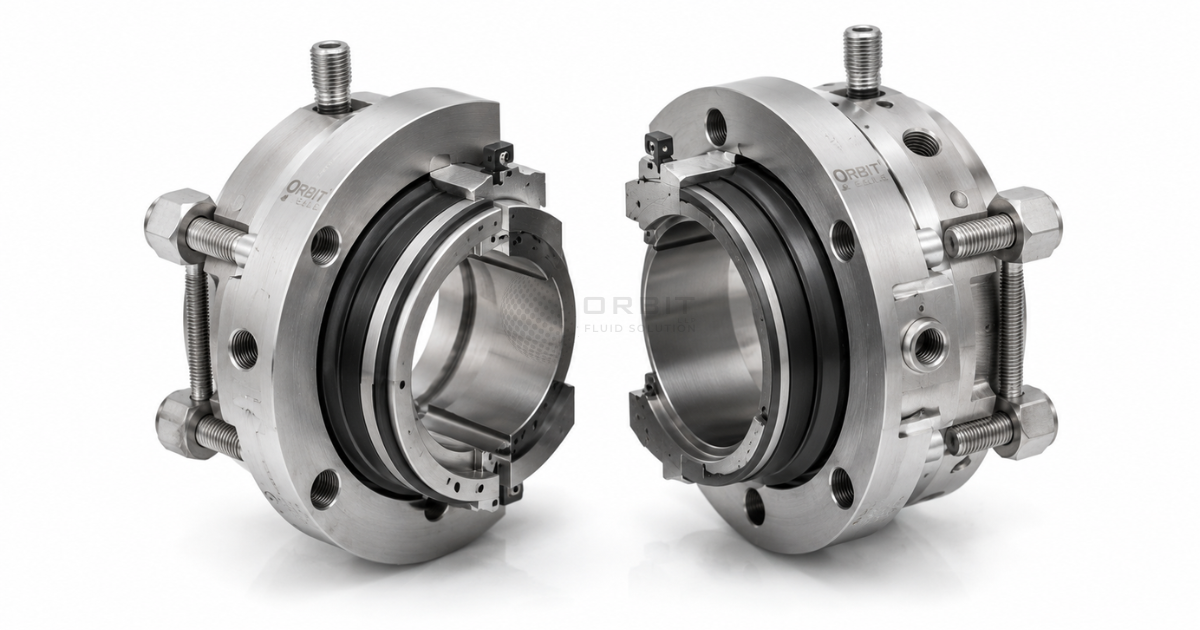

Split mechanical seals are designed in two halves that fit around the shaft. They can be installed and removed without sliding the seal over the end of the shaft and without major equipment disassembly.
Modern split seals (especially split cartridge designs) have improved significantly in precision and reliability. When the two halves are correctly joined, they form a complete sealing system.
The key advantage is simple: you only need to remove the old seal — not the motor, coupling, or large rotating assemblies.
Secondary Seals (Elastomers and PTFE)
Secondary seals (O-rings, bellows, gaskets) fail more often from chemical attack than the primary faces. Material choice here is critical.

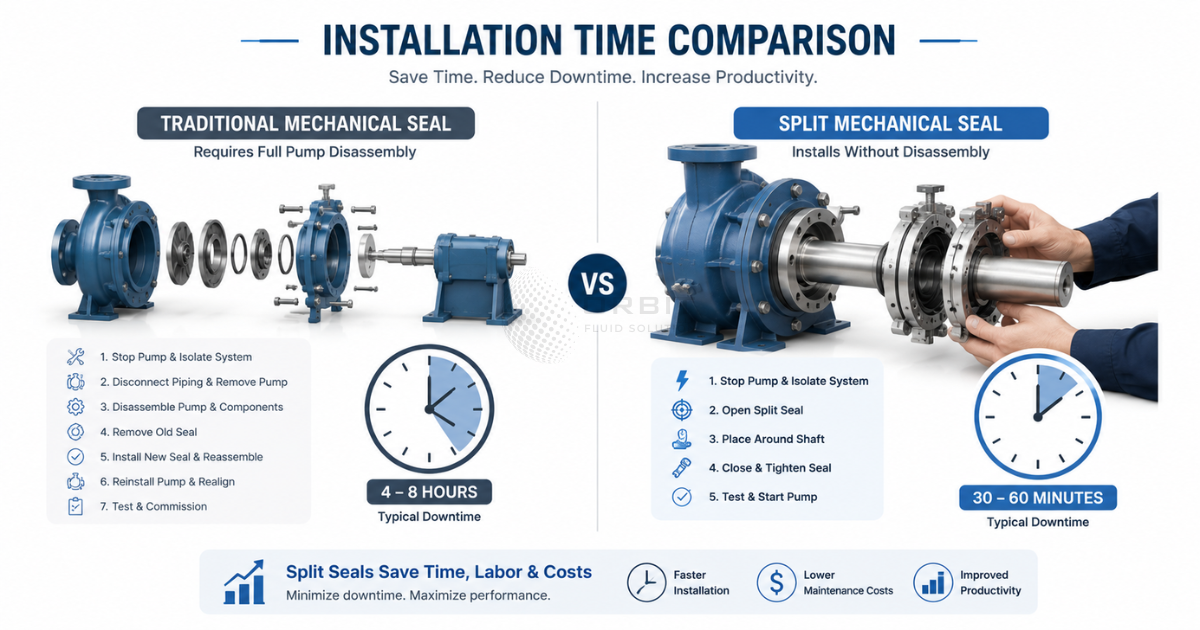

| Factor | Split Seals | Traditional Seals (Component / Cartridge) |
|---|---|---|
| Installation | No major disassembly required | Requires pump/equipment disassembly |
| Typical Install Time | 1–4 hours | Several hours to multiple days |
| Initial Cost | Higher | Lower to medium |
| Leak Paths | More (split joint) | Fewer |
| Best For | Large equipment, hard-to-access pumps | Most standard applications |
| Hazardous Fluids | Generally not preferred | Better suited |
| Skill Level Required | Moderate to high | Component: High / Cartridge: Lower |
| Total Cost of Ownership | Often lower when downtime is high | Lower when disassembly is easy and cheap |
Key Advantages of Split Seals

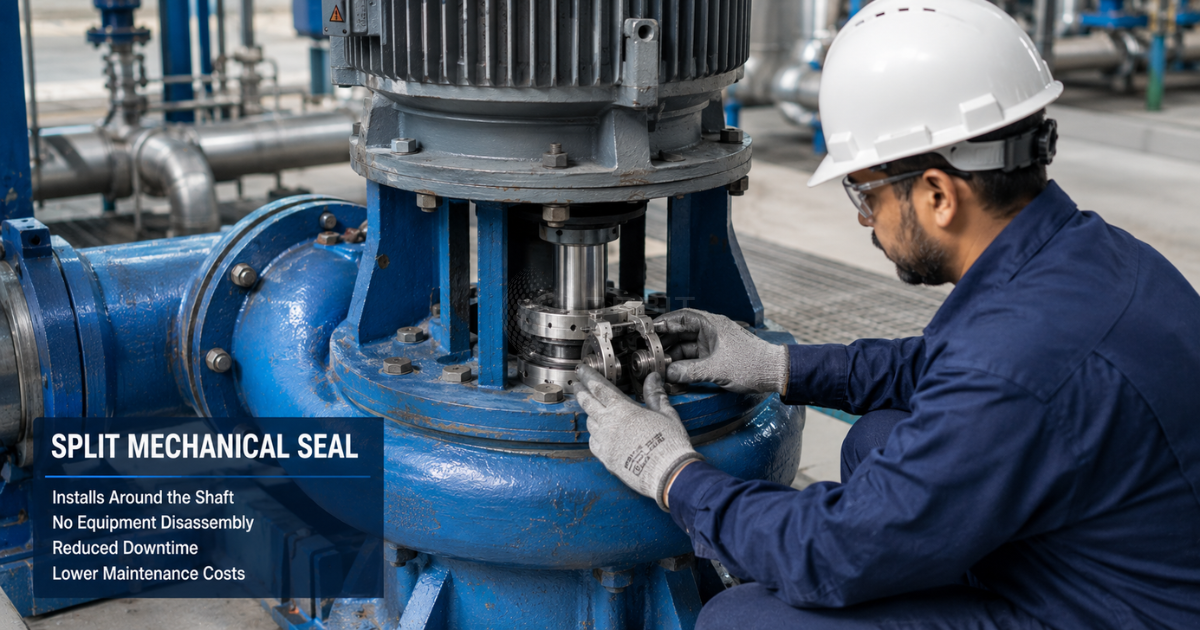

1. Dramatically Reduced Downtime The biggest benefit is the ability to change the seal without dismantling the equipment. On large pumps, mixers, or vertical equipment, this can turn a multi-day job into a few hours of work.
2. Lower Labor and Crane Costs No need to remove heavy motors, couplings, or use lifting equipment in many cases. This reduces both direct labor costs and the risk of secondary damage during disassembly.
3. Ideal for Difficult Equipment Split seals shine on:
- Large horizontal pumps
- Vertical turbine pumps
- Between-bearings designs
- Equipment with limited access
- Applications where production loss is extremely expensive
4. Strong Return on Investment Although the seal itself costs more, the savings in downtime and labor often pay for the premium in one or two changeouts — especially on larger shaft sizes (typically above 2.5 inches / 65 mm).
Limitations of Split Seals
Split seals are not the universal solution:
- More potential leak paths due to the split joint
- Generally not recommended for highly toxic, flammable, or regulated emissions applications
- Higher upfront purchase price
- Require careful assembly of the split faces and proper torque on the joining hardware
- Not always the most economical choice on small, easy-to-service pumps
Advantages of Traditional Seals
1. Lower Initial Cost Component seals are usually the cheapest option. Cartridge seals cost more than component seals but still often less than split designs.
2. Fewer Leak Paths Solid (non-split) designs generally offer better containment, making them preferable for hazardous or high-pressure services.
3. Proven Reliability Across a Wide Range Traditional seals have a long track record and are available in almost every material combination and arrangement (single, double, tandem, etc.).
4. Better for Critical and Hazardous Services When zero leakage of dangerous fluids is required, traditional cartridge or dual seals are usually the safer choice.

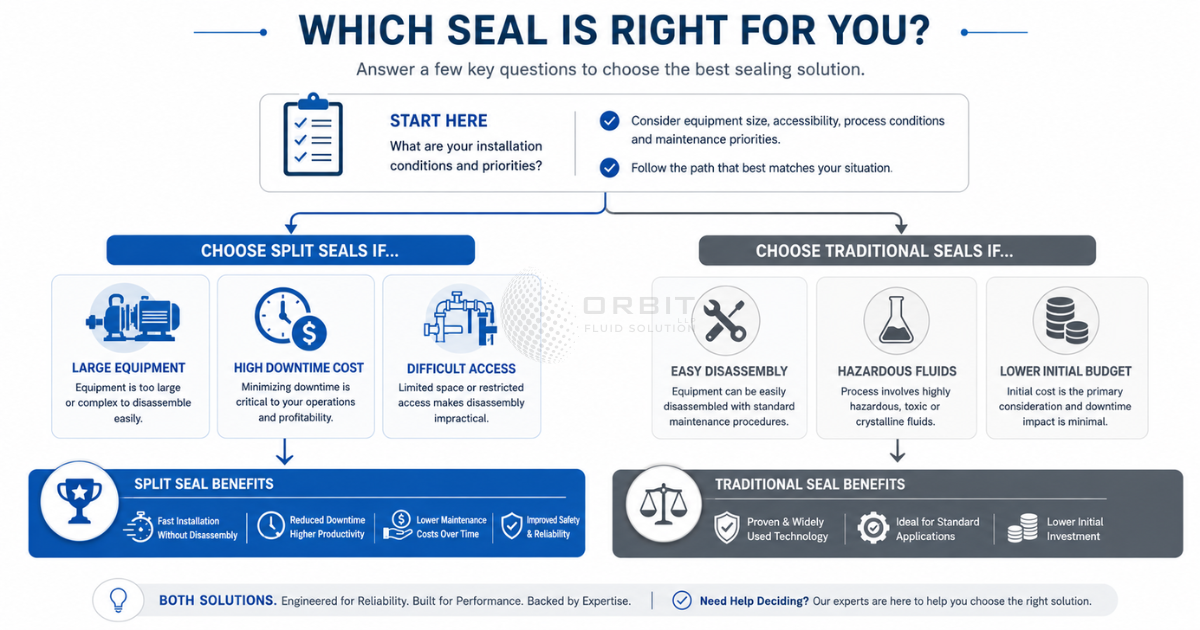

When Should You Choose Split Seals?
Choose split seals when:
- Equipment disassembly is difficult, time-consuming, or expensive
- Downtime costs are high
- Shaft size is large (typically > 65 mm / 2.5 inches)
- You are dealing with large water, wastewater, pulp & paper, or cooling water pumps
- Access is restricted (vertical pumps, confined spaces, etc.)
When Should You Choose Traditional Seals?
Choose traditional (preferably cartridge) seals when:
- The equipment is relatively easy to disassemble
- You are handling hazardous, toxic, or flammable fluids
- Initial purchase cost is a major constraint
- The application is standard and well-supported by cartridge designs
- You want the lowest number of potential leak paths

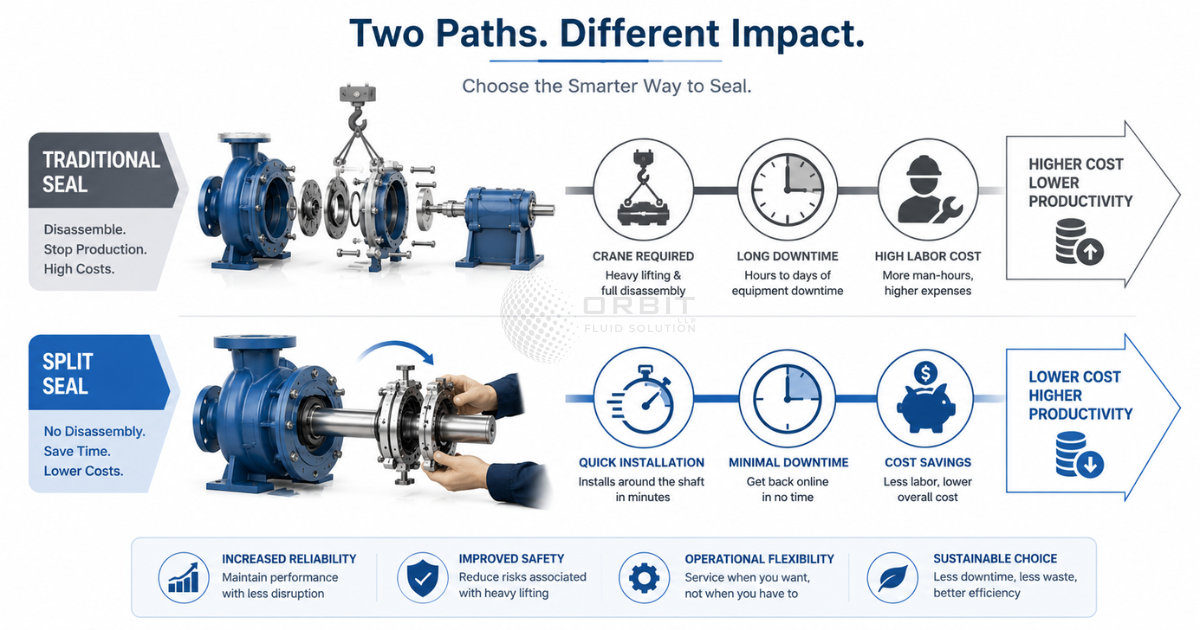

Cost Comparison: Looking Beyond the Purchase Price
A simple example illustrates the difference:
Traditional Seal Replacement
- Seal cost: $1,000
- Labor + disassembly time: $6,000–$10,000+
- Production loss: Variable but often significant
- Total impact: High
Split Seal Replacement
- Seal cost: $2,500–$5,000
- Labor: Much lower (often 2–4 hours)
- Minimal or no major disassembly
- Total impact: Frequently lower despite higher seal price
The break-even point depends heavily on how costly it is to take the equipment apart at your specific plant.
How Orbit Fluid Solution LLP Can Help
At Orbit Fluid Solution LLP, we supply both traditional mechanical seals and modern split seal solutions. Our team helps plants evaluate:
- Actual downtime and labor costs
- Equipment accessibility
- Fluid hazards and regulatory requirements
- Long-term total cost of ownership
We do not push one technology over the other. Instead, we help you select the option that delivers the best reliability and lowest overall cost for your specific equipment and operating conditions.
Match the Seal to the Reality of Your Plant
There is no universal winner between split seals and traditional seals. The right choice depends on the cost and difficulty of equipment disassembly, the nature of the fluid, and the value of uptime at your facility.
- Use split seals when access is difficult and downtime is expensive.
- Use traditional (especially cartridge) seals when disassembly is straightforward or when hazardous fluids demand maximum containment.
Evaluate your real maintenance costs — not just the price of the seal — and choose accordingly.
Need help deciding which seal type is best for a specific pump or mixer in your plant? Contact the team at Orbit Fluid Solution LLP for application-specific guidance.
