The Heart of Every Mechanical Seal

The performance and life of a mechanical seal depend heavily on one critical interface — the seal faces. These two flat, precision-lapped surfaces slide against each other under pressure while maintaining a microscopic lubricating film.

Choosing the wrong face material is one of the most common reasons for premature seal failure. A material that works excellently in clean water can fail quickly in abrasive slurry or aggressive chemicals.

A reliability engineer once shared: “We kept changing seals every few months until we realized the face materials were not suited for our abrasive application. After switching to the right combination, seal life improved dramatically.”

At Orbit Fluid Solution LLP, we help customers understand seal face materials so they can make informed decisions. In this guide, we explain the three most important face materials — Carbon, Silicon Carbide, and Tungsten Carbide — and how to select the right one for your application.

Why Seal Face Materials Matter

Seal faces must balance several demanding requirements:

Excellent wear resistance
Good thermal conductivity (to remove heat)
Chemical compatibility with the process fluid
Ability to maintain flatness under pressure and temperature
Resistance to dry running (to varying degrees)
Cost-effectiveness

No single material is perfect for every application. The right choice depends on the operating conditions.

Carbon Seal Faces

Carbon is one of the oldest and still most widely used seal face materials.

Key Characteristics:

Self-lubricating properties
Excellent ability to run against harder materials
Good performance in clean, lubricating fluids
Relatively low cost
Lower hardness compared to carbides

Advantages:

Forgiving during short dry-running periods
Good in clean water, oils, and many light chemicals
Lower cost than premium carbide faces

Limitations:

Poor resistance to strong abrasives
Can oxidize or degrade at very high temperatures
Not ideal for heavy slurry or highly abrasive services

Best used in:
Clean water, light oils, many food and beverage applications, and as a softer face running against a hard face (e.g., Carbon vs Silicon Carbide).

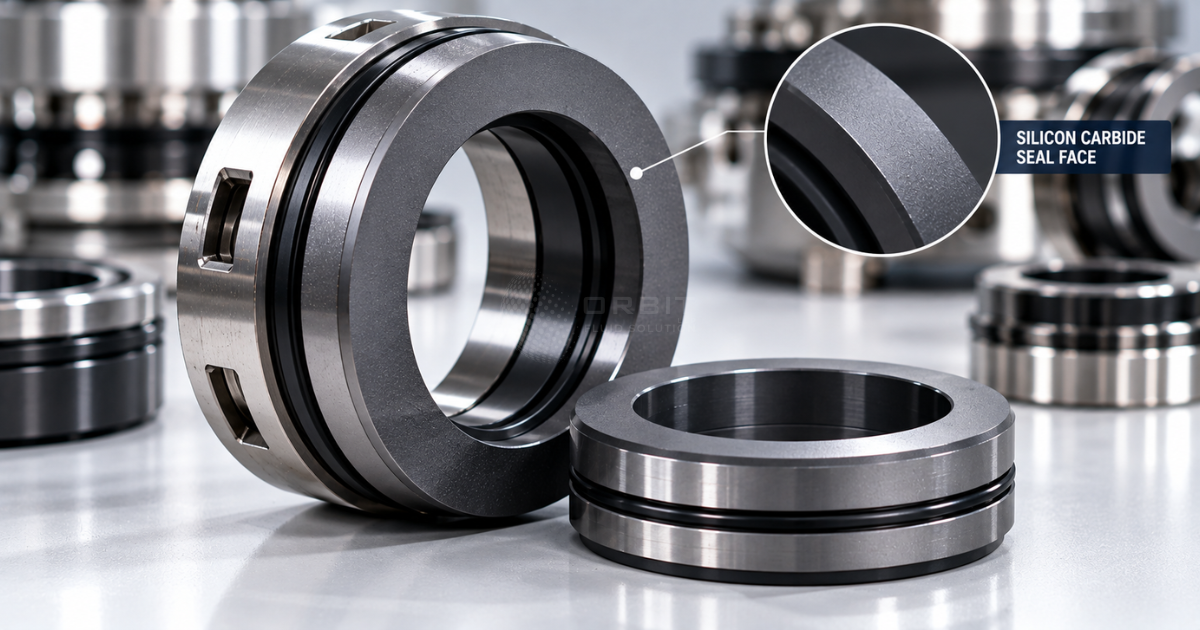

Silicon Carbide Seal Faces

Silicon Carbide (SiC) is one of the most popular premium seal face materials in modern industry.

Key Characteristics:

Extremely hard and wear-resistant
Excellent thermal conductivity
Outstanding chemical resistance
Maintains flatness well under load and temperature

Advantages:

Excellent performance in abrasive services
Superior heat dissipation (reduces risk of thermal cracking)
Wide chemical compatibility
Available in different grades (reaction-bonded, sintered, etc.)

Limitations:

More brittle than tungsten carbide (can chip under extreme impact or thermal shock if not selected properly)
Higher cost than carbon

Best used in:
Abrasive applications, chemical processing, high-temperature services, and as hard face vs hard face (SiC vs SiC) for demanding duties.

Tungsten Carbide Seal Faces

Tungsten Carbide (WC) is known for its exceptional toughness and strength.

Key Characteristics:

Very high hardness and toughness
Excellent resistance to mechanical damage
Good wear resistance
Higher density and strength than silicon carbide

Advantages:

Highly resistant to chipping and impact
Excellent for high-pressure applications
Good performance in slurry and abrasive services
Strong under mechanical stress

Limitations:

Lower thermal conductivity than silicon carbide (can run hotter)
Can be attacked by certain strong chemicals (depending on binder used)
Generally more expensive

Best used in:
High-pressure applications, heavy slurry services, and situations where mechanical toughness is critical.

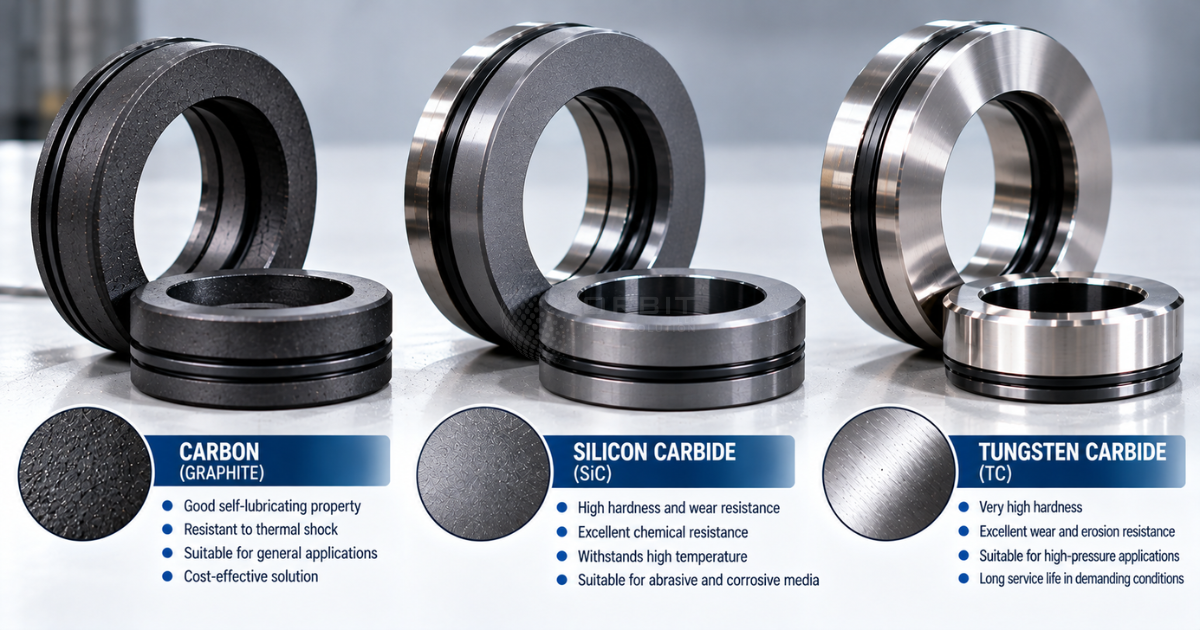

Comparison: Carbon vs Silicon Carbide vs Tungsten Carbide

Property	Carbon	Silicon Carbide (SiC)	Tungsten Carbide (WC)
Hardness	Low	Very High	Very High
Wear Resistance	Moderate	Excellent	Excellent
Thermal Conductivity	Moderate	Excellent	Good
Toughness / Impact Resistance	Good	Moderate (can be brittle)	Excellent
Chemical Resistance	Good (limited in some chemicals)	Excellent	Good to Very Good
Dry Running Capability	Better	Moderate	Moderate
Cost	Low	Medium to High	High
Typical Use	Clean fluids	Abrasive & chemical	High pressure & slurry

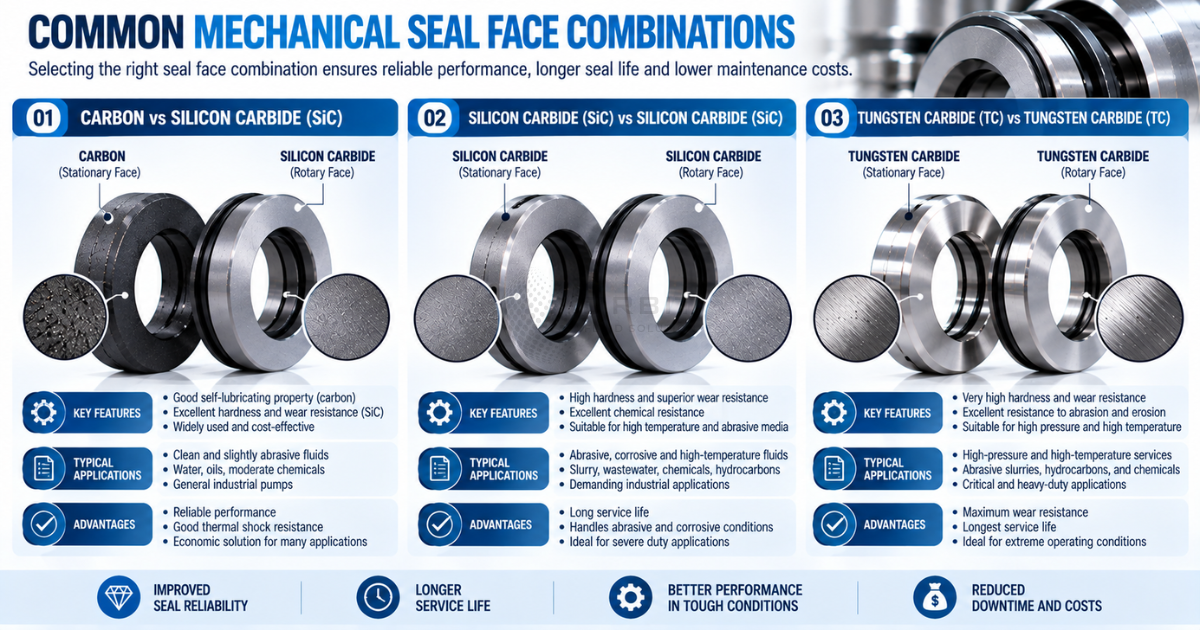

Common and Recommended Face Combinations

- - Carbon vs Silicon Carbide → Most common combination for general-purpose and clean-to-moderately demanding applications
  - Silicon Carbide vs Silicon Carbide → Excellent for abrasive, chemical, and high-duty services
  - Tungsten Carbide vs Tungsten Carbide → Preferred for high-pressure and tough mechanical conditions
  - Carbon vs Tungsten Carbide → Used in specific applications where toughness and self-lubrication are needed
  The combination is often more important than the individual material.

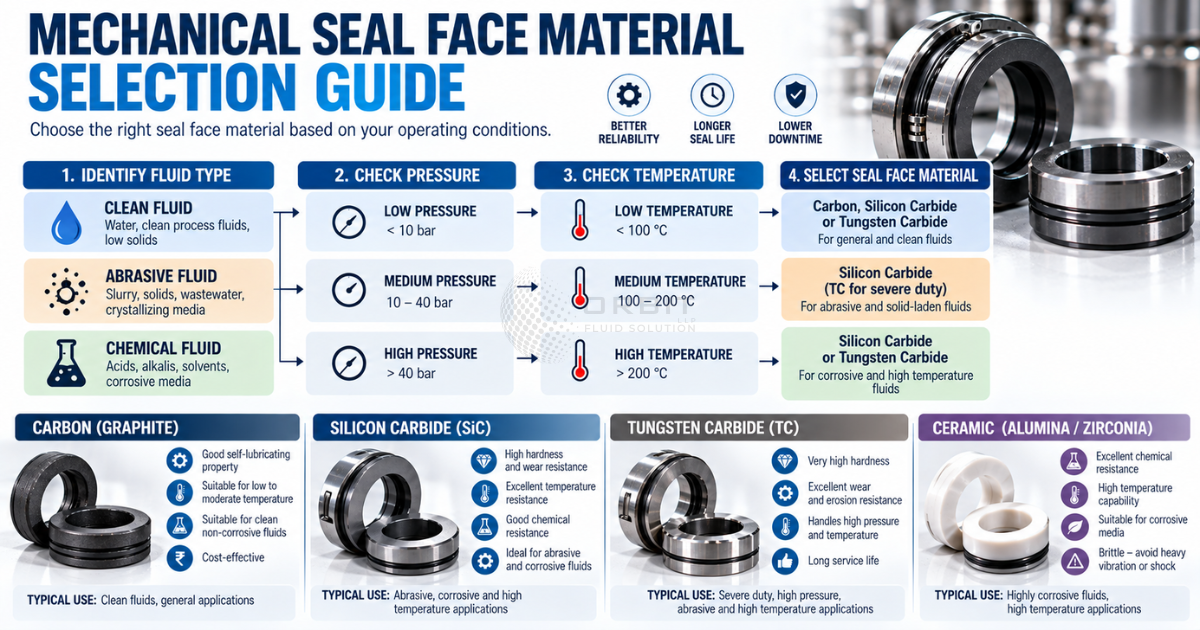

How to Select the Right Seal Face Material

1. Is the fluid clean or abrasive?
  - Clean → Carbon vs SiC is often sufficient
  - Abrasive → SiC vs SiC or WC-based combinations
2. What is the pressure level?
  - High pressure → Prefer balanced seals with hard faces (SiC or WC)
3. What is the chemical environment?
  - Aggressive chemicals → Silicon Carbide is usually preferred
4. Is there risk of dry running?
  - Higher risk → Carbon as one face can offer more forgiveness
5. What is the temperature range?
  - High temperature → Materials with good thermal conductivity (especially SiC) help

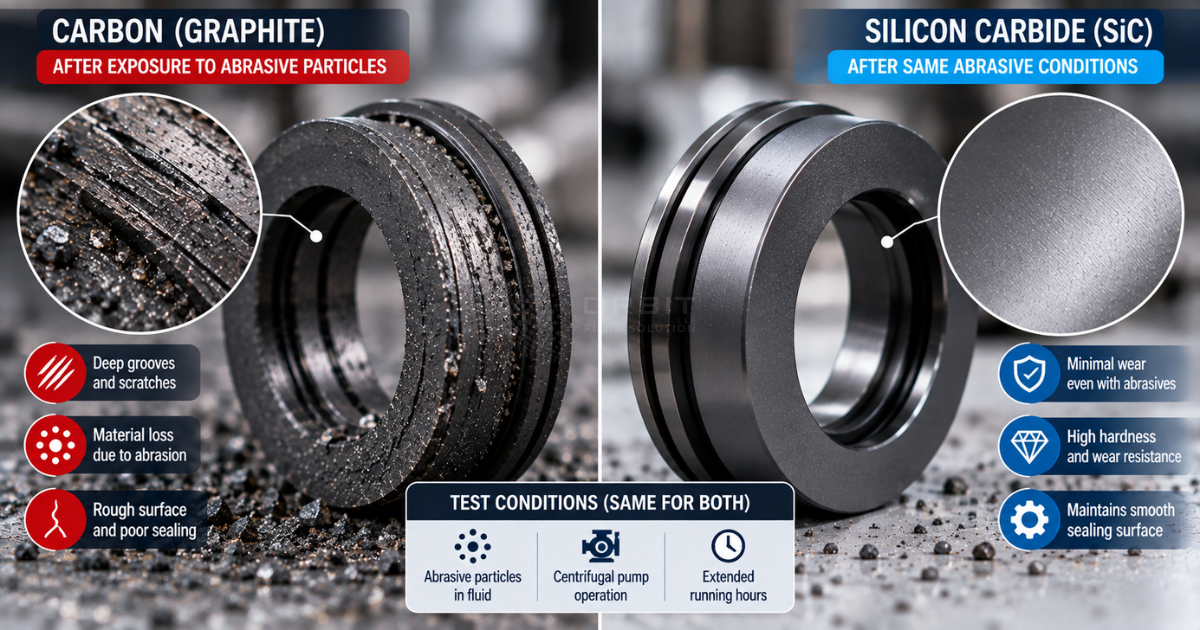

Solving Abrasion-Related Failures with Better Face Materials

A wastewater treatment plant was experiencing seal life of only 3–4 months on sludge pumps. The original seals used a standard carbon vs ceramic combination.

Solution by Orbit Fluid Solution LLP:

Changed to Silicon Carbide vs Silicon Carbide faces
Applied an effective clean water flush
Upgraded to a robust cartridge design

Results:

Seal life increased to more than 16 months
Significant reduction in maintenance frequency and cost
Improved pump reliability

This case shows how the right face material selection can transform performance in abrasive services.

Best Practices for Seal Face Material Selection

Never select face materials based only on cost
Always consider the most severe condition the seal will face
Match the face combination to both the process fluid and the flush fluid
Consult material compatibility data and experienced seal suppliers
Document what works (and what fails) in your specific applications

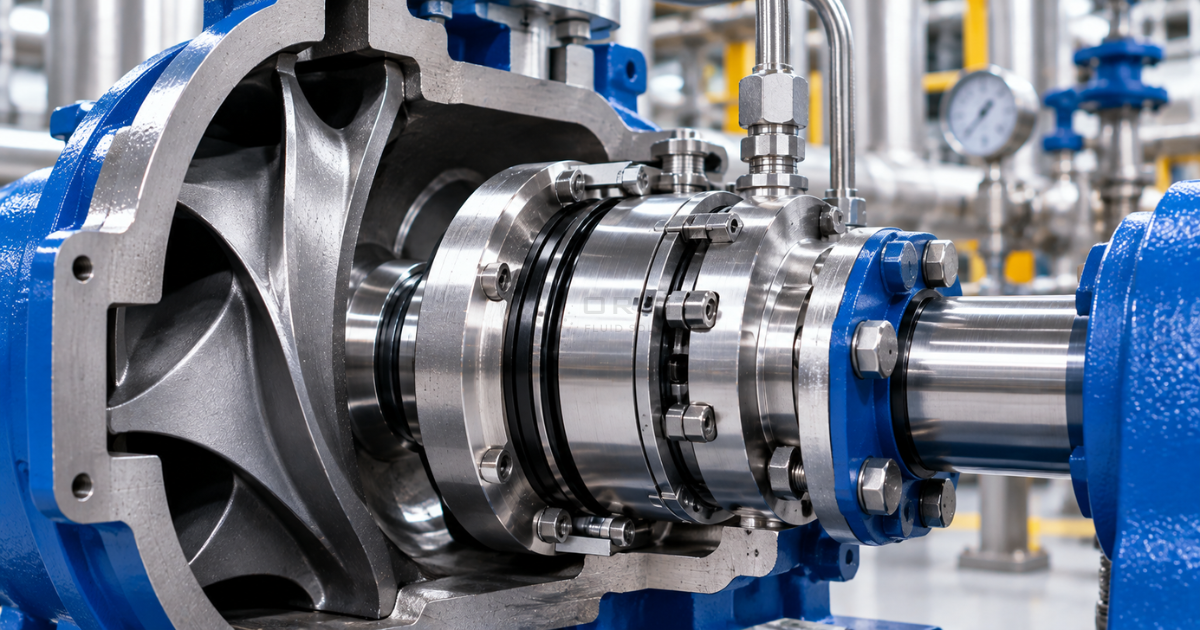

For critical equipment, invest in premium face materials — the ROI is usually clear

How Orbit Fluid Solution LLP Helps with Face Material Selection

At Orbit Fluid Solution LLP, we help customers choose the optimal seal face materials by:
- Analyzing the actual operating conditions
- Recommending proven face combinations (Carbon, SiC, WC)
- Supplying high-quality faces in cartridge and component seals
- Providing application engineering support
- Helping troubleshoot material-related failures
Our goal is to match the face materials to your real-world conditions for maximum reliability.

Right Faces Deliver Right Performance

Understanding seal face materials — Carbon, Silicon Carbide, and Tungsten Carbide — is essential for anyone responsible for mechanical seal performance.

Carbon offers self-lubrication and cost-effectiveness for cleaner services.
Silicon Carbide provides excellent wear resistance, thermal conductivity, and chemical durability.
Tungsten Carbide delivers outstanding toughness for high-pressure and severe mechanical conditions.

The best results come from selecting the right material combination for your specific application, rather than using a one-size-fits-all approach.

At Orbit Fluid Solution LLP, we help industries make these material decisions with confidence.

Need help selecting the right seal face materials for your application? Contact our technical team today for expert guidance.
