Why Cartridge Mechanical Seals Are Better for Easy Maintenance

The Maintenance Team’s Best Friend

Ask any experienced maintenance technician what causes most mechanical seal failures, and one answer comes up repeatedly: incorrect installation.

A maintenance supervisor at a process plant once shared: “We used to spend hours assembling component seals. One small mistake in setting the spring compression or face alignment and the seal would fail within weeks. After we switched to cartridge seals, installation became faster, simpler, and much more reliable.”

This experience is common across industries. Cartridge mechanical seals were developed specifically to solve the problems associated with traditional component seals — especially installation errors, time consumption, and inconsistent performance.

At Orbit Fluid Solution LLP, we strongly recommend cartridge seals for most modern applications because of the clear advantages they offer to maintenance teams. In this guide, we explain why cartridge mechanical seals are better for easy maintenance and how they can transform your sealing reliability.

What Are Cartridge Mechanical Seals?

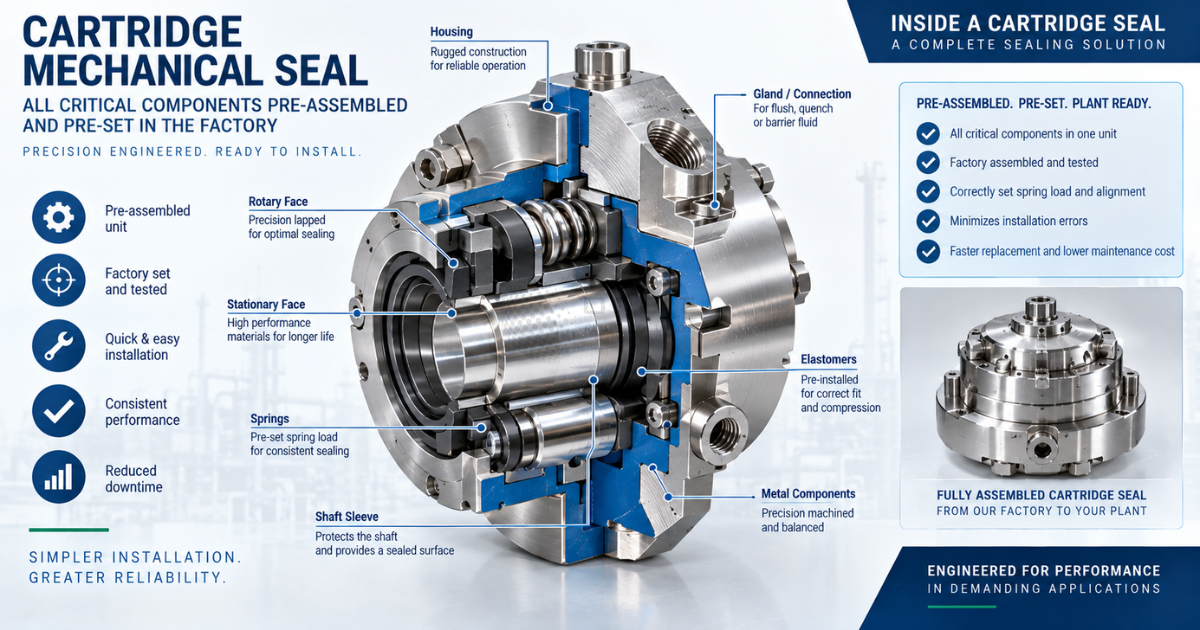

A cartridge mechanical seal is a completely pre-assembled, self-contained unit. All the critical components — seal faces, springs, elastomers, sleeve, and gland — are factory-assembled and set to the correct working length.

When you receive a cartridge seal, it is ready to install as a single unit. There is no need to assemble individual parts on the pump shaft.

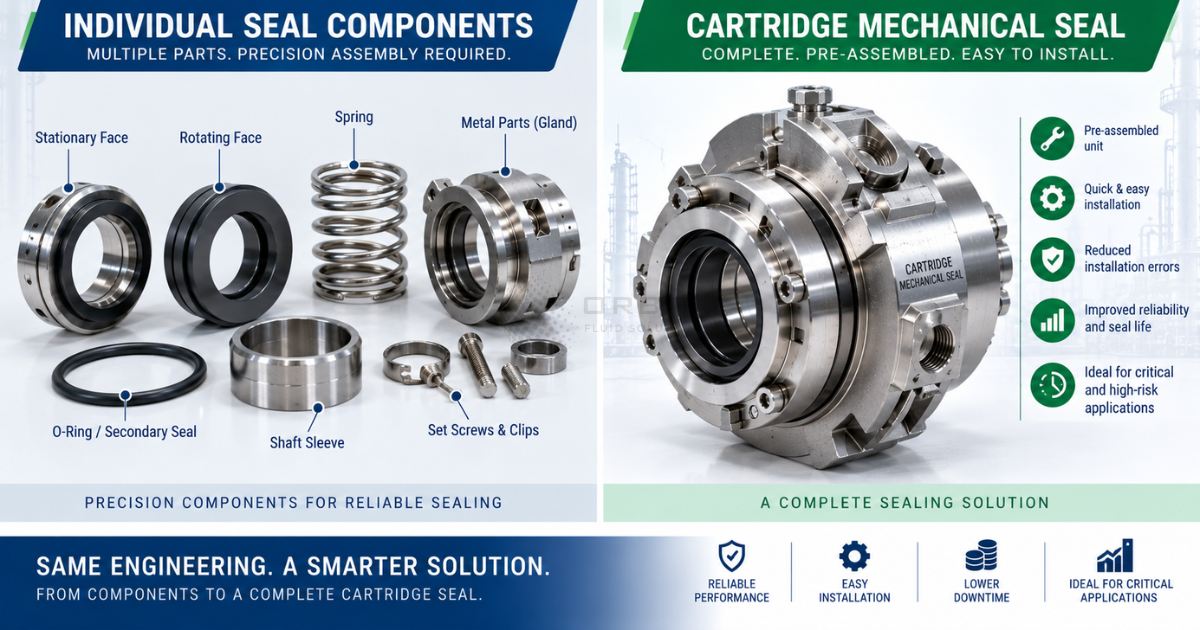

Cartridge Seals vs Component Seals: The Key Difference

Component Seals:

Supplied as individual parts (faces, springs, O-rings, etc.)
Must be assembled on-site by the technician
Require precise measurement and setting of working length
Higher chance of installation errors

Cartridge Seals:

Fully assembled at the factory
Pre-set to the correct dimensions
Installed as one complete unit
Significantly lower risk of assembly mistakes

This fundamental difference is why cartridge seals are preferred for easy and reliable maintenance.

Why Cartridge Seals Reduce Installation Errors

Most premature seal failures are not caused by the seal design itself, but by mistakes during installation. Common errors with component seals include:

Incorrect spring compression
Wrong working length
Damaged faces during assembly
Improper elastomer installation
Misalignment of components

Cartridge seals eliminate most of these risks because:

The critical settings are done in controlled factory conditions
Faces are protected until installation
No on-site assembly of delicate parts is required
The unit is designed to fit correctly when installed according to instructions

For maintenance teams, this means higher confidence and more consistent results.

Major Benefits of Cartridge Mechanical Seals for Maintenance Teams

1. Faster Installation

What used to take hours with component seals can often be done in a fraction of the time with cartridge seals.

2. Reduced Skill Dependency

Even less experienced technicians can install cartridge seals correctly with basic training.

3. Higher Reliability

Fewer installation errors lead to longer seal life and fewer unexpected failures.

4. Easier Inventory Management

One complete unit instead of multiple small components.

5. Safer Handling

Seal faces are protected inside the cartridge until the unit is installed.

6. Better for Large or Difficult Pumps

Especially valuable when working in confined spaces or on large equipment.

Time and Cost Savings

Although cartridge seals usually have a higher purchase price than component seals, they often deliver lower total cost of ownership because of:

Reduced installation labor hours
Fewer installation-related failures
Less rework and emergency breakdowns
Shorter equipment downtime during seal changes

In many plants, the labor and downtime savings alone justify the move to cartridge seals.

When Cartridge Seals Deliver the Biggest Advantage

1. Cartridge seals are particularly valuable in these situations:
  - Plants with limited specialized seal-fitting expertise
  - Critical equipment where reliability is paramount
  - Large pumps where installation is difficult
  - Remote locations where mistakes are costly
  - Facilities aiming to standardize maintenance practices
  - Applications with frequent seal changes
  Even in simpler applications, many plants now prefer cartridge seals for consistency.

Reducing Seal Failures Through Cartridge Conversion

1. A mid-sized process plant was experiencing high variability in seal life. Some seals lasted over a year, while others failed within weeks — mostly due to installation inconsistencies.
  Solution by Orbit Fluid Solution LLP:
  - Converted critical pumps from component seals to cartridge mechanical seals
  - Provided simple installation training
  - Standardized the seal type across similar pumps
  Results:
  - Installation time reduced by more than 50%
  - Installation-related failures almost eliminated
  - Average seal life became much more consistent
  - Maintenance team reported higher confidence and lower stress

Best Practices When Using Cartridge Mechanical Seals

1. Always follow the manufacturer’s installation instructions
2. Check shaft and stuffing box condition before installation
3. Ensure proper alignment of the pump and motor
4. Do not remove the setting clips until the seal is fully installed
5. Keep spare cartridge seals properly stored and protected
6. Train the team on the specific cartridge design being used
Even though cartridge seals are easier, correct procedures still matter.

How Orbit Fluid Solution LLP Supports Cartridge Seal Users

At Orbit Fluid Solution LLP, we offer a wide range of cartridge mechanical seals designed for easy maintenance and high reliability. Our support includes:
- Application-based cartridge seal selection
- Single and double cartridge designs
- Clear installation guidance and documentation
- Training support for maintenance teams
- Technical assistance during conversion from component to cartridge seals
We help plants make the transition smoothly and gain the full benefits of cartridge technology.

Easier Maintenance, Better Reliability

Cartridge mechanical seals are better for easy maintenance because they remove most of the risks and complexity associated with traditional component seals.
They offer faster installation, fewer errors, more consistent performance, and lower total cost of ownership in the majority of industrial applications. For maintenance teams under pressure to improve reliability and reduce downtime, cartridge seals are one of the most effective upgrades available.
At Orbit Fluid Solution LLP, we help industries make this upgrade with confidence.
Ready to simplify seal maintenance and improve reliability in your plant? Contact our team today to explore the right cartridge mechanical seal solutions for your applications.
